Sony UP-895 - Page 57

8-3
UP-895/(E)

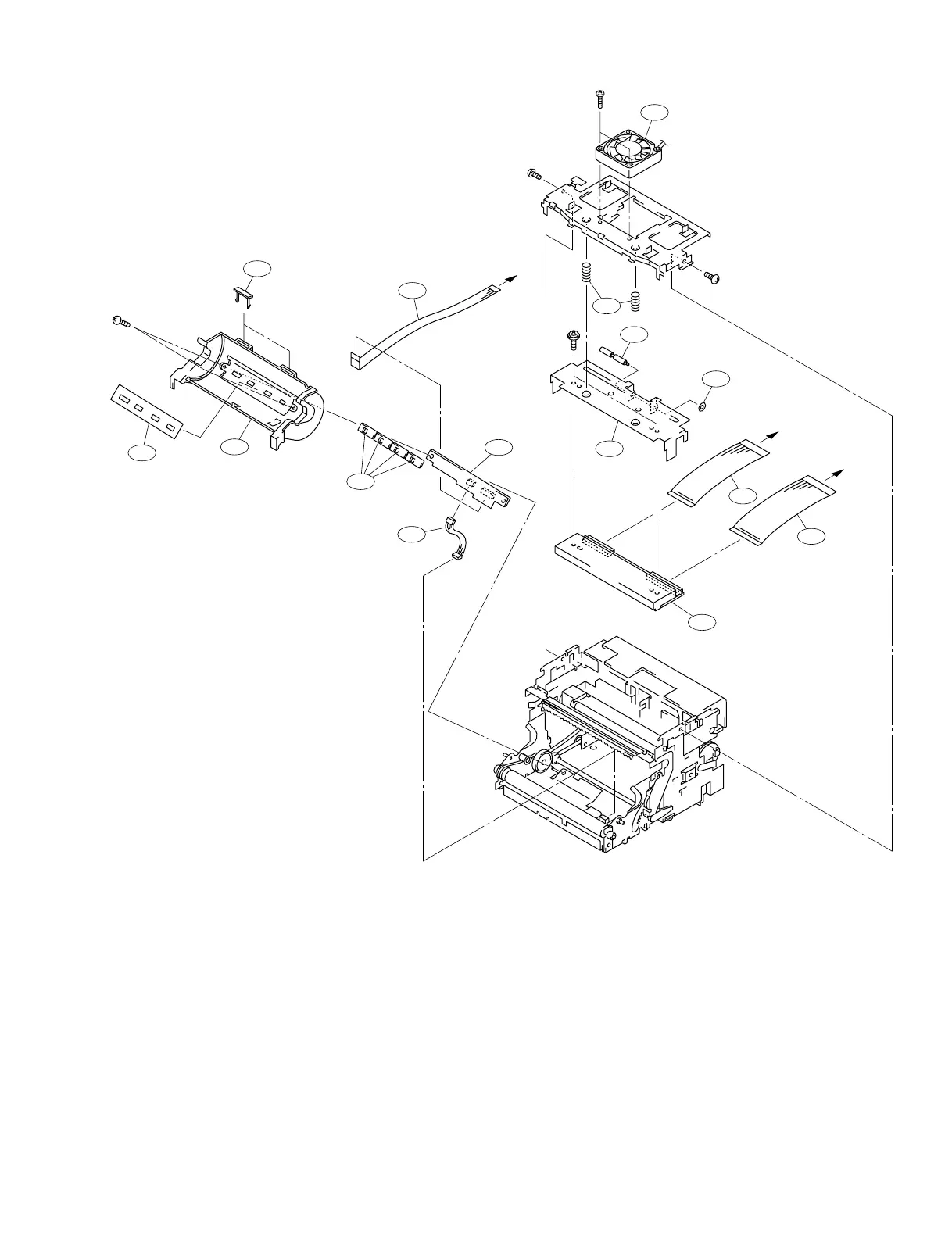

Head Block
TO
MA-99 BOARD
CN9
BVTT 3x6
PTT 3x10
BVTT 3x6
PSW
3x6
BVTT 3x6
105
104
102
109
114
108
101
110
115
113
107
103
111
112
106
TO
MA-99 BOARD
CN13
TO
MA-99 BOARD
CN3
101 A-8323-915-A o MOUNTED CIRCUIT BOARD, KY-454
102 X-3605-752-1 o ASSY,PAPER TRAY
103 1-251-855-11 s HEAD, THERMAL (LVE6413SS)
104 1-763-007-21 o FAN, DC (OPTION)
105 1-792-200-11 o WIRE, FLAT TYPE (8 CORE)
106 1-792-201-11 o WIRE, FLAT TYPE (26 CORE)
107 1-792-202-11 o WIRE, FLAT TYPE (30 CORE)
108 1-960-221-11 o HARNESS, SUB (3P)
109 3-623-867-02 o SEAT,SWITCH
110 3-623-890-01 s HEAT SINK
No. Part No. SP Description No. Part No. SP Description
111 3-623-899-01 s SPRING,COMPRESSION
112 3-623-908-02 s COVOR,SWITCH
113 3-623-924-02 o SHAFT,HEAD FULCRUM
114 3-624-816-01 s STOPPER,ROLL
115 4-926-219-02 s RING (DIA.2.3), RETAINING
