Sony UP-895 - Removal of Thermal Head

2-4
UP-895/(E)

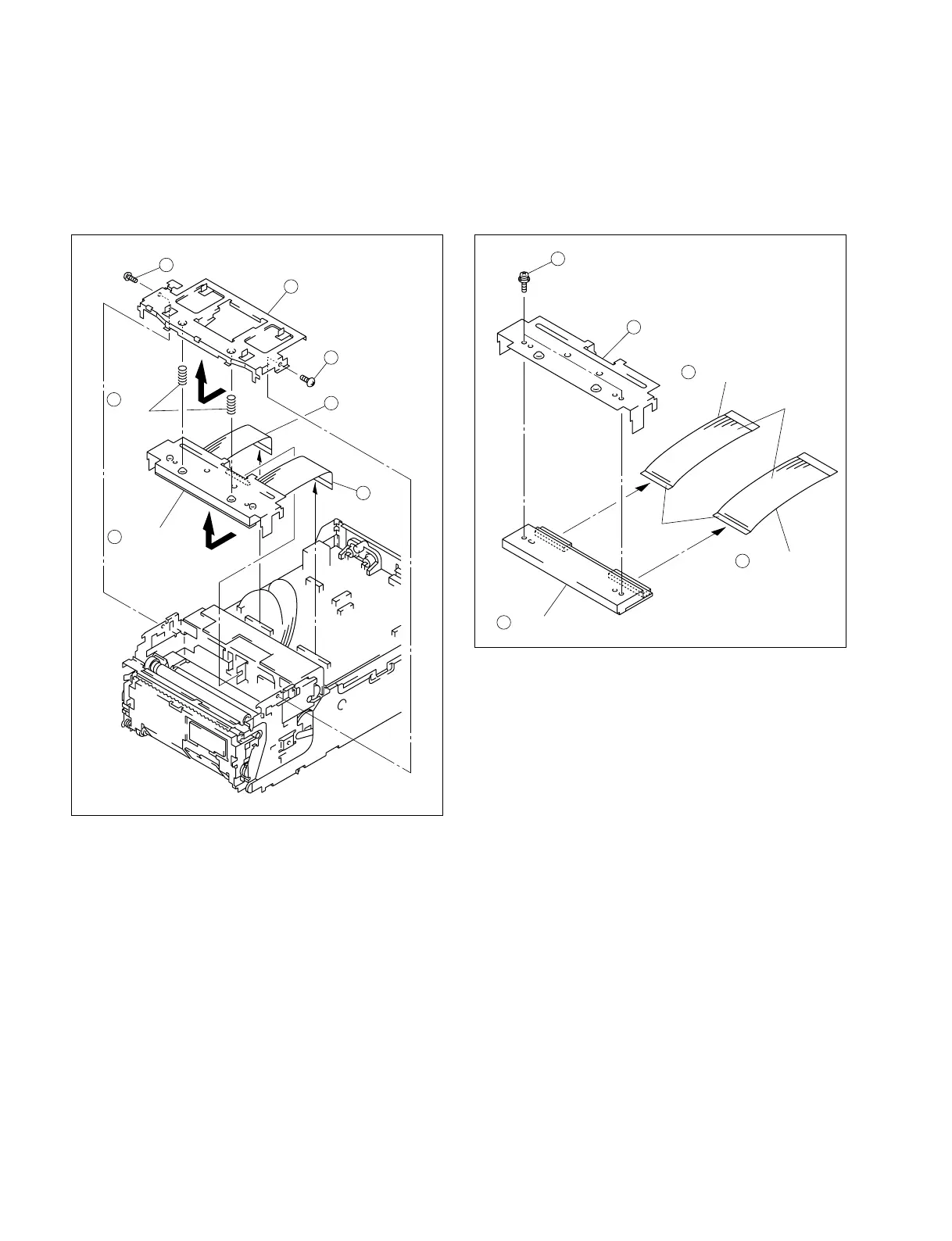

2-3-4. Removal of Thermal Head
1. Remove the top cover. (Refer to Section 2-2.)
2. Remove the front panel and power switch rod. (Refer
to Section 2-3-1.)
3
Spring
compression
1
Screw (BVTT 3x6)
2
Top chassis
1
Screw
(BVTT 3x6)
4
CN13
4
CN9
5
Head
assembly
2
Screws (PSW 3x6)
3
Heat sink
1
Flat type wire (26 core)
Printing side
Contact
1
Flat type wire
(30 core)
4
Thermal head
