Sony UP-895 - Page 59

8-5
UP-895/(E)
TO
MA-99 BOARD
CN2
TO
MA-99 BOARD
CN7
TO
MA-99 BOARD
CN8
BVTT 3x6
BVTT 3x6
BVTT 3x6
BVTT
3x6
BVTT
3x6
PS 3x6
PS
3x6
320
324
324
324
320
321
301
306
308
312
307
304
302
303
323
305
313
311
314
318
315
310
322
317
309
309
317
319
316

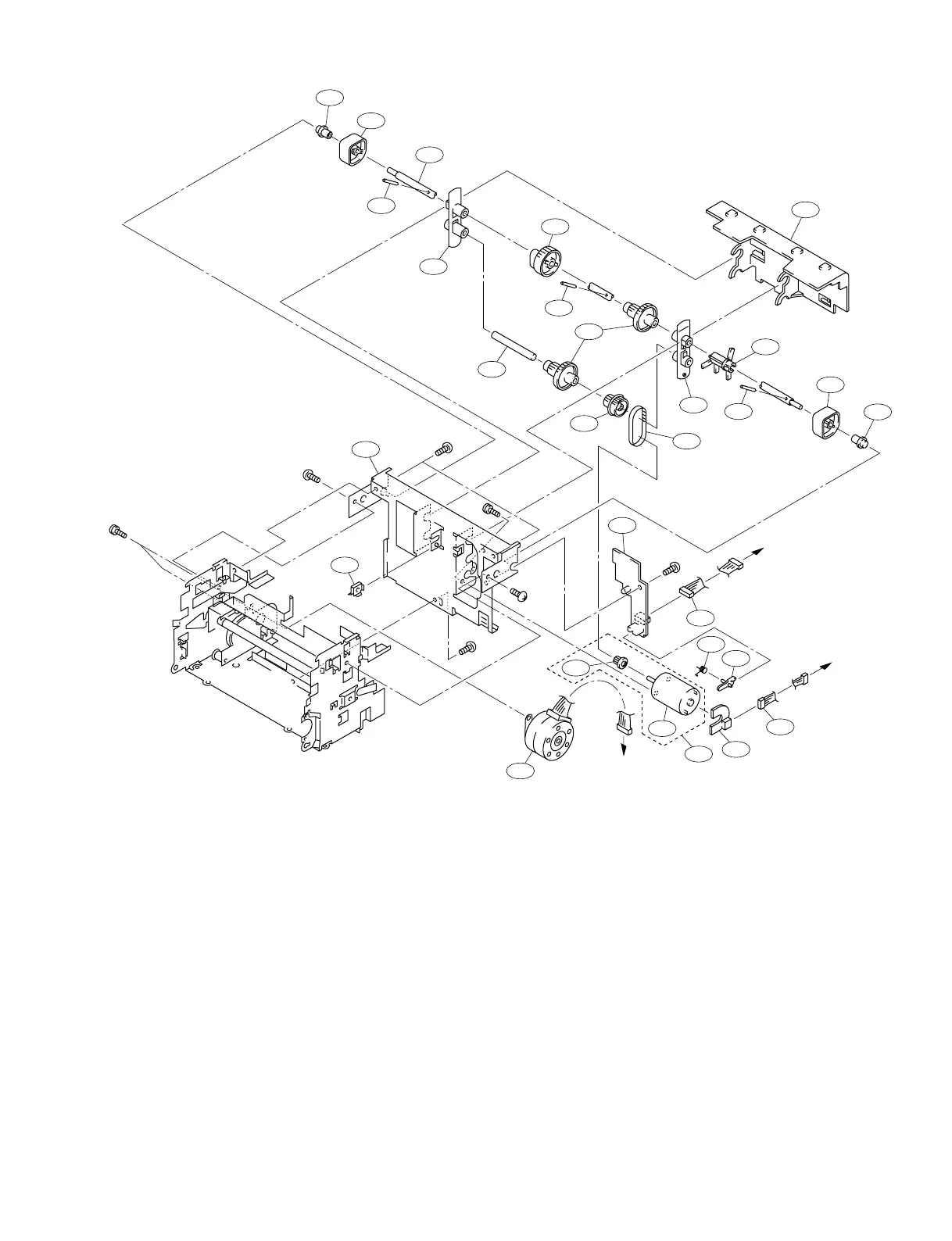

Rear Chassis Block
301 A-8323-916-A o MOUNTED CIRCUIT BOARD, SE-531
302 X-3605-682-1 s MOTOR ASSY
303 1-541-309-11 s MOTOR,(RF-370C)(DC)(2.59W)
304 1-676-696-11 o PRINTED WIRING BOARD, SU-52
305 1-698-928-22 s MOTOR, STEPPING
306 1-960-220-11 o HARNESS, SUB (6P)
307 1-960-222-11 o HARNESS, SUB (2P)
308 3-613-740-01 s SPRING,HELICAL TORSION A
309 3-613-781-01 s COVER,CENTER SHAFT
310 3-623-868-01 o COVER,GEAR
No. Part No. SP DescriptionNo. Part No. SP Description
311 3-623-886-02 o CHASSIS,REAR
312 3-623-910-01 s LEVER,DOOR SENSOR
313 3-623-922-01 o COVER,FULCRUM PLATE
314 3-623-925-02 s GEAR,HEAD DRIVE
315 3-623-926-02 s PULLY,HEAD DRIVE
316 3-623-927-01 s CAM,PRESS ROLLER
317 3-623-928-02 s CAM,HEAD
318 3-623-929-01 o SHAFT,DRIVE GEAR
319 3-623-930-01 o SHAFT,HEAD CAM
320 3-623-931-02 s BEARING,REAR(POM)
321 3-623-932-01 s BELT,70TN10-3.5(PUR)
322 3-623-933-01 s FIN,HEAD SENSOR
323 3-683-773-04 s GEAR,PAPER MOTOR
324 3-703-357-07 s PIN PARALLEL (1.6X10) (STEEL)
