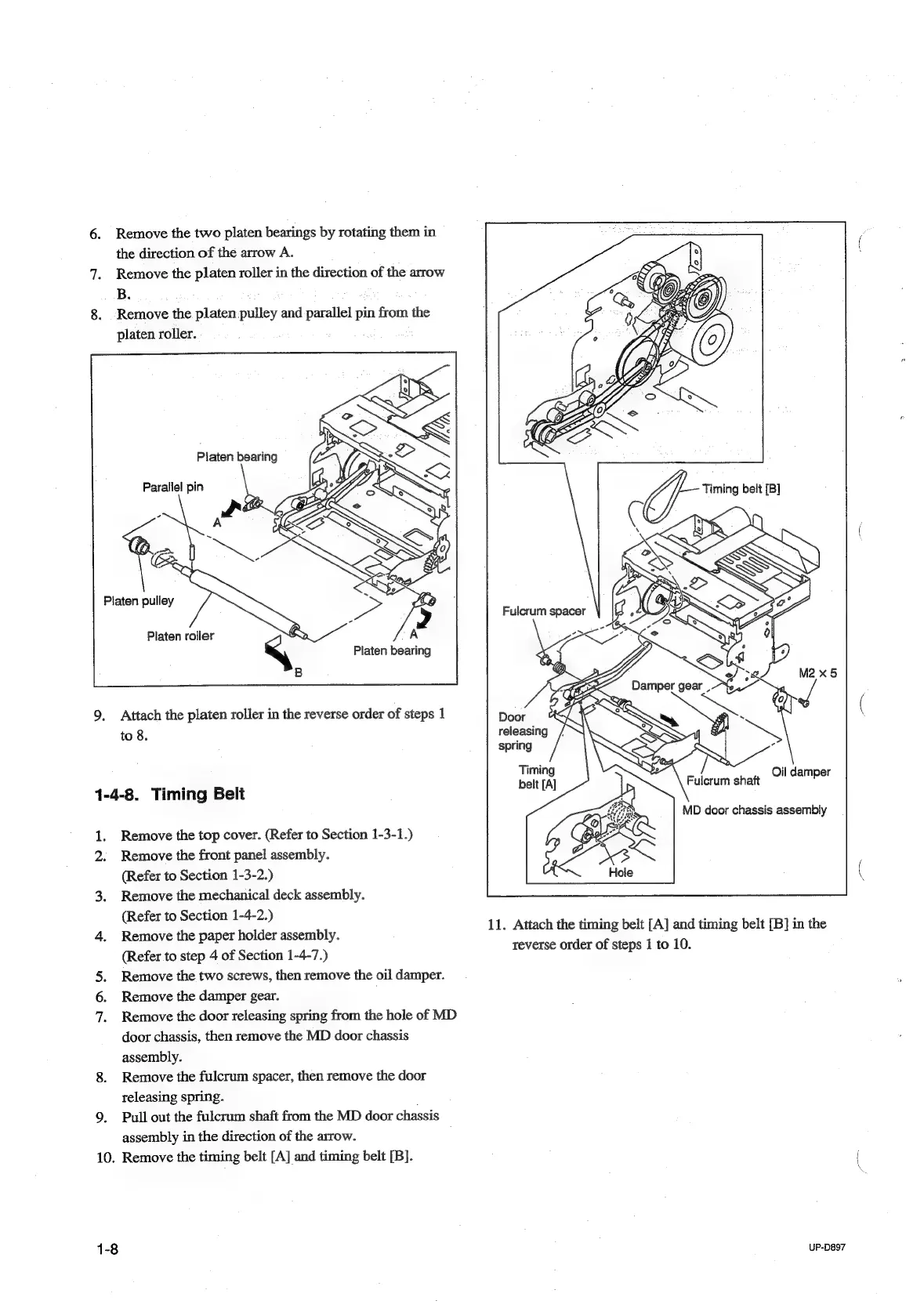

Sony UP-D897 - 1-4-8. Timing Belt

6. Remove the two platen bearings by rotating them in
the direction of the arrow A.
7. Remove the platen roller in the direction of the arrow
B.
8. Remove the platen pulley and -parallel pin from the
platen roller.
Platen pulley
Platen roller
9. Attach the platen roller in the reverse order of steps 1
to
8.
releasing
Timing bo ; i
belt [A] Fulcrum shaft ll al
1-4-8. Timing Belt
Remove the top cover. (Refer to Section 1-3-1.)
Remove the front panel assembly.
(Refer to Section 1-3-2.)
3. Remove the mechanical deck assembly.
(Refer to Section 1-4-2.)
4. Remove the paper holder assembly.
(Refer to step 4 of Section 1-4-7.)
5. Remove the two screws, then remove the oil damper.
6. Remove the damper gear.
7. Remove the door releasing spring from the hole of MD
door chassis, then remove the MD door chassis
assembly.
8. Remove the fulcrum spacer, then remove the door
releasing spring.
9. Pull out the fulcrum shaft from the MD door chassis
assembly in the direction of the arrow.
10. Remove the timing belt [A] and timing belt [B].
or
11. Attach the timing belt [A] and timing belt [B] in the
reverse order of steps 1 to 10.
