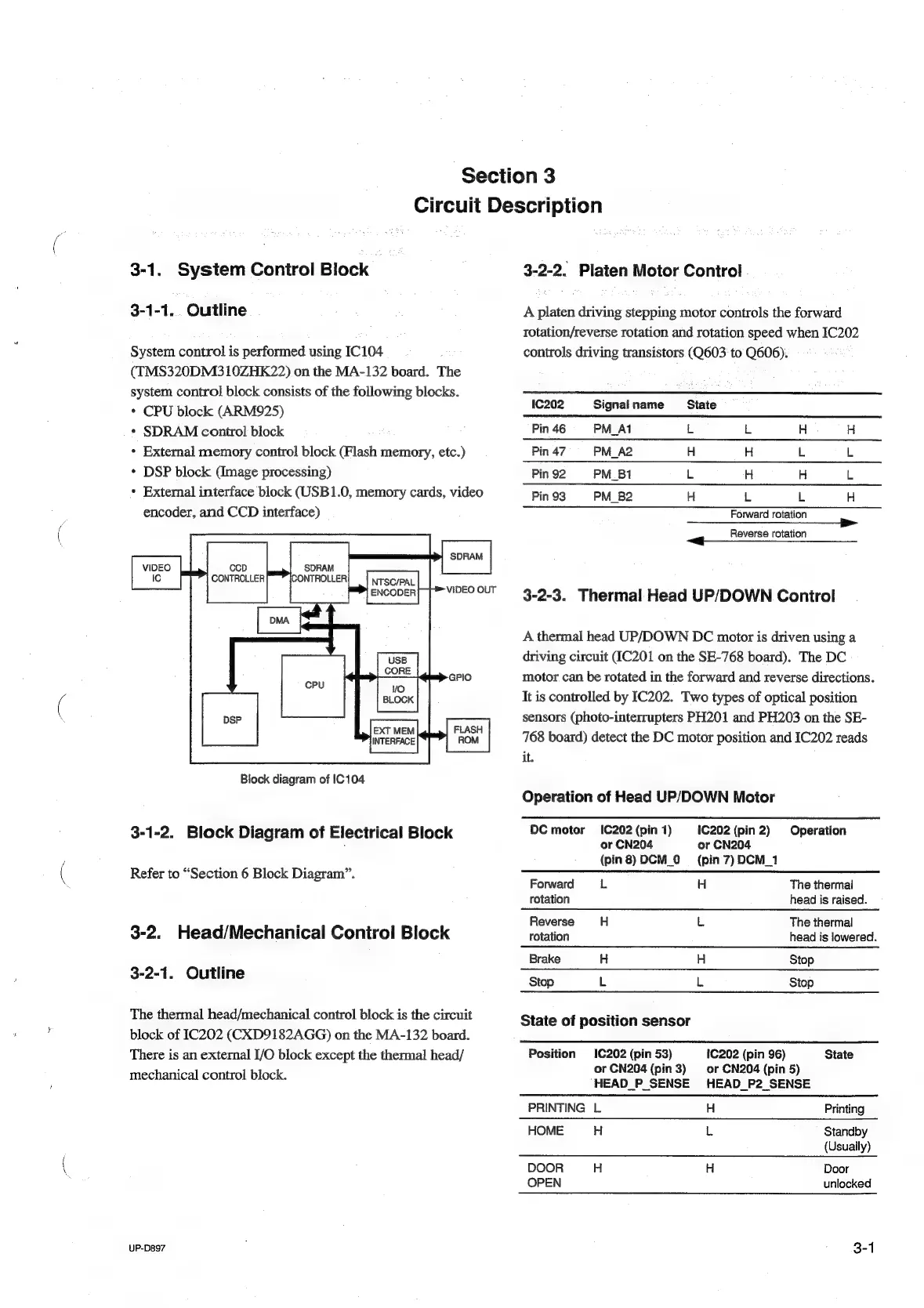

Section
3
Circuit
Description
3-1.
System
Control
Block
|
3-1-1..
Outline
System
control
is
performed
using
IC104
(TMS320DM310ZHK22)
on
the
MA-132
board.
The
system
control
block
consists
of
the
following
blocks.
*
CPU
block
(ARM925)
*
SDRAM
control
block
*
External
memory
control
block
(Flash
memory,
etc.)
*
DSP
block
(Image
processing)
*
External
interface
block
(USB1.0,
memory
cards,
video
encoder,
and
CCD
interface)
ENCODER
&
NTSC/PAL
|
INTERFACE
Block
diagram
of
IC
104
3-1-2.
Block
Diagram
of
Electrical
Block
Refer
to
“Section
6
Block
Diagram”.
3-2.
Head/Mechanical
Control
Block
3-2-1.
Outline
The
thermal
head/mechanical
control
block
is
the
circuit
block
of
IC202
(CXD9182AGG)
on
the
MA-132
board.
There
is
an
external
I/O
block
except
the
thermal
head/
mechanical
control
block.
UP-D897
3-2-2.
Platen
Motor
Control
A
platen
driving
stepping
motor
controls
the
forward
rotation/reverse
rotation
and
rotation
speed
when
IC202
controls
driving
transistors
(Q603
to
Q606).
1C202
Signalname
State
Pin
46
PM_A1
L
H H
Pin
47
PM_A2
H
H
L
L
Pin
92
PM_B1
L
H
H
L
Pin93
PM
_B2
H
L
L
H
Forward
rotation
Reverse
rotation
3-2-3.
Thermal
Head
UP/DOWN
Control
A
thermal
head
UP/DOWN
DC
motor
is
driven
using
a
driving
circuit
C201
on
the
SE-768
board).
The
DC
motor
can
be
rotated
in
the
forward
and
reverse
directions.
It
is
controlled
by
IC202.
Two
types
of
optical
position
sensors
(photo-interrupters
PH201
and
PH203
on
the
SE-
768
board)
detect
the
DC
motor
position
and
C202
reads
it.
Operation
of
Head
UP/DOWN
Motor
DC
motor
[C202
(pin
1)
1C202
(pin
2)
Operation
or
CN204
or
CN204
(pin
8)
DCM_0
=
(pin
7)
DCM_1
Forward
L
H
The
thermal
rotation
head
is
raised.
Reverse
H
L
The
thermal
rotation
head
is
lowered.
Brake
H H
Stop
Stop
L L
Stop
State
of
position
sensor
Position
10202
(pin
53)
IC202
(pin
96)
State
or
CN204
(pin
3)
or
CN204
(pin
5)
HEAD
P
SENSE
HEAD_P2_SENSE
PRINTING
L
H
Printing
HOME
H
L
Standby
(Usually)
DOOR
H
H
Door
OPEN
unlocked
3-1
