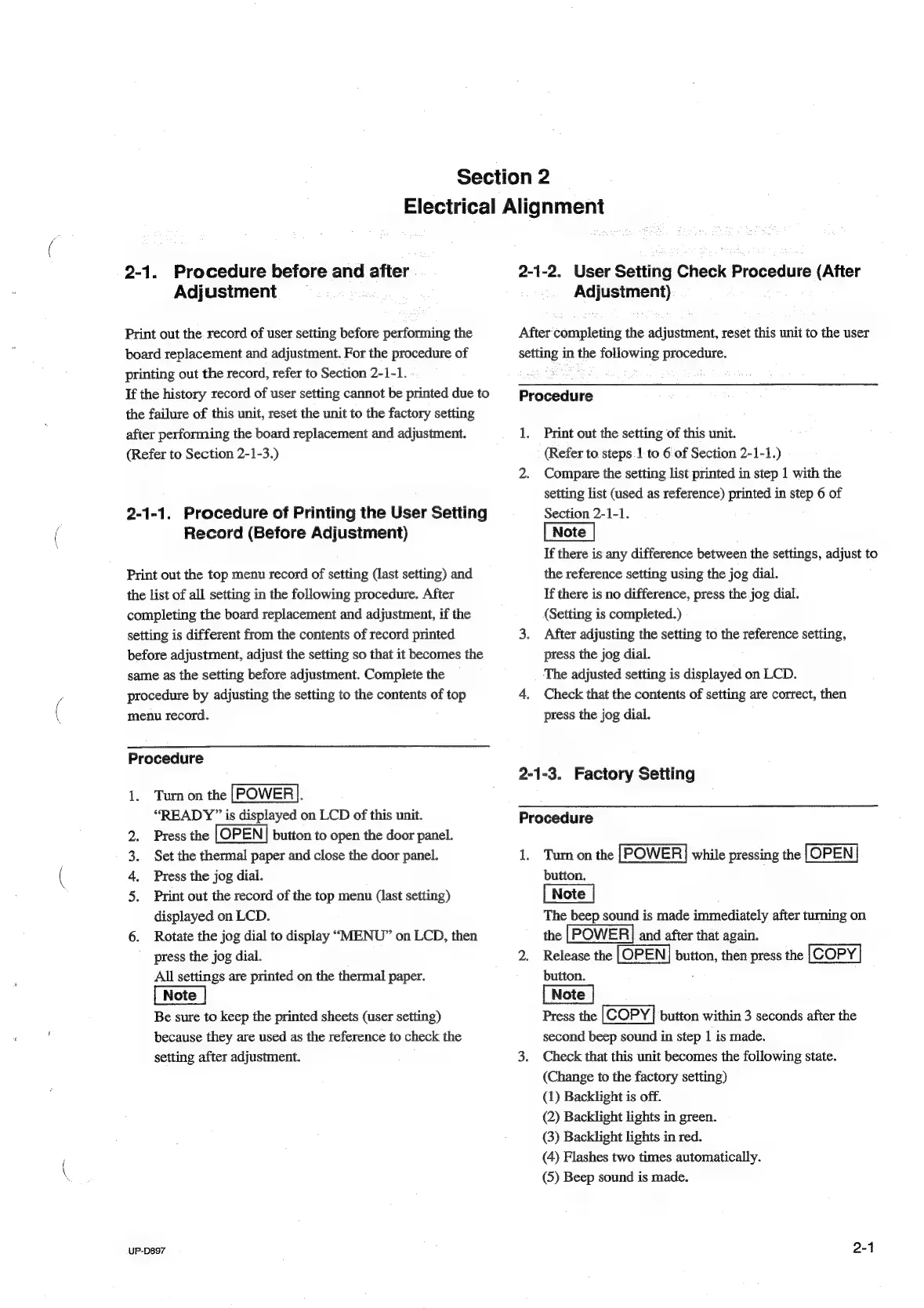

Section 2
Electrical Alignment
Procedure before and after
Adjustment
2-1.
Print out the record of user setting before performing the
board replacement and adjustment. For the procedure of
printing out the record, refer to Section 2-1-1.
If the history record of user setting cannot be printed due to
the failure of this unit, reset the unit to the factory setting
after performing the board replacement and adjustment.
(Refer to Section 2-1-3.)
2-1-1. Procedure of Printing the User Setting
Record (Before Adjustment)
Print out the top menu record of setting (last setting) and
the list of all setting in the following procedure. After
completing the board replacement and adjustment, if the
setting is different from the contents of record printed
before adjustment, adjust the setting so that it becomes the
same as the setting before adjustment. Complete the
procedure by adjusting the setting to the contents of top
menu record.
Procedure
1. Turn on the [POWER].
“READY” is displayed on LCD of this unit.
Press the button to open the door panel.
Set the thermal paper and close the door panel.
Press the jog dial.
Print out the record of the top menu (last setting)
displayed on LCD.
6. Rotate the jog dial to display “MENU” on LCD, then
press the jog dial.
All settings are printed on the thermal paper.
wk wd
Be sure to keep the printed sheets (user setting)
because they are used as the reference to check the
setting after adjustment.
UP-D897
2-1-2. User Setting Check Procedure (After
Adjustment)
After completing the adjustment, reset this unit to the user
setting in the following procedure.
Procedure
1. Print out the setting of this unit.
(Refer to:steps 1 to 6 of Section 2-1-1.)
2. Compare the setting list printed in step 1 with the
setting list (used as reference) printed in step 6 of
Section 2-1-1.
If there is any difference between the settings, adjust to
the reference setting using the jog dial.
If there is no difference, press the jog dial.
(Setting is completed.)
3. After adjusting the setting to the reference setting,
press the jog dial.
The adjusted setting is displayed on LCD.
4. Check that the contents of setting are correct, then
press the jog dial.
2-1-3. Factory Setting
Procedure
1. Turn on the [POWER] while pressing the
button.
The beep sound is made immediately after turning on
the [POWER | and after that again.
2. Release the button, then press the |COPY
button.
Press the button within 3 seconds after the
second beep sound in step 1 is made.
3. Check that this unit becomes the following state.
(Change to the factory setting)
(1) Backlight is off.
(2) Backlight lights in green.
(3) Backlight lights in red.
(4) Flashes two times automatically.
(5) Beep sound is made.
2-1
