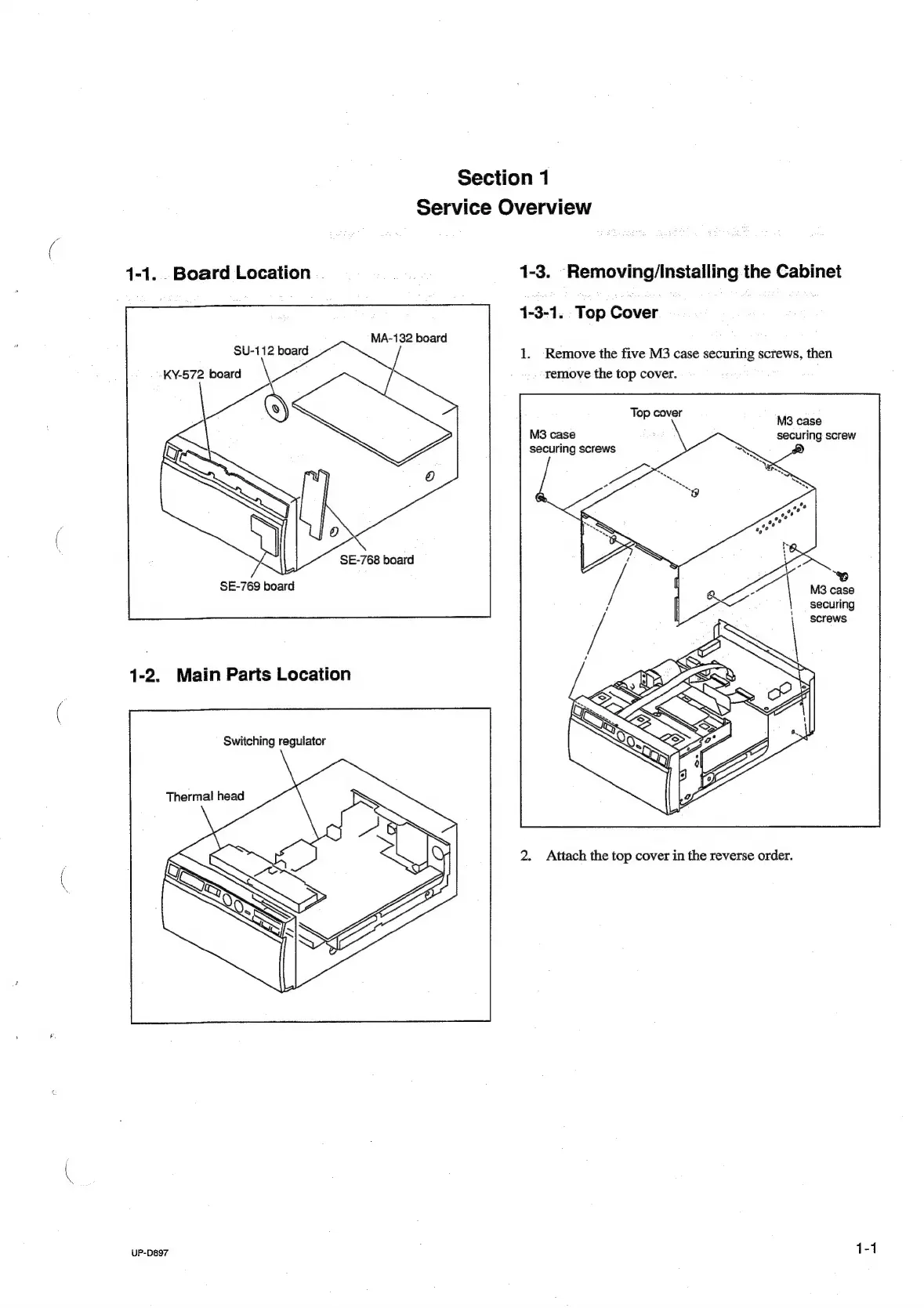

Section 1
Service Overview
1-1. . Board Location 1-3. Removing/Installing the Cabinet
1-3-1. Top Cover
MA-132 board
1. Remove the five M3 case securing screws, then
remove the top cover.
a
ee M3 case
M3 case : securing screw
securing screws
SU-112 board
KY-572 board
8
oO
SE-768 board
a
SE-769 board
3)
M3 case
securing
screws
1-2. Main Parts Location
Switching regulator
Thermal head
2. Attach the top cover in the reverse order.
UP-D897
1-1
