Sony UP-D897 Service Manual

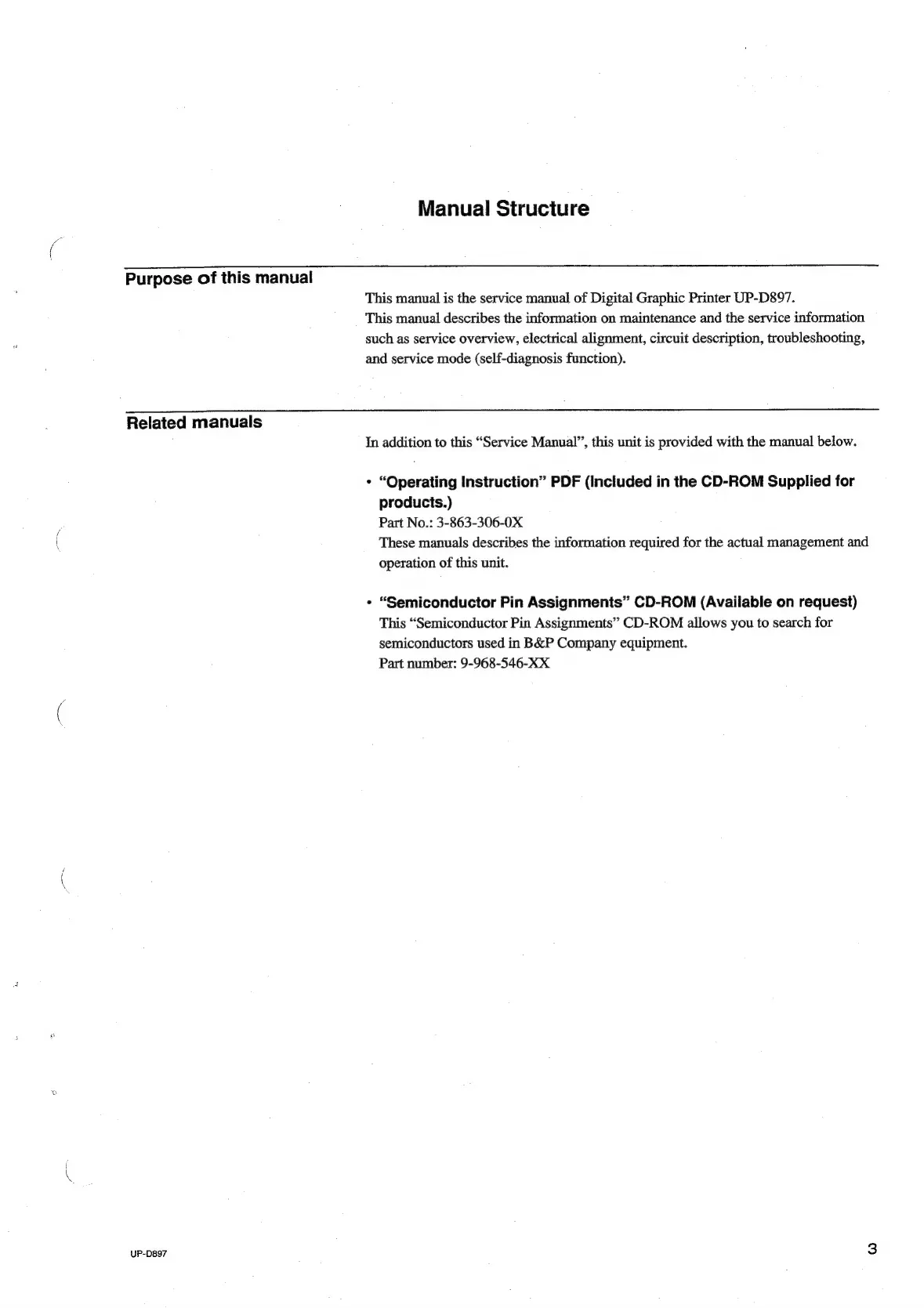

Manual Structure
Purpose of this manual
This manual is the service manual of Digital Graphic Printer UP-D897.
This manual describes the information on maintenance and the service information
such as service overview, electrical alignment, circuit description, troubleshooting,
and service mode (self-diagnosis function).
Related manuals
In addition to this “Service Manual”, this unit is provided with the manual below.
* “Operating Instruction” PDF (Included in the CD-ROM Supplied for
products.)
Part No.: 3-863-306-0X
These manuals describes the information required for the actual management and
operation of this unit.
“Semiconductor Pin Assignments” CD-ROM (Available on request)
This “Semiconductor Pin Assignments” CD-ROM allows you to search for
semiconductors used in B&P Company equipment.
Part number: 9-968-546-XX
UP-D897 3

Sony UP-D897 Specifications

Printing Specifications

printing method	Direct Thermal Printing
thermal head	Thin film thermal 1280 dots
resolution	325 dpi
effective print pixels	4096 x 1280 (max.)

Interface and Memory

interface	USB 2.0 High Speed Interface
memory	4096 x 1280 x 8 bit

Performance

print speed	Approximately 2.0 seconds (High Speed Mode)
gradations	True 256 gray balance

Weight and Dimensions

dimensions	154mm x 88mm x 240mm (WHD)
weight	Approximately 2.6kg
