Sony UWP-D21 - Tuner Specifications (URX-P40;P41 D)

54
Approx. 7 hours with output power of
10 mW (E, KR models)

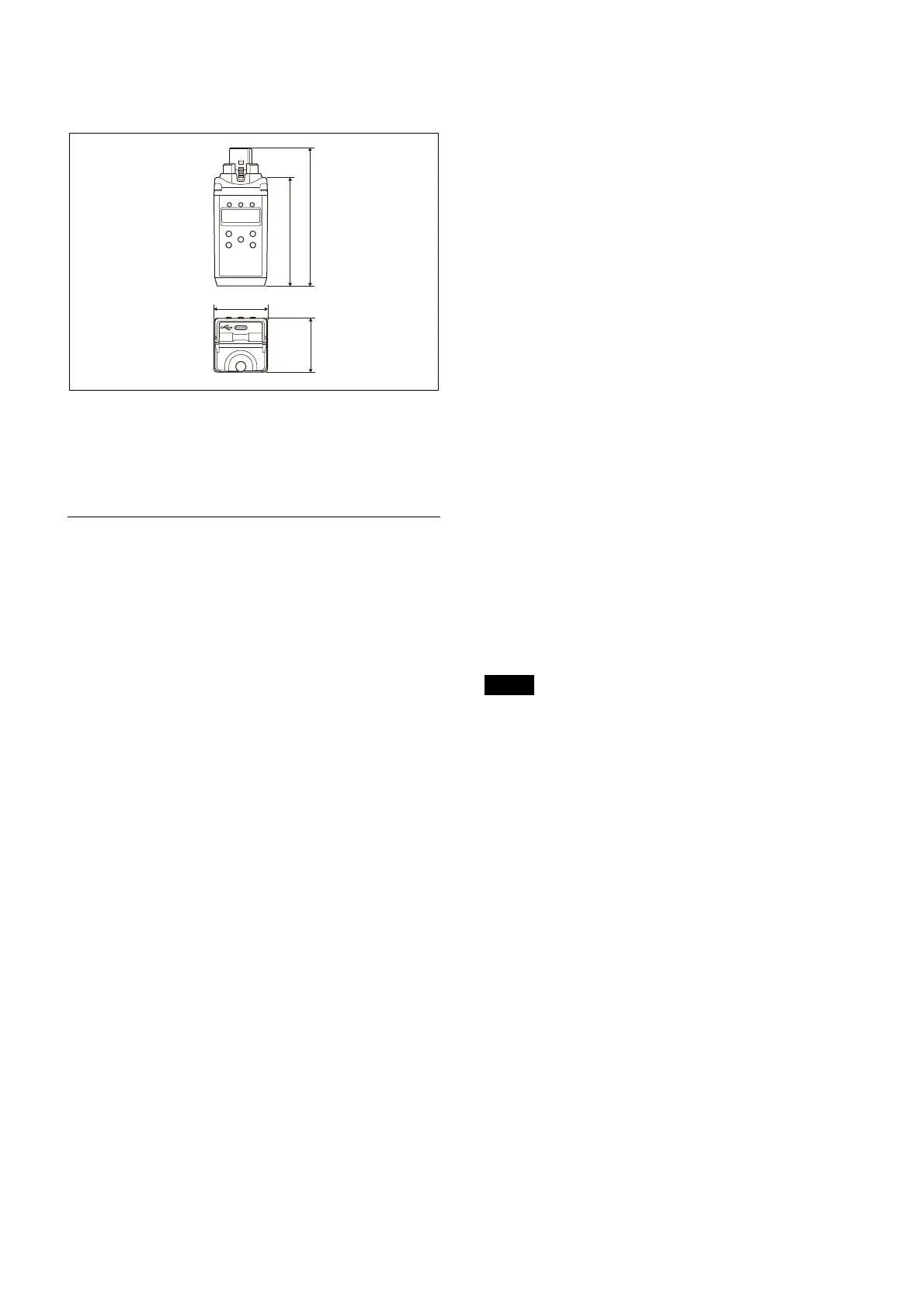

Dimensions
38 × 98 × 38 mm (1
1
/
2
× 3
7
/
8
× 1
1
/
2
in.)
(width / height / depth)
(including the audio input connector)
Mass Approx. 139 g (4.9 oz)
(excluding batteries)
Tuner (URX-P40/P41D)
Items common to all tuners
Antenna 1/4 λ wavelength wire antenna (angle-
adjustable)
Audio output level variation range
–12 dB to +12 dB (3 dB steps)
Audio output connector
3.5-mm diameter 3-pole locking mini
jac
k, Auxiliary connector
Headphone output level
10 mW max. (16-ohm)
Headphone output connector
3.5-mm diameter mini jack
Local oscillator Crystal-controlled PLL synthesizer
Receive frequencies
14UC model: 470.125 MHz to
54
1.875 MHz
(UHF-TV channels 14 to 25)
25UC model: 536.125 MHz to
60
7.875 MHz
(UHF-TV channels 25 to 36)
90U model: 941.625 MHz to
95
1.875 MHz, 953.000 MHz to
95
6.125 MHz, and 956.625 MHz to
95
9.625 MHz
21CE model: 470.025 MHz to
54
2.000 MHz
(UHF-TV channels 21 to 29)
33CE model: 566.025 MHz to
63
0.000 MHz
(UHF-TV channels 33 to 40)
42CE model: 638.025 MHz to
69
4.000 MHz
(UHF-TV channels 42 to 48)
42LA model: 638.125 MHz to
69
7.875 MHz
(UHF-TV channels 42 to 51)
29CN model: 638.025 MHz to
69
4.000 MHz
(UHF-TV channels 29 to 35)
KR model: 925.125 MHz to
93
7.375 MHz
E model: 794.125 MHz to 805.875 MHz
Signal-to-noise ratio
60 dB (1 kHz sine wave, 5 kHz
modulation)
96 dB (1 kHz sine wave, max deviation)
Audio delay Approx. 0.35 ms (analog output)
Approx. 0.24 ms (digital output)
Deemphasis 50 µs
Reference frequency deviation
±5 kHz
Frequency response
23 Hz to 18 kHz (Typical)
Distortion 0.9% or less (1 kHz sine wave, 5 kHz
modulation)
Tone signal frequency
In UWP-D compander mode:
32
.382 kHz
In UWP compander mode: 32
kHz
In WL800 compander mode:
32
.768 kHz
Operating temperature
0 °C to 50 °C (32 °F to 122 °F)
Storage temperature
–20 °C to +55 °C (–4 °F to +131 °F)
When used in locations with an ambient t
emperature of
45 °C (113 °F) or higher, make sure the unit does not
co
me into direct contact with your skin, as it may cause
burns due to high temperature.
USB port USB Type-C
Supply voltage DC 3.0 V (two LR6/AA size alkaline
ba
tteries)
DC 5.0 V (supplied from USB
connect
or)
Portable diversity tuner (URX-P40)
Audio output level
–60 dBV (3.5-mm diameter 3-pole
lockin
g mini jack, analog output,
0 dB audio output level)
–20 dBFS (auxiliary connector, digital
ou
tput, 0 dB audio output level)
–50 dBV (auxiliary connector, analog
ou
tput, 0 dB audio output level)
Reception method
True diversity method
Indicators POWER, RF
NFC function Built-in
38 (1
1
/
2
)
98 (3
7
/
8
)
77 (1
1
/
4
)
38 (1
1
/
2
)
Note
