• Channel configuration supported in combination with
the UWP-D series equipped with an infrared
communication function
• Output level control for receiver
• Equipped with output mode with wide range of output
l
evel settings
• High visibility OLED display for indoor/outdoor use
• USB for power supply
• Digital audio interface support using SMAD-P5 multi-
i
nterface shoe-mount adaptor (option)*
* For details on cameras that support t
his function, visit
the Sony website.
Name and Function of
Parts

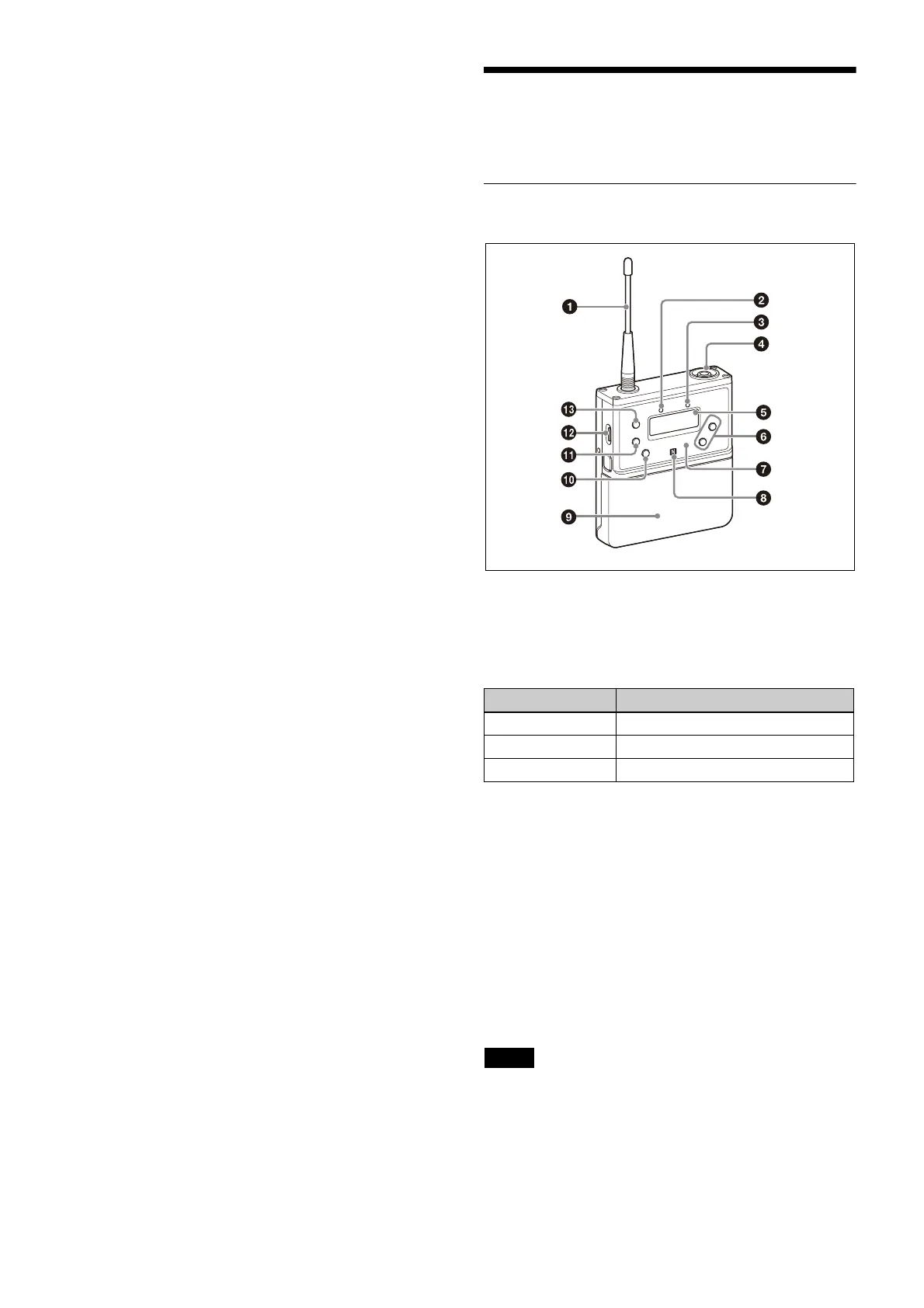

Body-pack transmitter (UTX-B40)
a Antenna
b POWER indicator
Displays the battery level.
c AUDIO (audio
input level) indicator
Turns on or off according to
the audio input level as
follows.
On (red): A
udio input level is too high. If the sound is
distorted, adjust the attenuation level to decrease the
audio input level (page 41).
On (green):
Audio input level is appropriate.
Off: There is
no audio input or the input level is too low.
Flashing (orange): Au
dio is muted (i.e., disabled).
d Audio input connector (BMP
type)
Connect to the supplied lavalier microphone.
• When the audio input level is set to MIC, a voltage for
the lavalier microphone power supply is applied to the
audio input connector. Special electrical wiring is used
inside the audio input connector for this purpose.
Indicator display Status
On (green) Sufficient battery level
Flashing (green) Battery is getting low
Off Supply OFF
