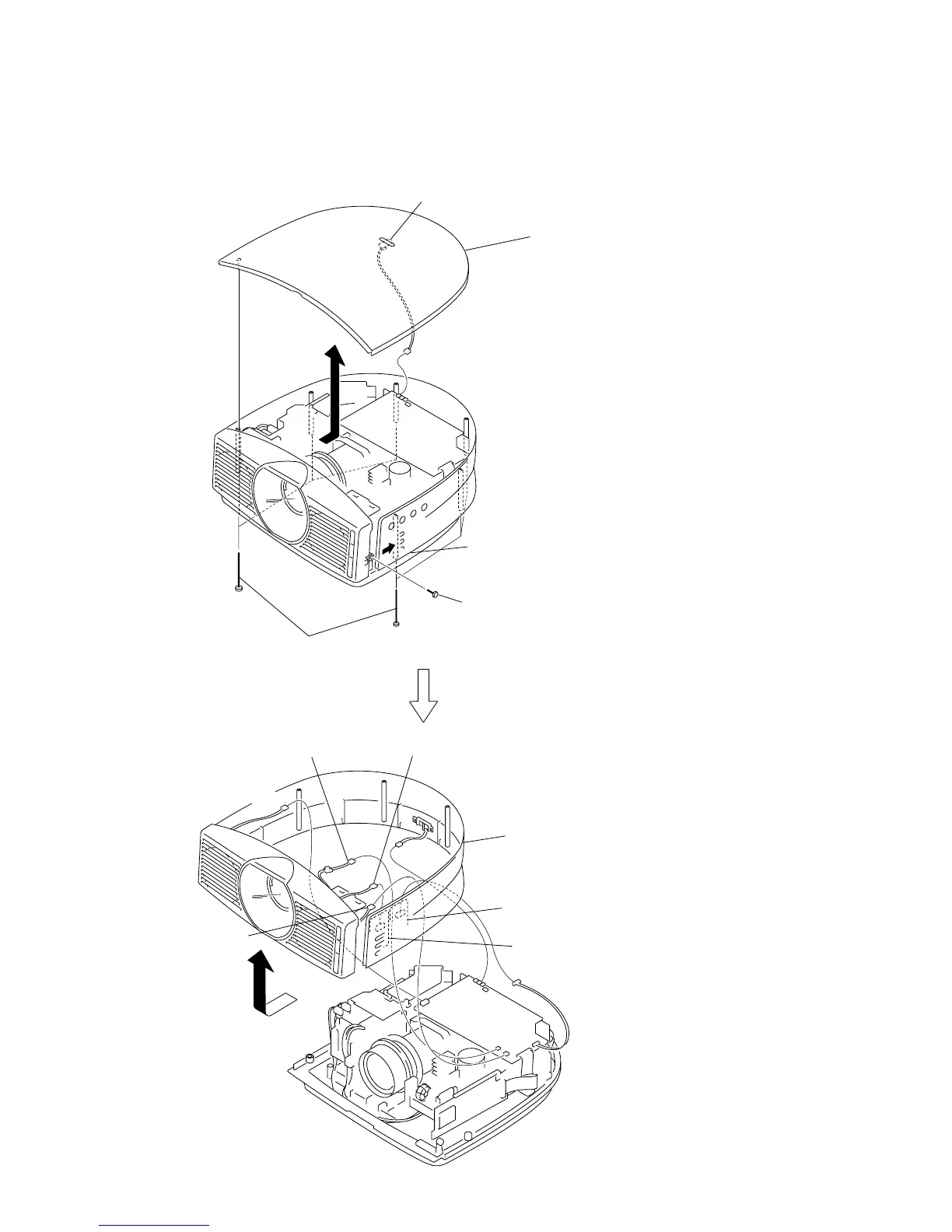

1-3. Disassembly
1-3-1. Front Panel Assembly and Side Cover Assembly
3 Remove only one side of the side cover assembly
in the direction of the arrow mark B.
(Do not give excessive force. Be careful not to break.)
C board
C board
1 Six shafts
A
C
CN305
CN61
CN304
HB board
HA board
B
L board
2 Remove the top cover assembly
in the direction of the arrow A.
5 Remove the front panel assembly, side cover assembly
in the direction of the arrow C.
4 Screw
(+B 3x6)
CN310 (From DC fan)
CN64 (From HC board)
CN303 (From NF board)
CN311 (From DC fan)
