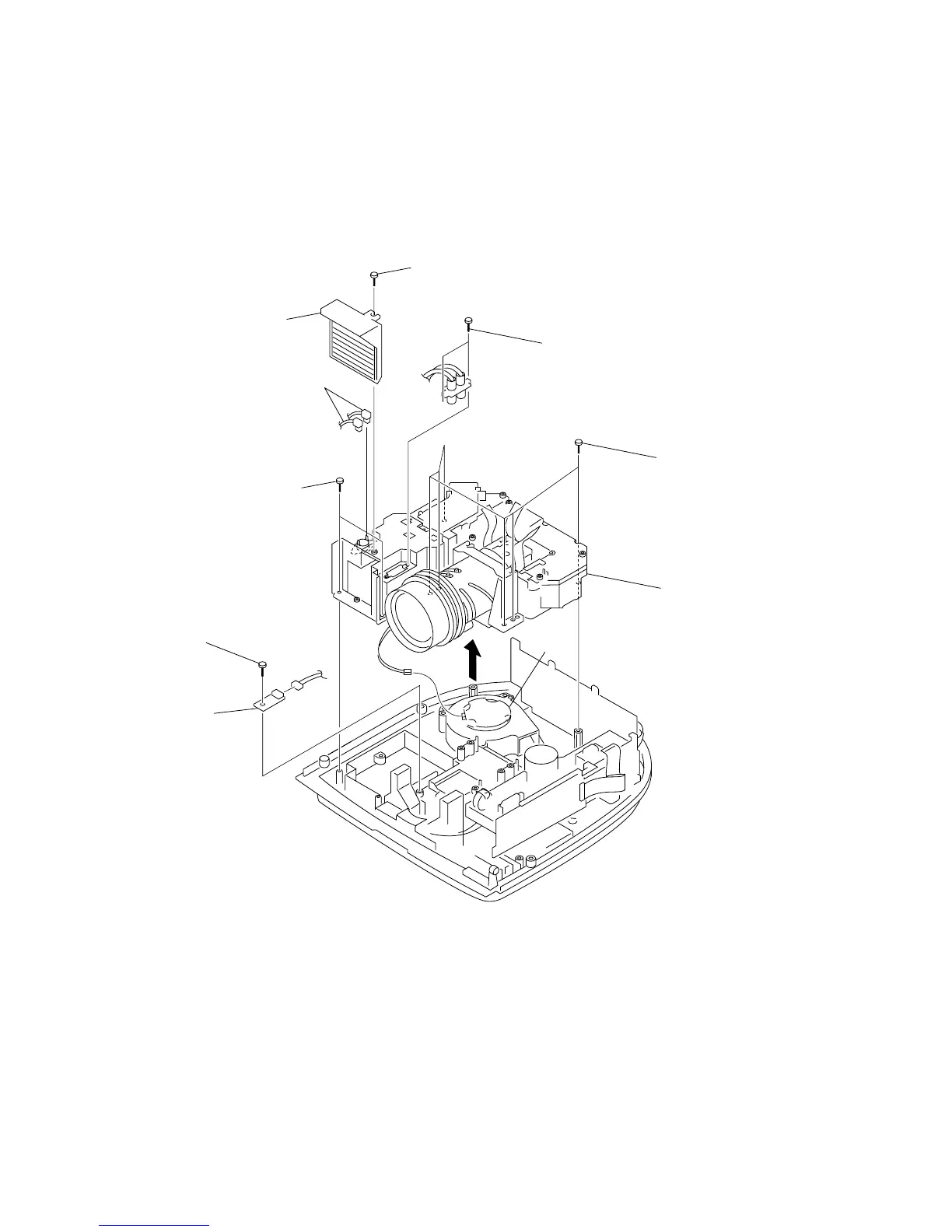

1-3-8. OPT Block Assembly and U Board
. Remove the C board. (Refer to 1-3-4.)
6 Six screws
(+B 3x12)
7 Opt block assembly
CN41
8 Screw
(+B 3x6)
5 Two screws
(+B 3x6)
1 Two screws
(+PS 3x10)
2 Two connectors
4 Light interseption plate
3 Screw
(+BVTP 3x10)
9 U board
D.C. fan
Connector
