Sony VPL-HS20 - C Board; B Board

1-4
VPL-HS20
CN901
CN310
CN600
CN700
CN800
CN104
CN902
CN307
CN306
CN302
CN304
CN305
CN903
CN311
CN308
CN312
CN300
CN101, CN153 (board to board)
CN100, CN152 (board to board)
B board
2 C board
1 Four screws
(+B 3 x 6)
Two claws

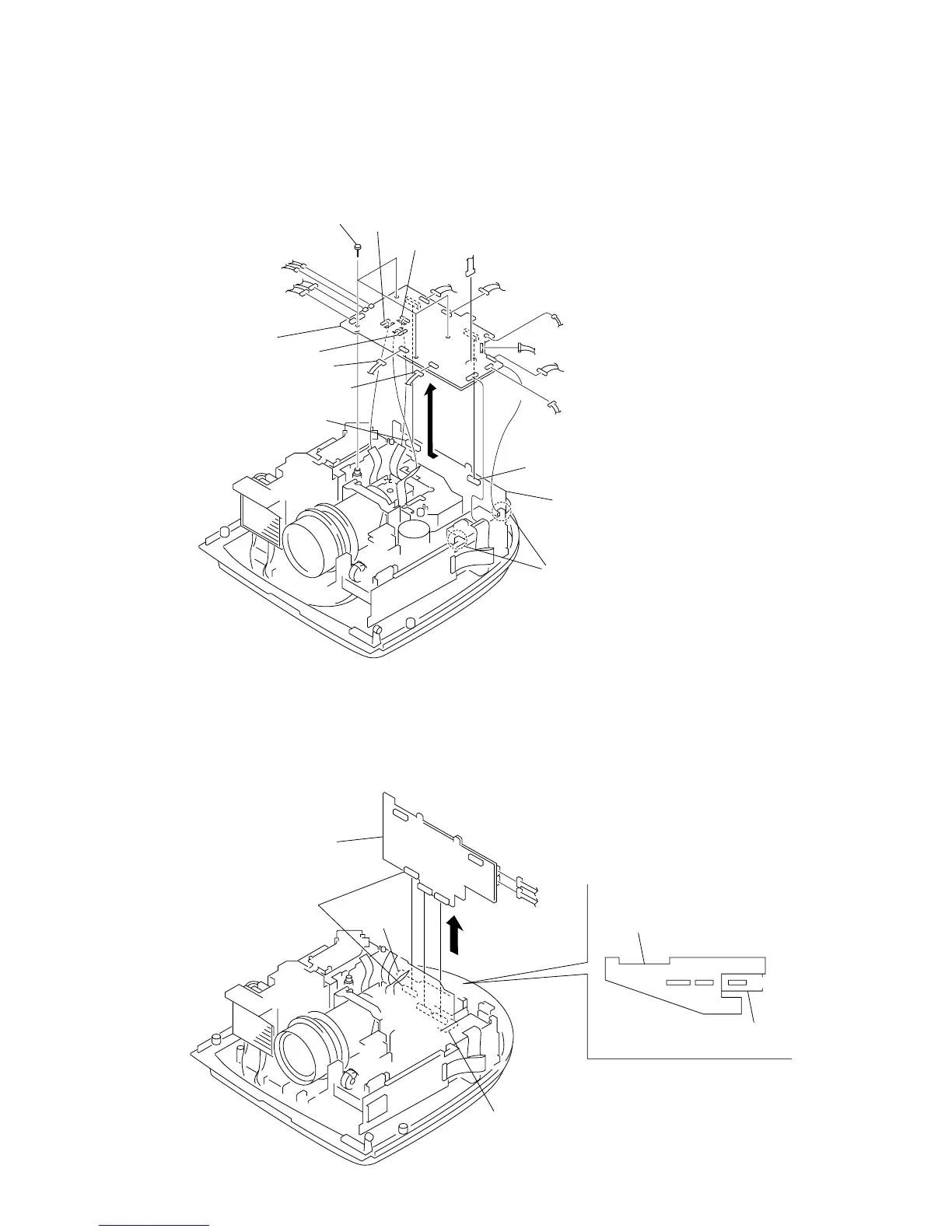

1-3-4. C Board
. Remove the front panel assembly and side cover assembly. (Refer to 1-3-1.)
1-3-5. B Board
. Remove the front panel assembly and side cover assembly. (Refer to 1-3-1.)
. Remove the C board. (Refer to 1-3-4.)
(board to board)
B board
QA board
QB board
QB board
QA board
CN150
CN151
CN103
CN102
CN902
CN103
CN100
CN02
CN101
CN902
CN102
