Sony VPL-HS20 - QA, QB Boards; F Board and Speaker Assembly

1-10
VPL-HS20

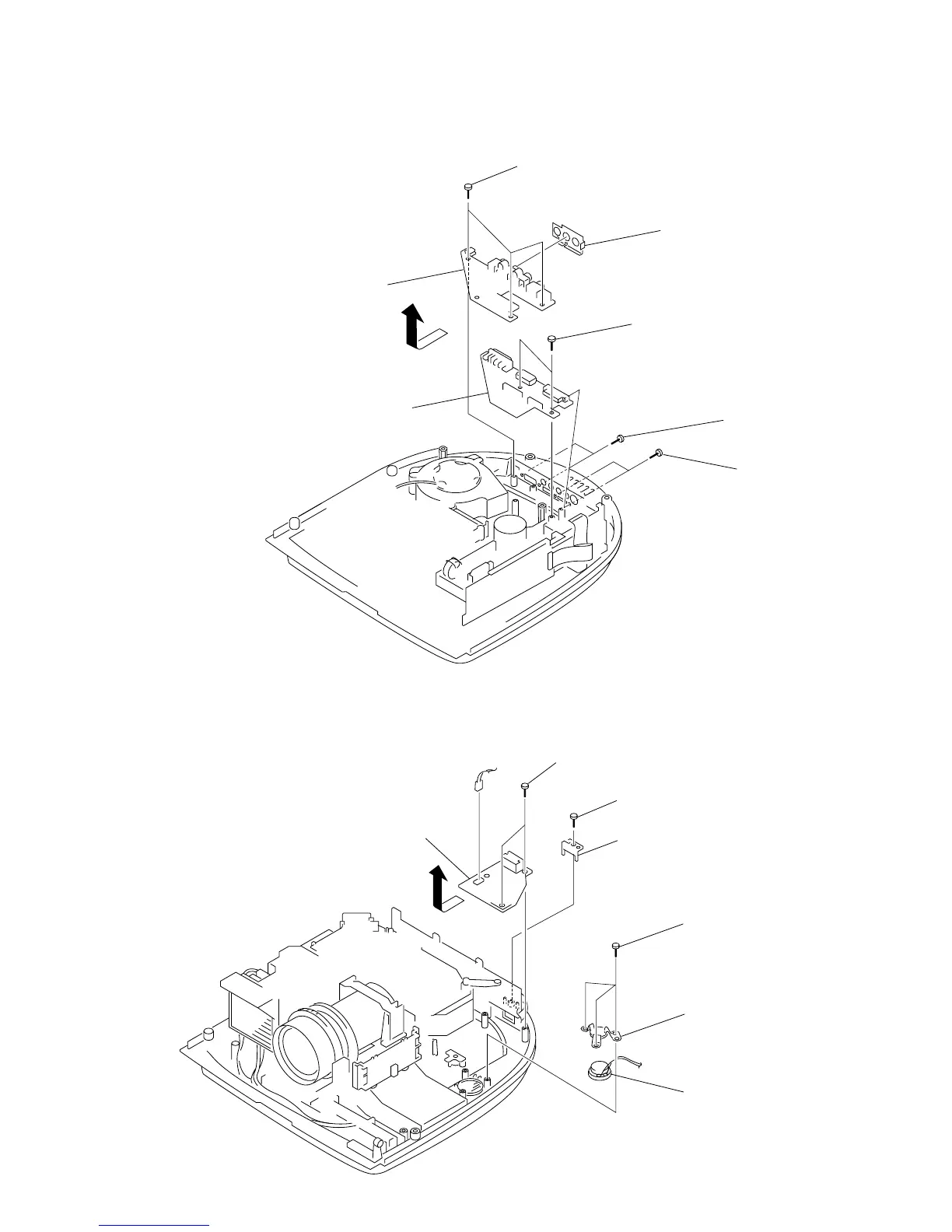

1-3-13. QA, QB Boards
. Remove the C board. (Refer to 1-3-4.)
. Remove the B board. (Refer to 1-3-5.)
. Remove the opt block assembly. (Refer to 1-3-8.)
4 Two screws
(+B 3x6)
5 Two screws
(+M 1.6x5)
6 Two screws
7 QB board
3 QA board
2 Plate G
1 Three screws
(+B 3x6)
CN502
3 Two screws
(+B 3x6)
1 Screw
(+B 3x6)
5 Three screws
(+B 3x6)
4 F board
6 Speaker spring assembly
2 AC holder
7 Speaker assembly
1-3-14. F Board and Speaker Assembly
. Remove the C board. (Refer to 1-3-4.)
. Remove the MS bracket. (Refer to 1-3-6.)
. Remove the power block assembly. (Refer to 1-3-7.)
