Sony VPL-HS20 - HA, HB and NR Boards; HC, NF and D.C. Fan

1-3
VPL-HS20

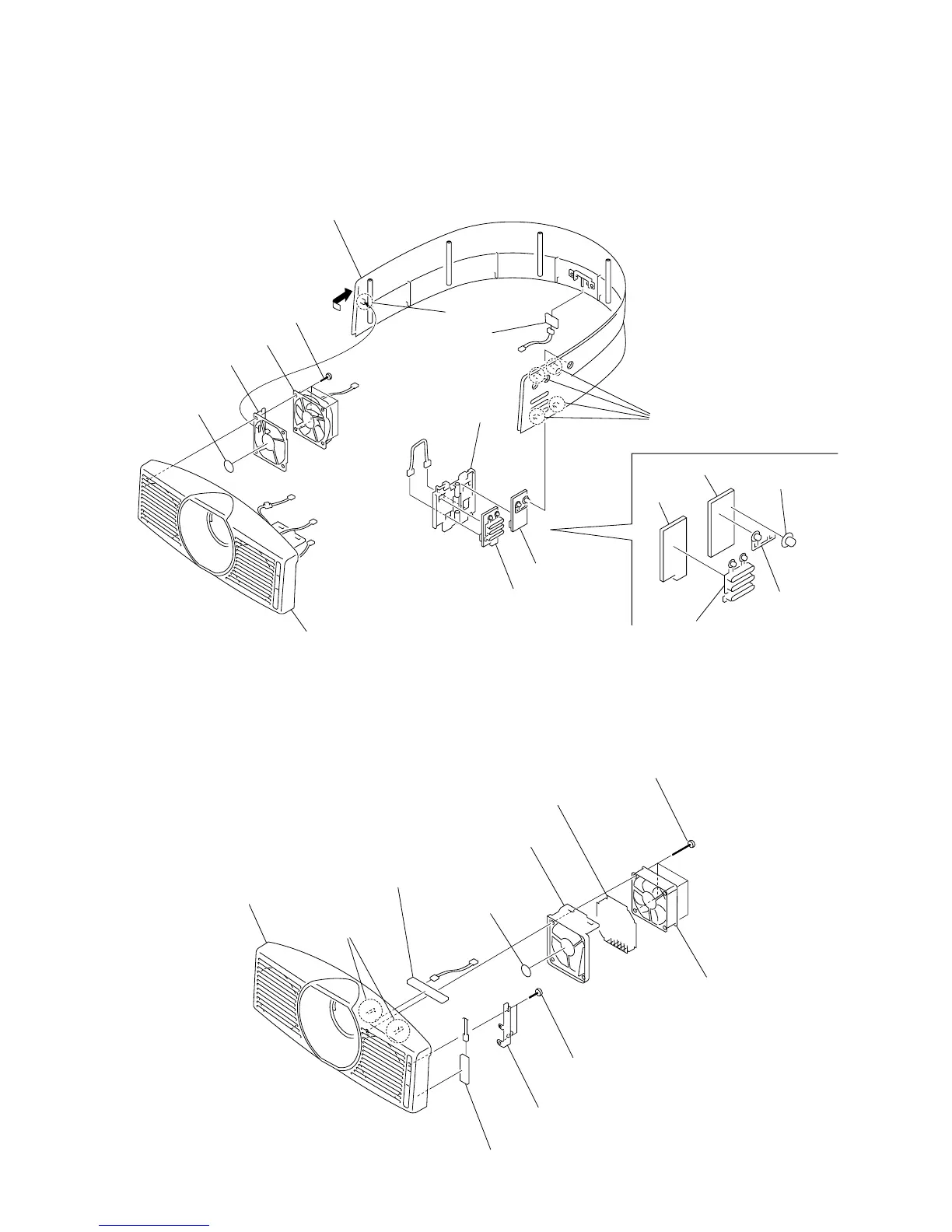

1-3-2. HA, HB and NR Boards
. Remove the front panel assembly and side cover assembly. (Refer to 1-3-1.)
1-3-3. HC, NF and D.C. Fan
. Remove the front panel assembly. (Refer to 1-3-2.)
Four claws
4 DC fan
2 Fan holder
3 Fan cushion
8 H holder
0 HA board
6 Front panel assembly
9 HB board
7 NR board
!- HA button
!= HB1 button
![ HB2 button
Claw
CN21
CN62
CN63
HB board
HA board
5
Remove the side cover assembly
in the direction of the arrow.
1 Four screws
(+PSW 3x10)
8 NF board
9 HC board
5 D.C. fan
4 Fan bracket (PW)
2 Guard
1 Four screws
(+PSW 3x35)
0 Front panel assembly
6 Two screws
(+B 3x6)
Two claws
CN81
CN11
7 FR holder
3 Fan cushion
