1-14
VPL-HS60/HS51A

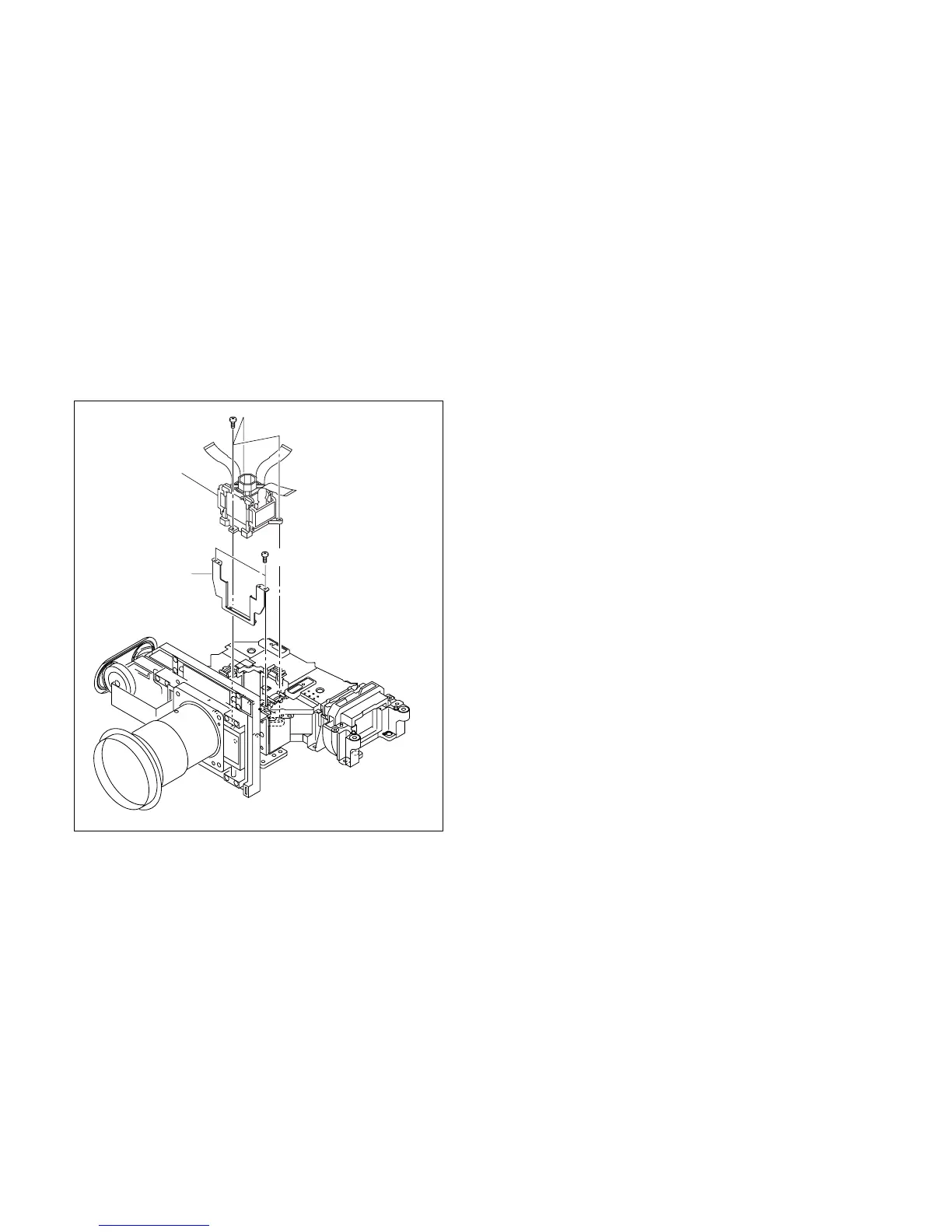

1-5-6. Prism Block
Removal
1. Remove the cabinet. (Refer to Section 1-3.)
2. Remove the C board.
(Refer to steps 3 to 7 of Section 1-4-1.)
3. Remove the lamp assembly.
(Refer to steps 2 and 3 of Section 1-5-2.)
4. Remove the optical block assembly.
(Refer to step 5 of Section 1-5-3.)
5. Remove the two screws (PWH M2 x 5) and three
screws (B2 x 8), then remove the prism block.
Installation
6. Assemble this unit in the reverse order of steps 1 to 5.
B2 x 8
PWH M2 x 5
Prism block
Shade Plate(LCD)
To Next Page
