1-13
VPL-HS60/HS51A

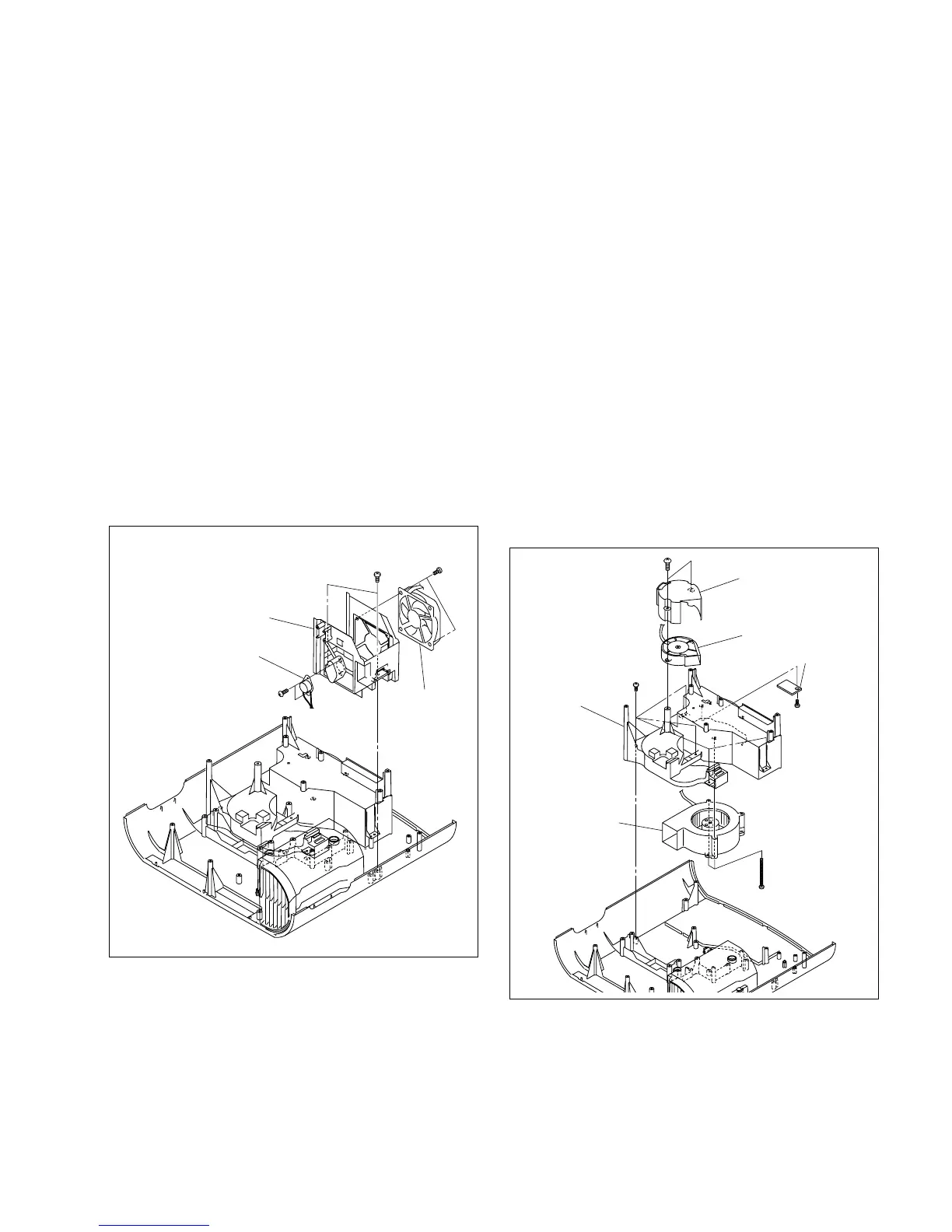

1-5-4. DC Fan (for Lamp)
Removal
1. Remove the cabinet. (Refer to Section 1-3.)
2. Remove the C board.
(Refer to steps 3 to 6 of Section 1-4-1.)
3. Remove the lamp assembly.
(Refer to steps 2 and 3 of Section 1-5-2.)
4. Remove the lamp power supply unit.
(Refer to step 4 of Section 1-4-6.)
5. Remove the optical block assembly.
(Refer to step 5 of Section 1-5-3.)
6. Remove the two screws (BTP3 x 12), then remove the
lamp house.
7. Remove the two screws (BTP3 x 12), then remove the
DC fan (for lamp).
8. Remove the two screws (BVTP3 x 6), then remove
the thermostat.
Installation
9. Attach the DC fan (for lamp) in the reverse order of
steps 5 to 7.
10. Assemble this unit in the reverse order of steps 1 to 4.
BTP
3 x 12
BTP
3 x 12
BVTP
3 x 8
Lamp house
DC fan
(for lamp)
Thermostat
1-5-5. DC Fan and TA Board
Removal
1. Remove the cabinet. (Refer to Section 1-3.)
2. Remove the C board.
(Refer to steps 3 to 7 of Section 1-4-1.)
3. Remove the lamp assembly.
(Refer to steps 2 and 3 of Section 1-5-2.)
4. Remove the lamp power supply board.
(Refer to step 4 to 10 of Section 1-4-6.)
5. Remove the optical block assembly.
(Refer to step 5 of Section 1-5-3.)
6. Remove the two screws (BVTP3 x 20), then remove
the fan cover (B) and DC fan (Sirocco) [A].
7. Remove the five screws (BTP3 x 12), then remove the
duct (panel).
8. Remove the two screws (PTP4 x 45), then remove the
DC fan (sirocco) [B].
9. Remove the screw (BTP3 x 12), then remove the TA board.
Installation
10. Attach the DC fan and TA board in the reverse order
of steps 6 to 9.
11. Assemble this unit in the reverse order of steps 1 to 5.
BVTP3 x 20
Fan cover (B)
DC fan (sirocco) [A]
Duct
(panel)
DC fan
(sirocco)
[B]
PTP4 x 45
TA board
BTP
3 x 12
BTP
3 x 12
