Sony VPL-HS60 - Exploded Views

4-2
VPL-HS60/HS51A
A
B
A
B
FOR VPL-HS51A
BTP
3 x 12
BTP
3 x 12
BTP
3 x 12
BTP
3 x 12
1
2
3
4
5
6
7
8
8

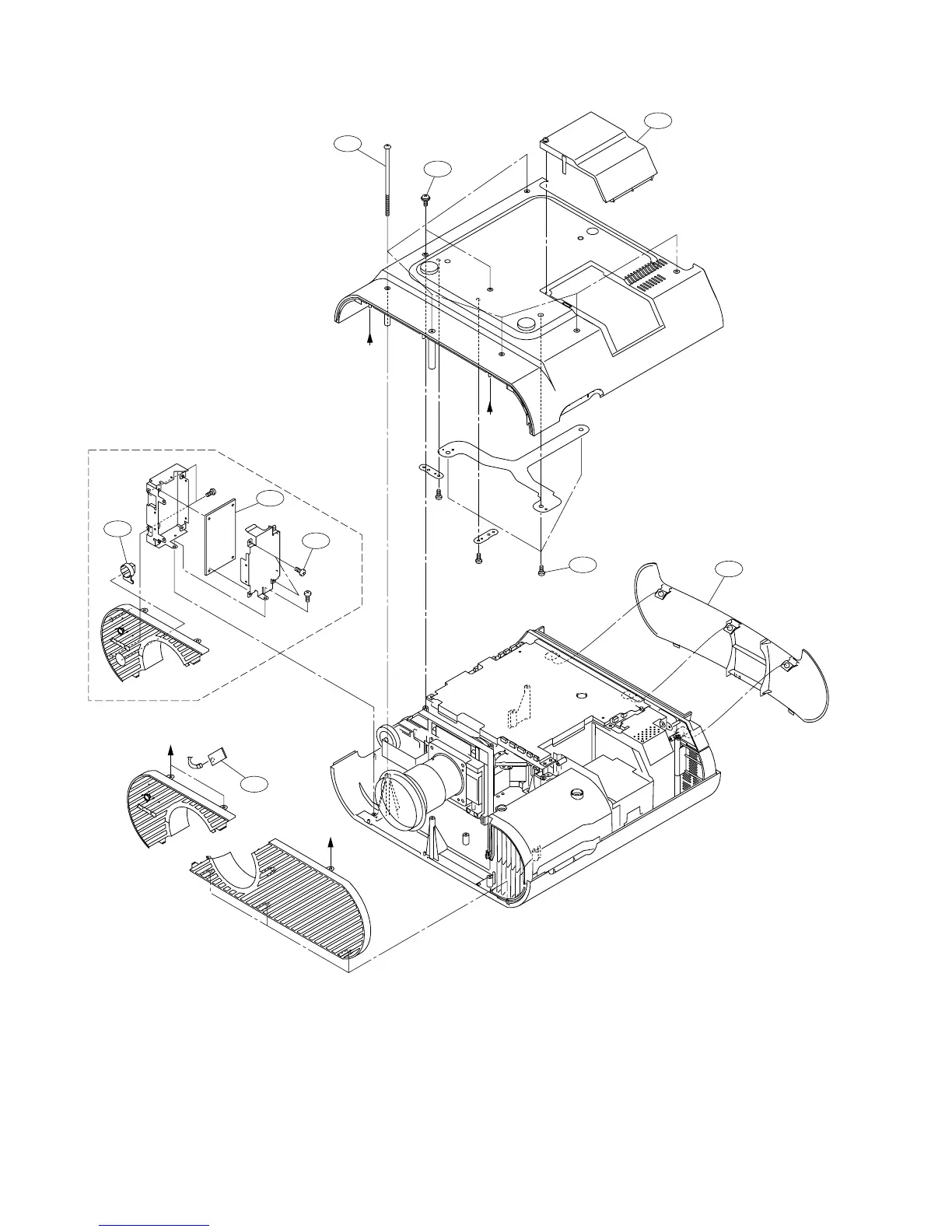

Base Block
4-2. Exploded Views
No. Part No. SP Description
1 A-1057-960-A s NF MOUNT
2 A-1164-047-A s Q COMPL
(FOR VPL-HS51A)
3 ! X-2025-173-4 s COVER ASSY,LAMP
4 ! 2-178-507-04 s COVER, REAR
5 2-345-361-01 s COVER, EITHER
(FOR VPL-HS51A)
No. Part No. SP Description
6 4-091-838-02 s SCREW M5X5, SPECIAL
7 4-099-122-02 s SCREW +BV 3X70 TYPE 2, SPECIAL
8 4-382-854-01 s SCREW (M3X8), P, SW (+)
(FOR VPL-HS51A)
7-685-548-19 s SCREW +BTP 3X12 TYPE2 N-S
