Step 2: Connecting the Projector
Step 2: Connecting the Projector
When making connections, be sure to do the following:
• Turn off all equipment before making any connections.
• Use the proper cables for each connection.
• Insert the cable plugs properly; plugs that are not fully inserted often
generate noise. When pulling out a cable, be sure to pull it out from the plug,
not the cable itself.
• Refer to the operating instructions of the connected equipment.
To connect to a DVD player/recorder or digital tuner equipped with
component video connectors
Tip
To connect the projector to a DVD player/recorder, HDD recorder, digital tuner, etc.
which is not equipped with component video connectors, it is recommended to use the
S video cable to connect to the S-video output of the DVD player/recorder, HDD
recorder, digital tuner, etc. If the connected equipment is not equipped with the S-video
output connector, use the video cable to connect to the video output jack on the
equipment.

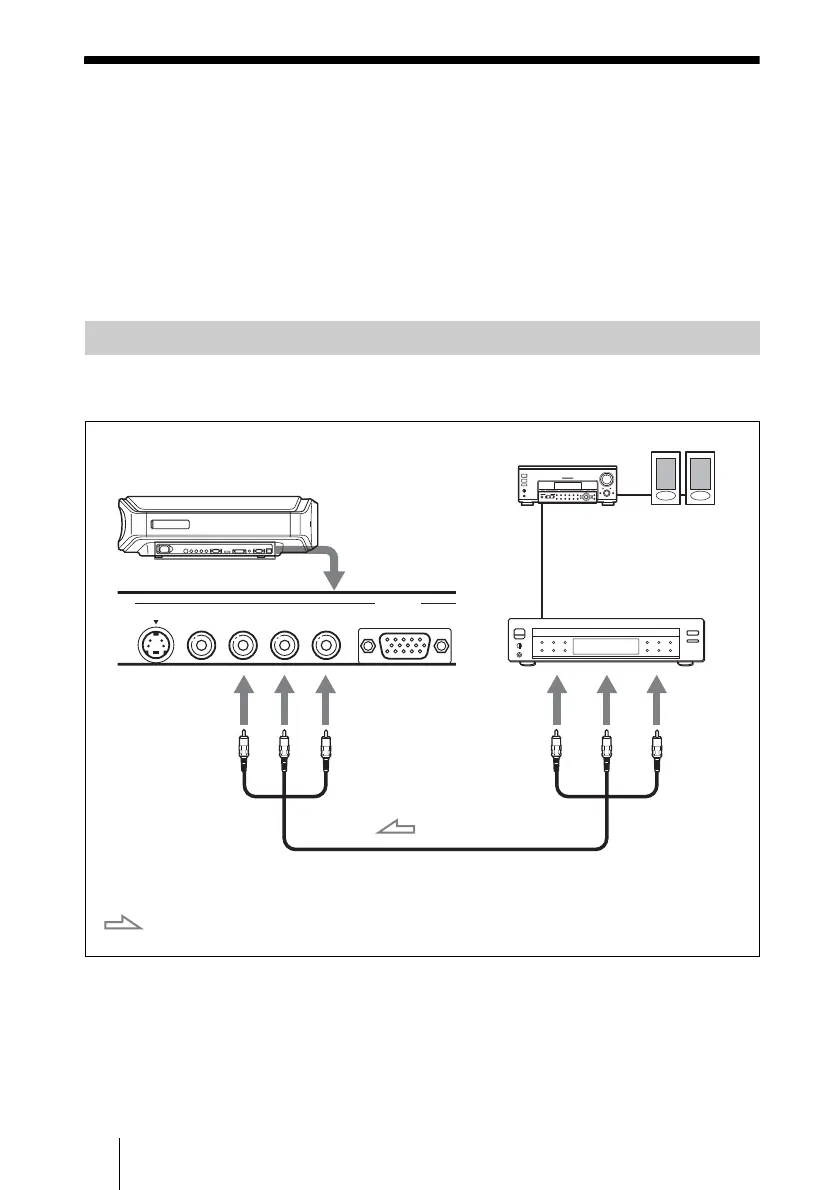

Connecting to a DVD Player/Recorder or Digital Tuner
PB/
CB
PR/
CR
Y
CB/
P
B
CR/PR
Y
S VIDEO
VIDEO
INPUT
YCB/PB CR/PR INPUT A
Component video cable (not supplied)
: Video signal flow
DVD player/recorder, HDD
recorder, digital tuner, etc.,
with component video
connectors
Right side of the projector
AV amplifier
Speakers
