WM-FX373/FX375
– 9 –
– 10 –
– 11 –

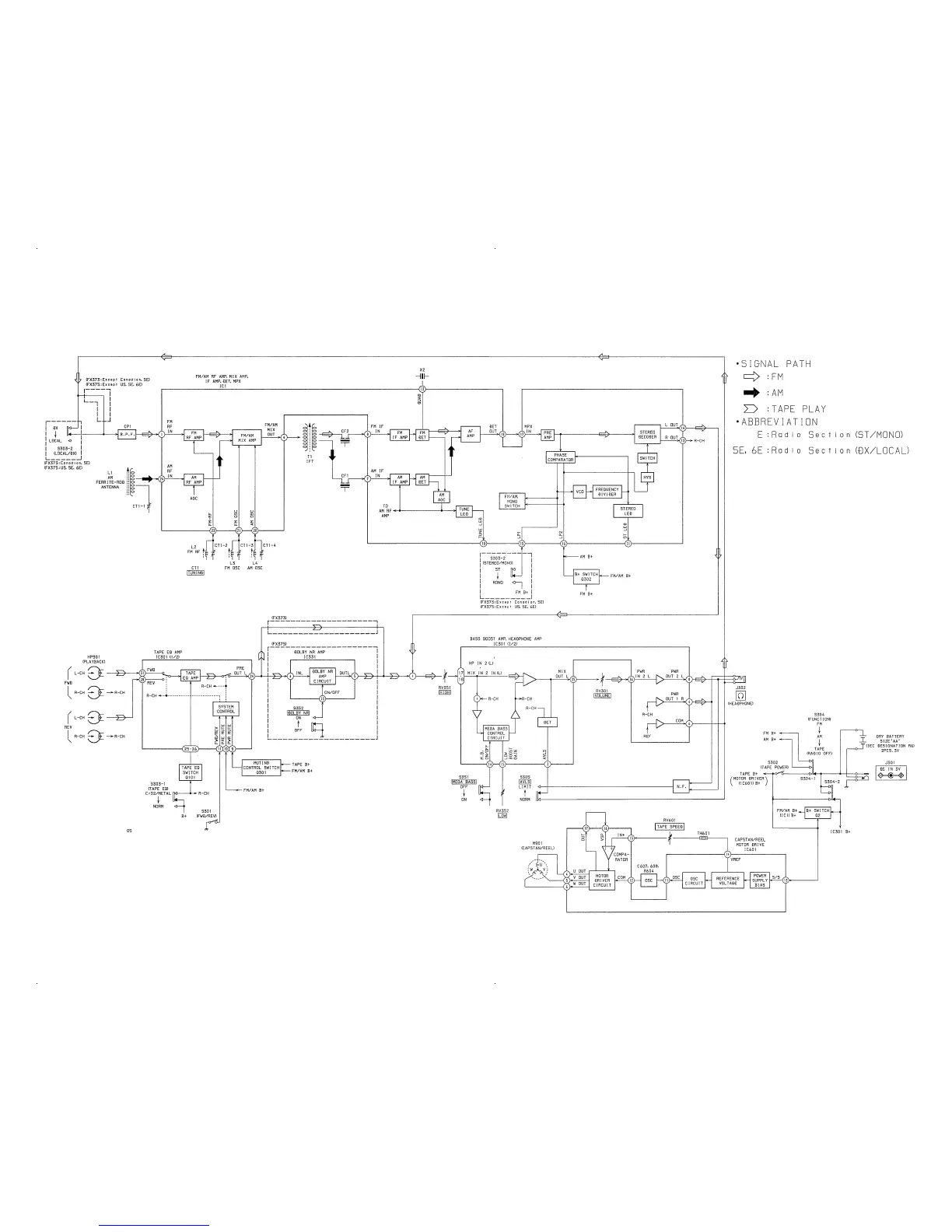

5-1. BLOCK DIAGRAM
SECTION 5
DIAGRAMS
Adjustment Location:
(FM RF-IN)
CT1-2
FM Tracking Adjustment
CT1-1
AM Tracking Adjustment
CT1-3
FM Frequency Coverage Adjustment
CT1-4
AM Frequency Coverage Adjustment
[MAIN BOARD]
– Side B –
L2
FM Tracking Adjustment
L1
AM Tracking Adjustment
T1
AM IF Adjustment
L3
FM Frequency Coverage Adjustment
L4
AM Frequency Coverage Adjustment
[MAIN BOARD]
– Side A –
