• IC Block Diagrams
IC1 TA2111F-(EL)
IC331 NJM2185AV-TE2 (WM-FX375)
IC601 LB1979V-TLM
SECTION 6
EXPLODED VIEWS
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Accessories and packing materials are given
in the last of the electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark

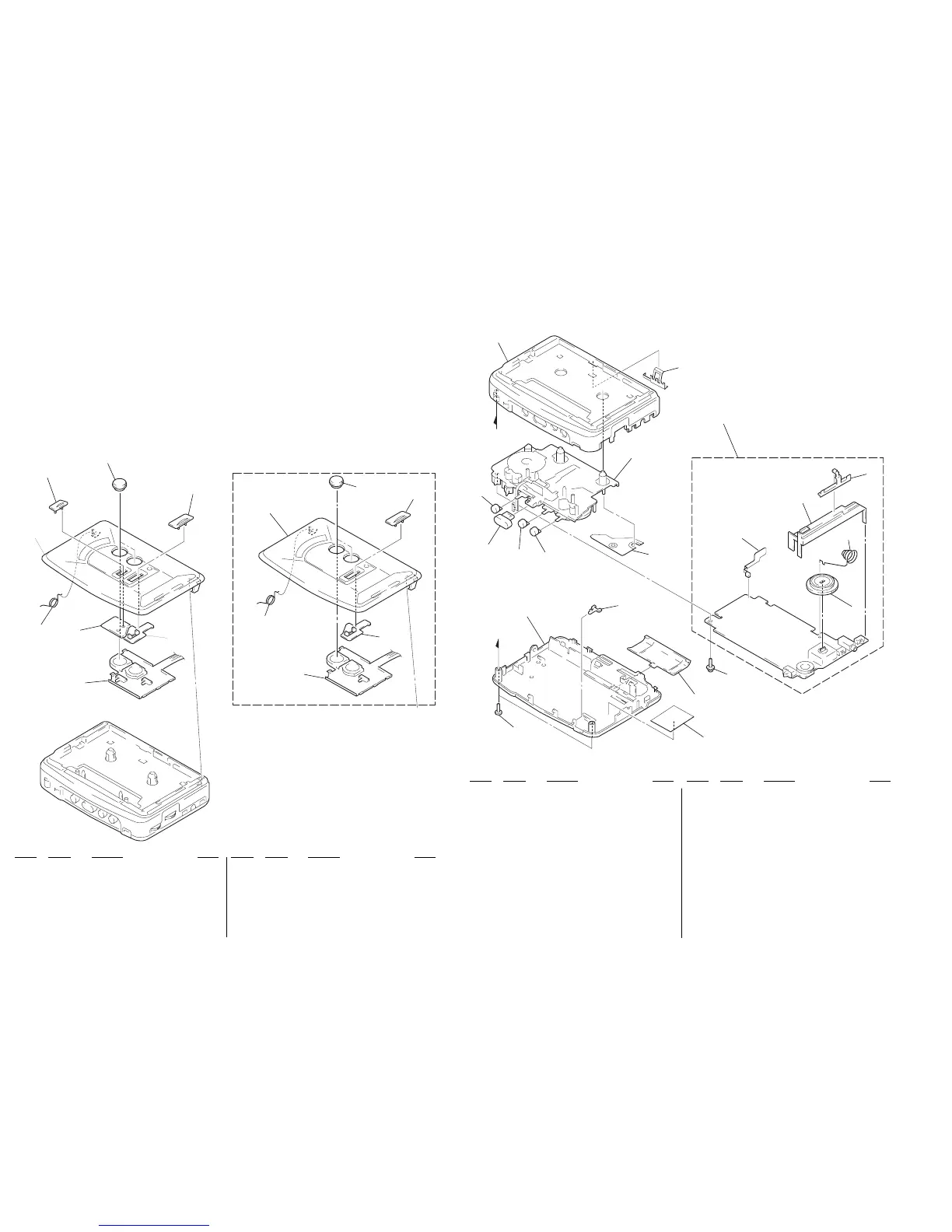

(1) CASSETTE HOLDER SECTION
• Abbreviation
CND : Canadian E : Radio Section (ST/MONO)
IT : Italian 5E, 6E : Radio Section (DX/LOCAL)
EA : Saudi Arabia
EE : East European
57
56
55
54
53
52
51
65
64
66
A
A
60
59
61
62
58
63
67
68
MT-WMEX372-114
L1
1 1-475-440-11 MEGA BASS UNIT (ROTARY) (FX373)
1 1-475-441-11 MEGA BASS UNIT (DOLBY) (FX375)
2 3-019-937-01 ACTUATOR (B)
3 3-019-938-01 ACTUATOR (C) (FX375)
4 3-007-012-01 SPRING (TORSION)
5 3-022-589-01 HOLDER, CASSETTE (RFX373: AEP, E)
5 3-022-589-11 HOLDER, CASSETTE (FX373: IT, EA)
5 3-022-589-21 HOLDER, CASSETTE (FX373: EE)
5 3-022-589-31 HOLDER, CASSETTE (FX373: CND, 5E)
5 3-022-590-01 HOLDER, CASSETTE (FX375: AEP, E)
5 3-022-590-11 HOLDER, CASSETTE (FX375: EA)
5 3-022-590-21 HOLDER, CASSETTE (FX375: EE)
5 3-022-590-31 HOLDER, CASSETTE (FX375: US, 5E, 6E)
6 X-3375-844-1 KNOB ASSY, DOLBY
7 3-019-857-01 KNOB (ROTARY)
8 X-3375-843-1 KNOB ASSY, MEGABASS
51 3-022-592-01 CABINET (REAR)
52 3-019-859-01 BUTTON (STOP) (x)
53 3-019-861-01 BUTTON (REW) (M)
54 3-019-858-01 BUTTON (PLAY) (N)
55 3-019-860-01 BUTTON (FF) (m)
56 3-022-591-01 CABINET (FRONT)
(EXCEPT FX373: CND, 5E/FX375: US, 5E, 6E)
56 3-022-591-11 CABINET (FRONT)
(FX373: CND, 5E/FX375: US, 5E, 6E)
57 3-932-037-01 SPRING (CASSETTE)
58 A-3021-052-A MAIN BOARD, COMPLETE (CND)
58 A-3021-053-A MAIN BOARD, COMPLETE (FX373: AEP, E)
58 A-3021-054-A MAIN BOARD, COMPLETE (FX373: IT, EA)
58 A-3021-055-A MAIN BOARD, COMPLETE (FX373: EE)
58 A-3021-056-A MAIN BOARD, COMPLETE (FX373: 5E)
58 A-3021-058-A MAIN BOARD, COMPLETE (US)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
(2) CABINET SECTION
58 A-3021-059-A MAIN BOARD, COMPLETE (FX375: AEP, E)
58 A-3021-060-A MAIN BOARD, COMPLETE (FX375: EE)
58 A-3021-061-A MAIN BOARD, COMPLETE (FX375: EA)
58 A-3021-062-A MAIN BOARD, COMPLETE (FX375: 5E, 6E)
59 3-022-294-01 POINTER
60 3-019-862-01 TERMINAL (+), BATTERY
61 3-022-579-01 TERMINAL, –
62 3-022-293-01 KNOB, TUNING
63 3-015-285-01 SCREW (M1.4),TOOTHED LOCK (WH)
64 3-019-856-11 LID, BATTERY CASE
65 3-022-581-01 PLATE, LIGHT GUIDE
66 3-318-203-92 SCREW (B1.7X9), TAPPING
67 3-022-580-01 SHEET (INSULATING)
68 3-016-420-01 STOPPER (L)
L1 1-501-962-11 ANTENNA, FERRITE-ROD (MW)
7
6
8
4
3
2
1
FX373
1
2
4
8
7
5
5
