Sony WM-FX373 - Section 2: Disassembly Procedures; Cabinet and Main Board Removal; Mechanism Deck and Component Removal

– 3 –

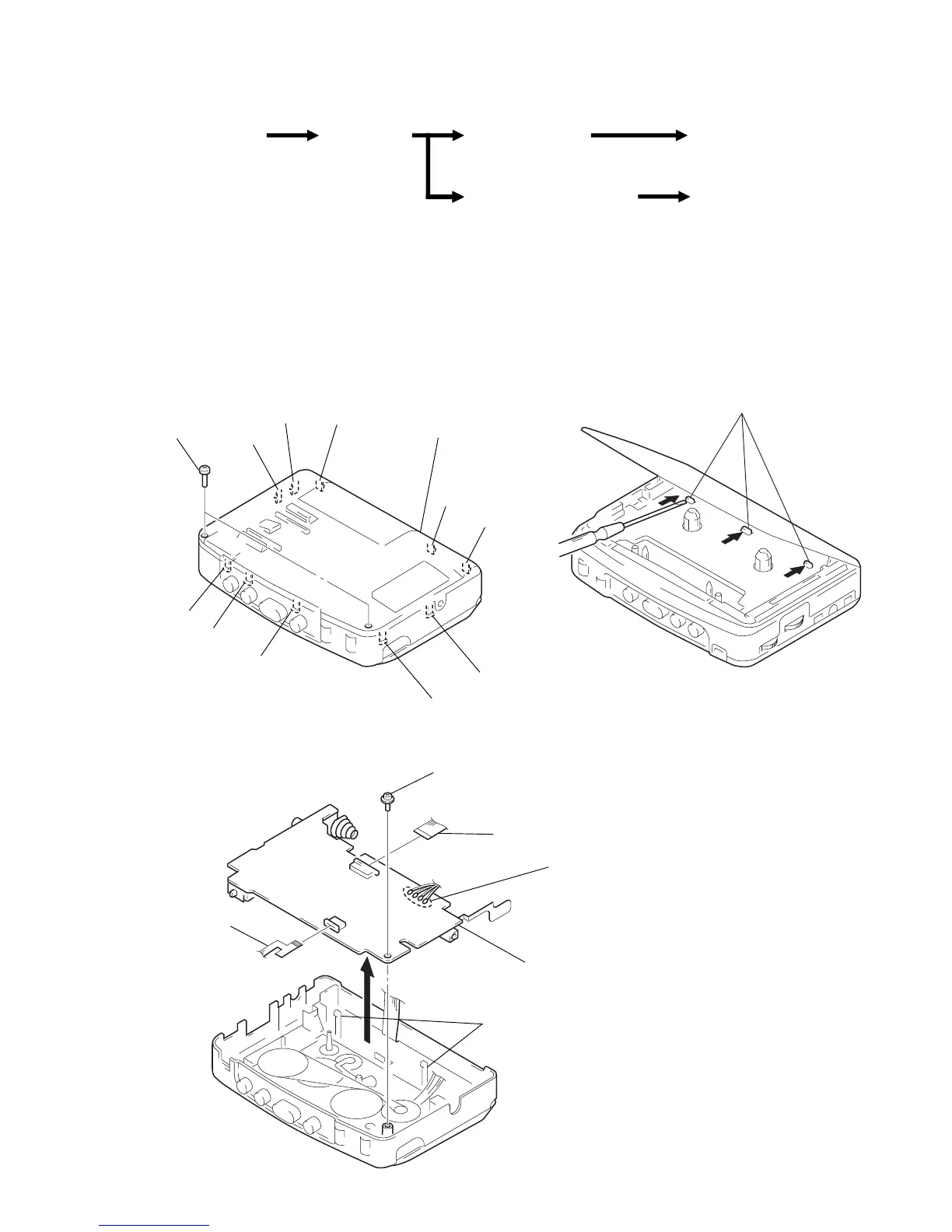

CABINET (REAR) ASS’Y
Note: Follow the disassembly procedure in the numerical order given.
SECTION 2
DISASSEMBLY
• This set can be disassembled in the order shown below.
A
2
Insert the precision screw
driver (1.4 mm flat-blade) in to
the slit at claw
A and release
the claw.
3 Remove the cabinet (rear) ass’y
(Release all claw
B to K in alphabetical order.)
1 two screws
(B1.7
× 9)
cabinet (rear) ass’
y
I
J
K
B
C
D
E
F
G
H
5 two claws
6 main board
2 Flexible board
(CN302)
3 Flexible board
(CN301)
4 toothed lock (WH) screw
(M1.4)
1 Remove four solders
of motor (M901).
MAIN BOARD
CABINET (REAR)
ASS’Y
DIAL POINTER
SETTING
BELT, MOTOR (M901)
MAGNETIC HEAD (HP901)
MAIN BOARD
CASSETTE HOLDER ASS’Y
NOTE FOR INSTALLATION
MEGA BASS
UNIT
MECHANISM DECK
(MT-WMEX372-114)
