– 2 –
SECTION 1
GENERAL
TABLE OF CONTENTS
1. GENERAL ................................................................... 2
2. DISASSEMBLY ......................................................... 3
3. MECHANICAL ADJUSTMENTS ....................... 7
4. ELECTRICAL ADJUSTMENTS......................... 7
5. DIAGRAMS
5-1. Block Diagram ................................................................ 10
5-2. Printed Wiring Board ...................................................... 12
5-3. Schematic Diagram ......................................................... 15
6. EXPLODED VIEWS ................................................ 21
7. ELECTRICAL PARTS LIST ............................... 24

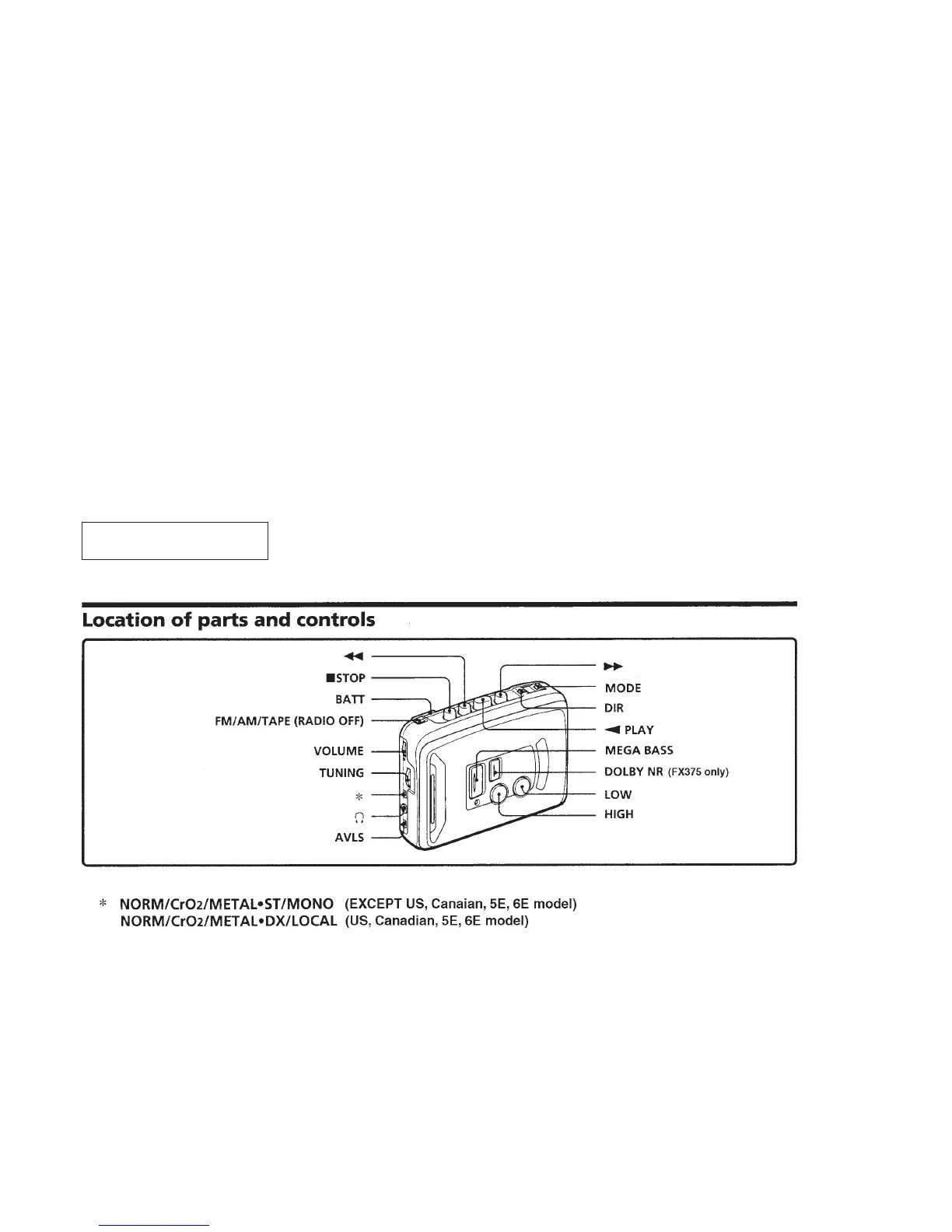

This section is extracted from
instruction manual.
SERVICING NOTES
Notes on chip component replacement
Never reuse a disconnected chip component.
Notice that the minus side of a tantalum capacitor may be dam-
aged by heat.
Flexible Circuit Board Repairing
Keep the temperature of the soldering iron around 270 ˚C dur-
ing repairing.
Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).
Be careful not to apply force on the conductor when soldering
or unsoldering.
