WM-FX373/FX375
– 12 –
– 13 –
– 14 –

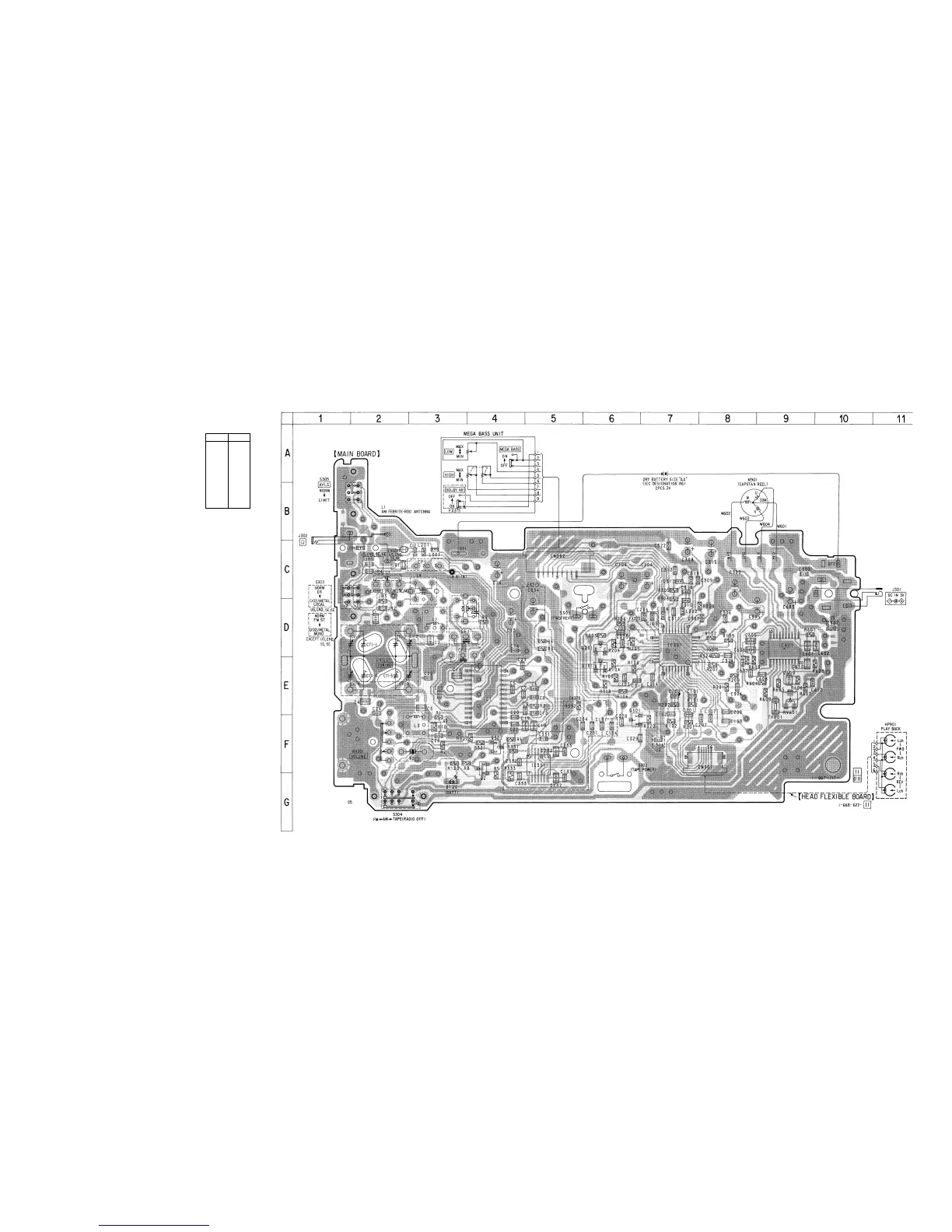

5-2. PRINTED WIRING BOARD
• Semiconductor
Location
Ref. No. Location
D120 G-3
IC1 E-4
IC301 D-7
IC331 F-5
IC601 D-9
Q2 F-4
Q101 E-6
Q201 D-6
Q301 F-6
Q302 F-4
Note on Printed Wiring Board:
• X : parts extracted from the component side.
• Y : parts extracted from the conductor side.
• f : internal component.
• b : Pattern of the rear side.
• b : Pattern from the side which enables seeing.
• Abbreviation
CND : Canadian model.
E : Radio Section (ST/MONO)
5E, 6E : Radio Section (DX/LOCAL)
Ver 1.2
