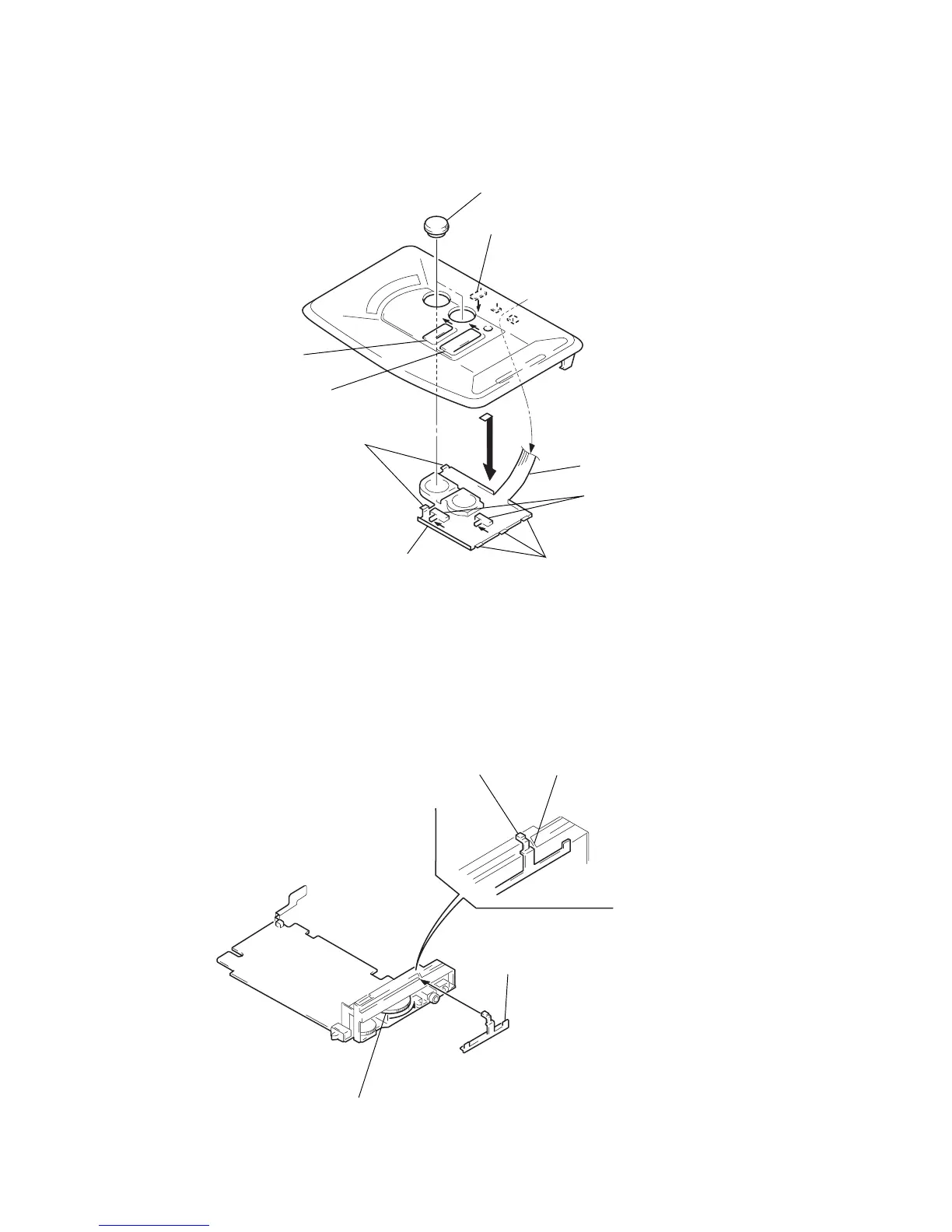

MEGA BASS UNIT
1 two knobs
(rotary)
2 stopper
5 flexible board
3 three claws
3 two claws
two switches
4 Remove the mega bass
unit to direction of
the arrow
A .
dolby knob
M/B knob
Note for installation:
Check that two switches are latched
with dolby knob and M/B knob when
carrying out installation of the mega bass unit.
A
1 Turn the knob (TUNE)
fully in the arrow direction.
2 Mount the pointer
as shown in the figure A .
fig.
A
pointer
guide rib
DIAL POINTER SETTING
Note: Follow the assembly procedure in the numerical order given.
