23
WM-GX410

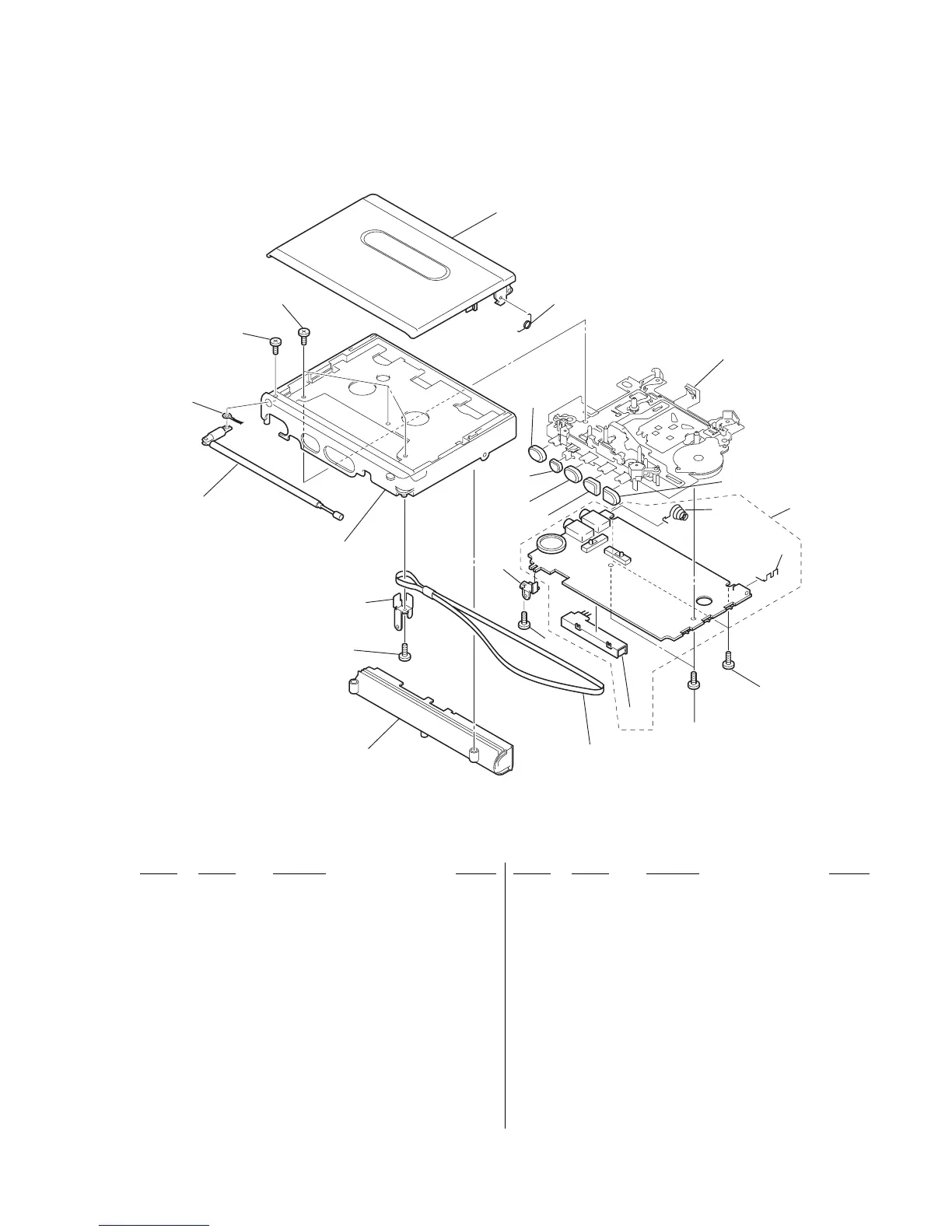

5-2. CASSETTE LID SECTION
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
58
59
64
67
63
65
53
54
55
56
57
66
52
66
62
61
60
68
69
66
70
51
MT-WMGX410-175
L3
ANT1
51 3-328-319-01 STRAP, HAND
52 3-237-139-02 COVER, JOINT
53 3-245-464-01 PLATE CONNECTOR (R)
54 3-259-598-11 CABINET (CENTER) (EXCEPT CH)
54 3-259-598-21 CABINET (CENTER) (CH)
55 1-828-807-11 ANTENNA WIRE (FM)
56 3-254-149-01 SCREW (M1.7)
57 3-389-523-23 SCREW (IB LOCK)
58 X-3384-447-1 HOLDER SUB ASSY, CASSETTE
(CND, CH, 5E, JEW)
58 X-3384-538-1 HOLDER SUB ASSY, CASSETTE (AEP, EA, 9E)
58 X-3384-539-1 HOLDER SUB ASSY, CASSETTE (AEP)
59 3-237-140-01 SPRING (TORSION)
60 3-225-569-01 BUTTON (STOP)
61 3-225-572-02 BUTTON (REC)
62 3-225-568-02 BUTTON (PLAY)
63 3-225-570-02 BUTTON (FF)
64 3-225-571-02 BUTTON (REW)
65 3-245-463-01 PLATE CONNECTOR (L)
66 3-254-082-01 SCREW
67 3-237-149-11 TERMINAL (-), BATTERY
* 68 A-4542-821-A MAIN MOUNTED PC BOARD ASSY
(EA, 9E, CH, JEW)
* 68 A-4542-822-A MAIN MOUNTED PC BOARD ASSY (CND, 5E)
* 68 A-4547-098-A MAIN MOUNTED PC BOARD ASSY (AEP)
69 3-265-274-01 TERMINAL (+), BATTERY
70 3-238-876-04 SCREW (M1.4), TOOTHED LOCK
ANT1 1-754-319-11 ANTENNA (FM)
Ver 1.1
