5
WM-GX410

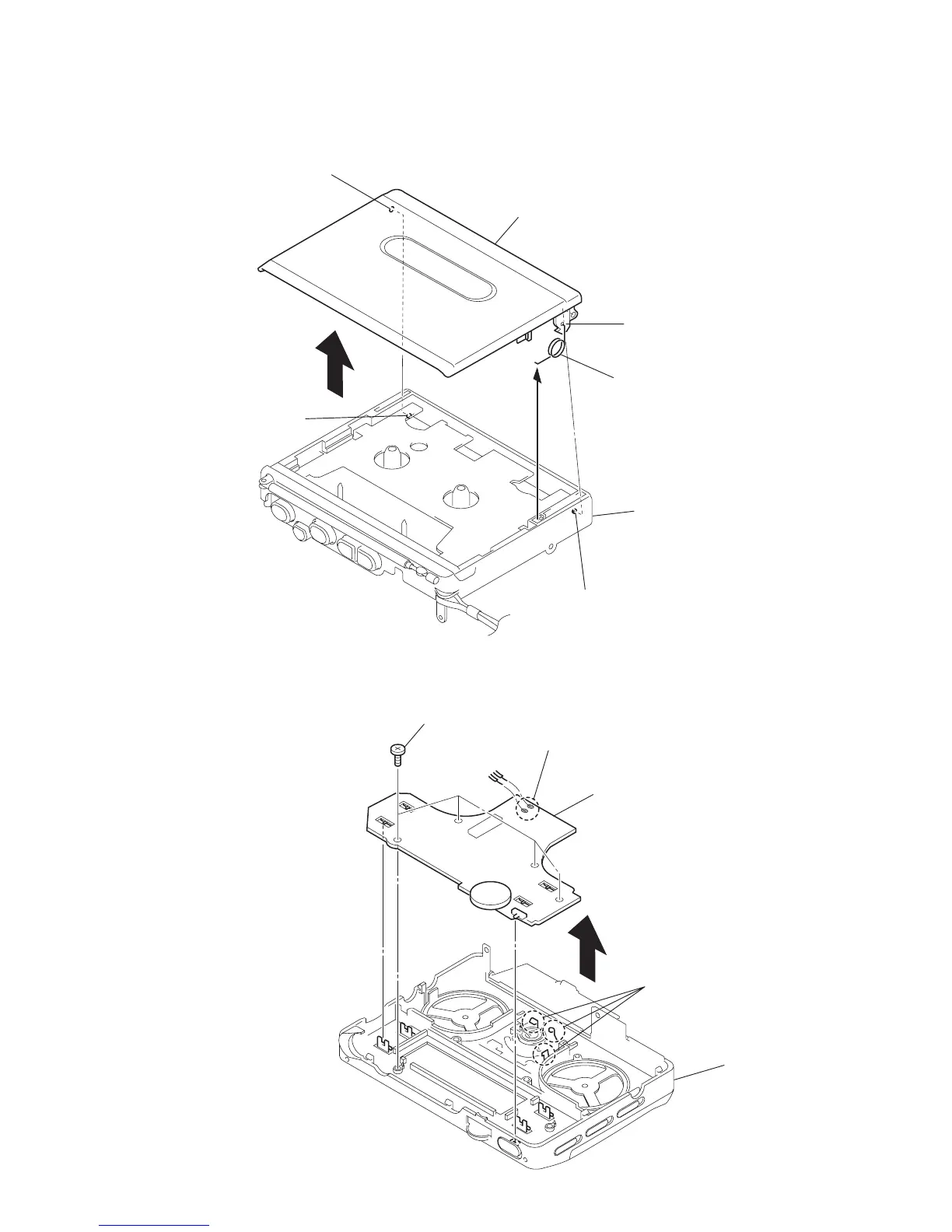

2-5. CASSETTE HOLDER SUB ASSY
2-6. SUB BOARD
cassette holder sub assy
cabinet (center)
projection
projection
1
remove from projection
2
remove from projectio
n
4
spring, torstion
3
2
four screws
3
three claws
sub board
Align five switches and
five knobs
Note on installation
cabinet front ass
y
1
remove two soldering
4
