24
WM-GX410

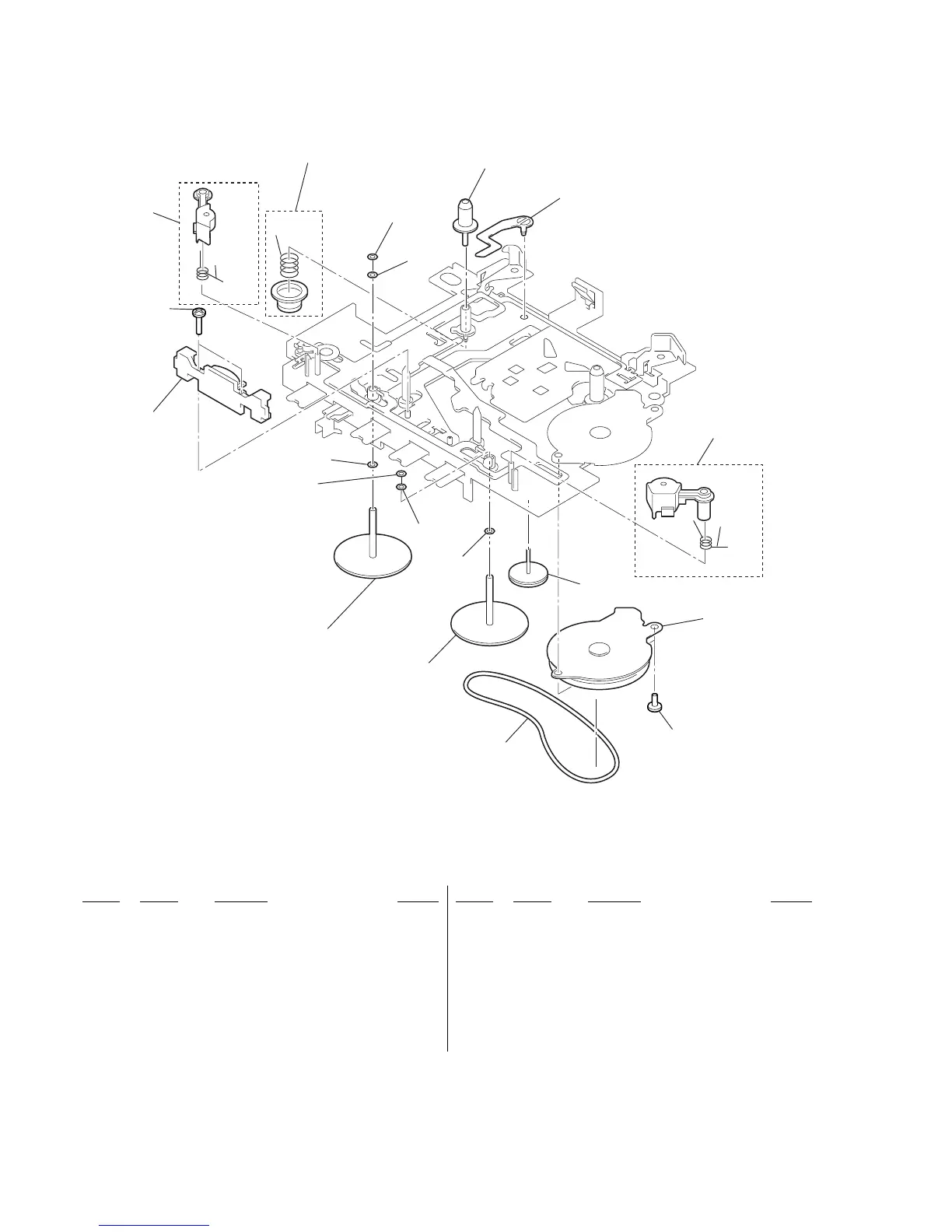

5-3. MECHANISM SECTION-1 (MT-WMGX410-175)
110
107
106
105
105
103
102
101
107
106
113
104
111
109
112
108
z
A (Included in No.151)
M601
HRPE301
not
supplied
not
supplied
not
supplied
Ref. No. Part No. Description Remarks
Ref. No. Part No. Description Remarks
101 3-703-816-08 SCREW (M1.4X1.4), SPECIAL HEAD
102 3-225-429-01 BELT (AR)
103 3-225-390-03 PULLEY (REVERSE)
104 X-3380-830-2 FLY ASSY (AR5.0), CAPSTAN
105 3-386-694-01 WASHER
106 3-029-278-01 WASHER
107 3-029-275-01 WASHER (STOPPER N)
108 3-042-480-11 SCREW (M1.4)
109 X-3379-882-3 PINCH (N) ASSY, ARM
110 3-019-776-03 GEAR (REEL-S)
111 3-225-399-04 LEVER (N SHUT OFF)
112 X-3379-883-4 PINCH (R) ASSY, ARM
113 X-3379-877-2 FLY ASSY (AR), CAPSTAN
HRPE301 1-500-830-11 MAGNETIC HEAD (PB/REC/ERASE)
M601 1-763-687-13 MOTOR, DC (CAPSTAN/REEL)
(including PULLEY)
