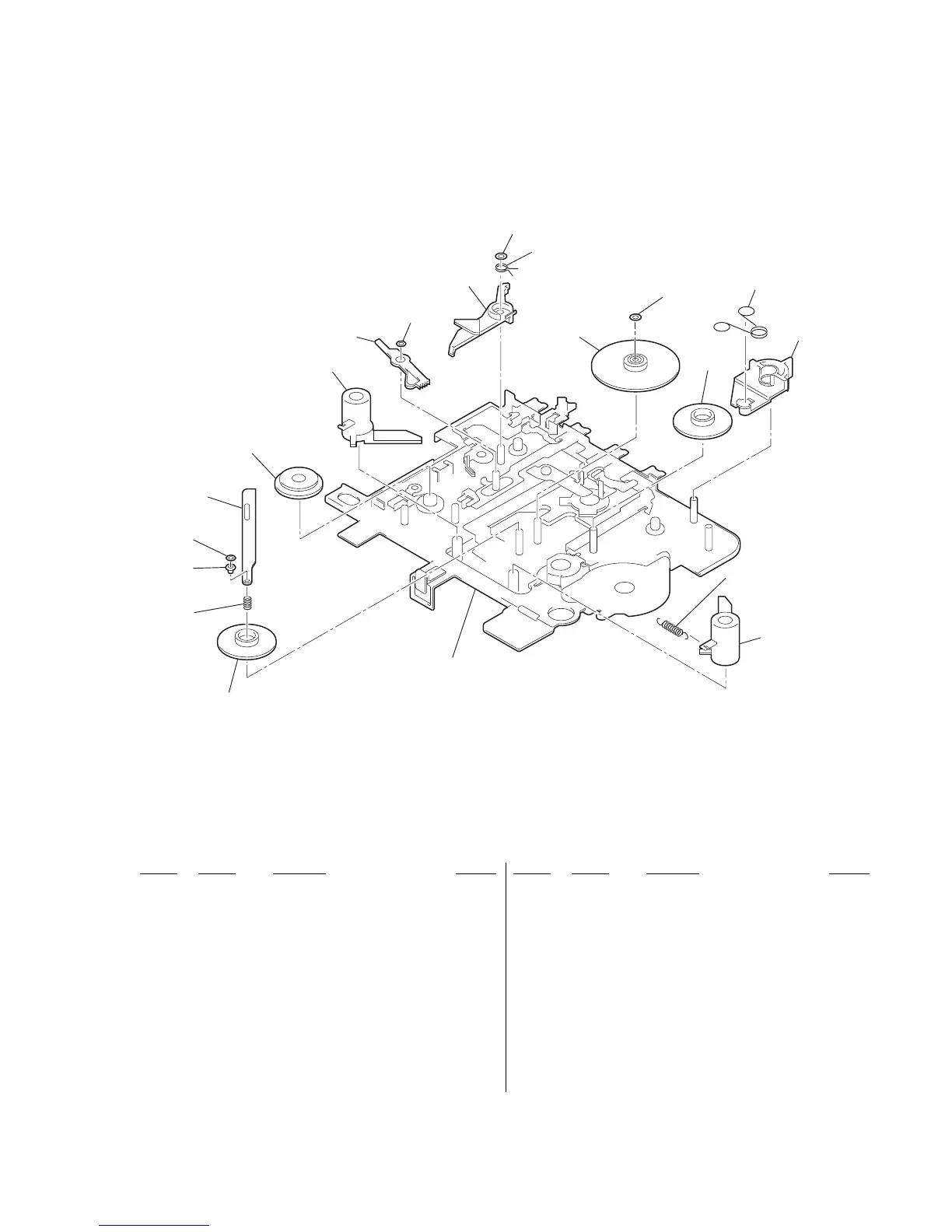

5-4. MECHANISM SECTION-1 (MT-WMGX410-175)
151
152
153
154
155
156
157
159
160
162
164
163
165
166
167
168
169
171
170
161
(Including
z
A)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
151 X-3379-878-4 CHASSIS ASSY (AR)
152 3-225-385-03 GEAR (B)
153 3-229-063-01 SPRING (UD) (R), COMPRESSION
154 3-019-778-03 SLEEVE (MS)
155 3-728-091-01 WASHER, STOPPER
156 3-225-427-01 WASHER, LEVER
157 3-225-384-02 GEAR (A)
159 3-225-395-04 LEVER (REW ROTARY)
160 X-3380-677-3 LEVER (E DETECTION) ASSY
161 3-229-064-01 WASHER, STOPPER
162 3-225-393-03 LEVER (SHUT/OFF)
163 3-225-448-02 SPRING (SHUT OFF), TORSION
164 3-321-813-71 WASHER, COTTER POLYETHYLENE
165 X-3379-881-3 CLUTCH ASSY (AR)
166 3-315-384-31 WASHER, STOPPER
167 3-225-438-01 SPRING (NR SLIDER), TORSION
168 3-225-396-04 LEVER (DIR)
169 3-225-388-04 GEAR (D)
170 3-225-394-04 LEVER (FF ROTARY)
171 3-225-444-01 SPRING (FR ROTARY), TENSION
