Sony WM-GX410 Service Manual

22
WM-GX410
Ref. No. Part No. Description Remarks
Ref. No. Part No. Description Remarks
SECTION 5
EXPLODED VIEWS

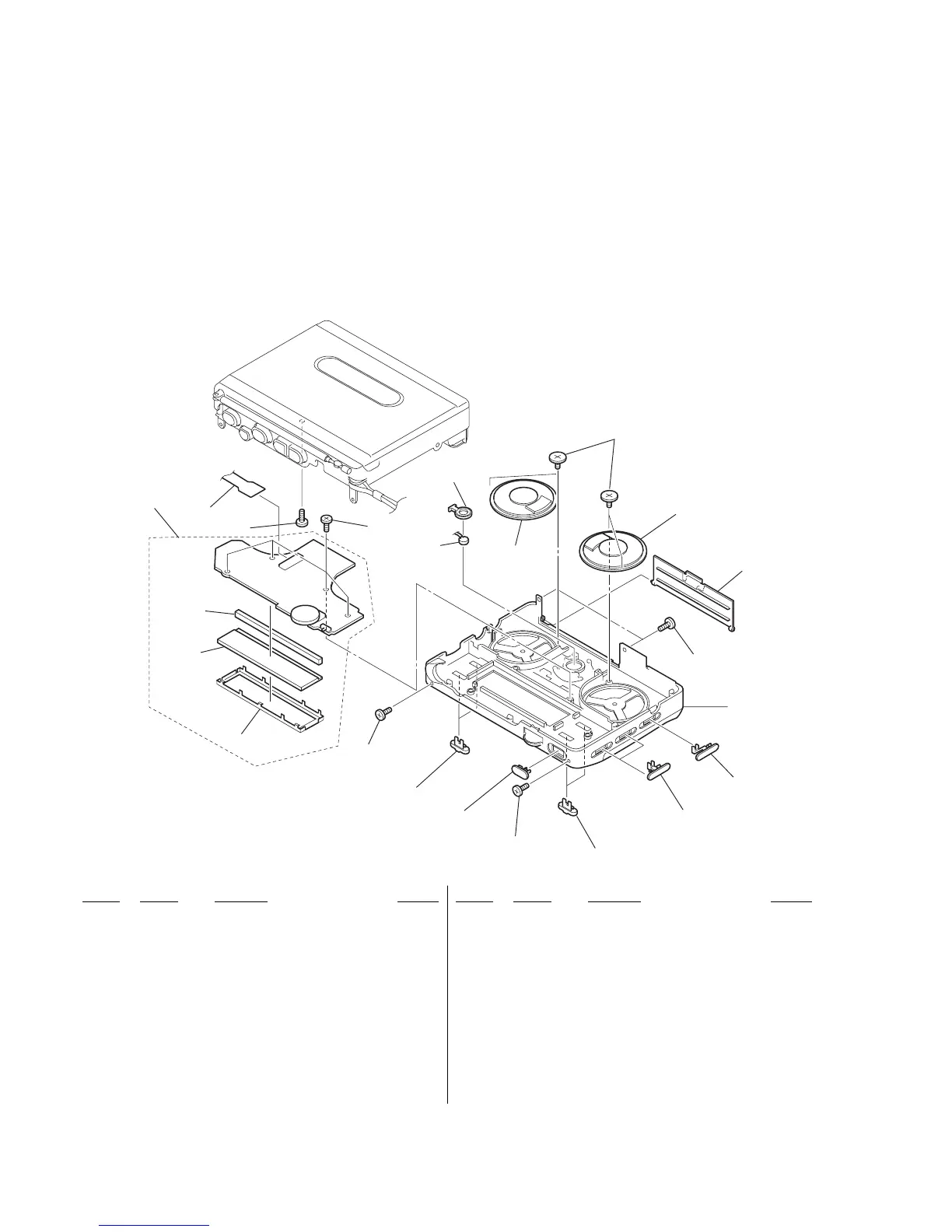

5-1. CABINET (REAR) SECTION
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Hardware (# mark) list and accessories are
given in the last of this parts list.
• Abbreviation
CND : Canadian
EA : Saudi Arabia
CH : Chinese
JEW : Tourist
5E : Indication of country of origin
9E : No Indication of country of origin
11
10 12
9
8
7
5
6
5
3
2
1
12
15
14
13
MIC301
not supplied
SP401
SP402
LCD701
not supplied
1 X-3384-880-1 CABINET FRONT ASSY, SVX (EXCEPT CND,5E)
1 X-3384-881-1 CABINET FRONT ASSY, SVX (CND,5E)
2 3-259-592-01 KNOB (ISS)
3 3-259-589-01 KNOB (B)
5 3-234-449-27 SCREW (M1.4)
6 3-259-591-01 KNOB (PAUSE)
7 3-259-192-01 HOLDER (LCD)
8 3-259-191-01 RUBBER (CONDUCTIVE)
* 9 A-4542-732-A SUB MOUNTED PC BOARD ASSY (JEW)
* 9 A-4542-738-A SUB MOUNTED PC BOARD ASSY (9E)
* 9 A-4542-756-A SUB MOUNTED PC BOARD ASSY (CND,5E)
* 9 A-4542-769-A SUB MOUNTED PC BOARD ASSY (AEP, EA, CH)
10 3-238-876-04 SCREW (M1.4), TOOTHED LOCK
11 1-824-935-11 FLEXIBLE BOARD
12 3-254-082-01 SCREW
13 3-260-572-01 CUSHION (MIC)
14 3-248-626-01 SCREW, TAPPING (B2.0)
15 3-237-125-01 LID, BATTERY CASE
LCD701 1-805-508-11 LIQUID CRYSTAL DISPLAY
MIC301 1-542-571-11 MICROPHONE
SP401 1-825-684-11 SPEAKER (L-CH)
SP402 1-825-684-11 SPEAKER (R-CH)
Ver 1.1
