USE AND MAINTENANCE MANUAL
MANUAL DOUGH SHEETER
Mod. SPT0/1-E - SPT3/1-E
Code
3529.0031.01
Revision A
date 06/09/2011
22 Technical Assistance Service - Phone (+39) 0445.595.111 Arc. 86

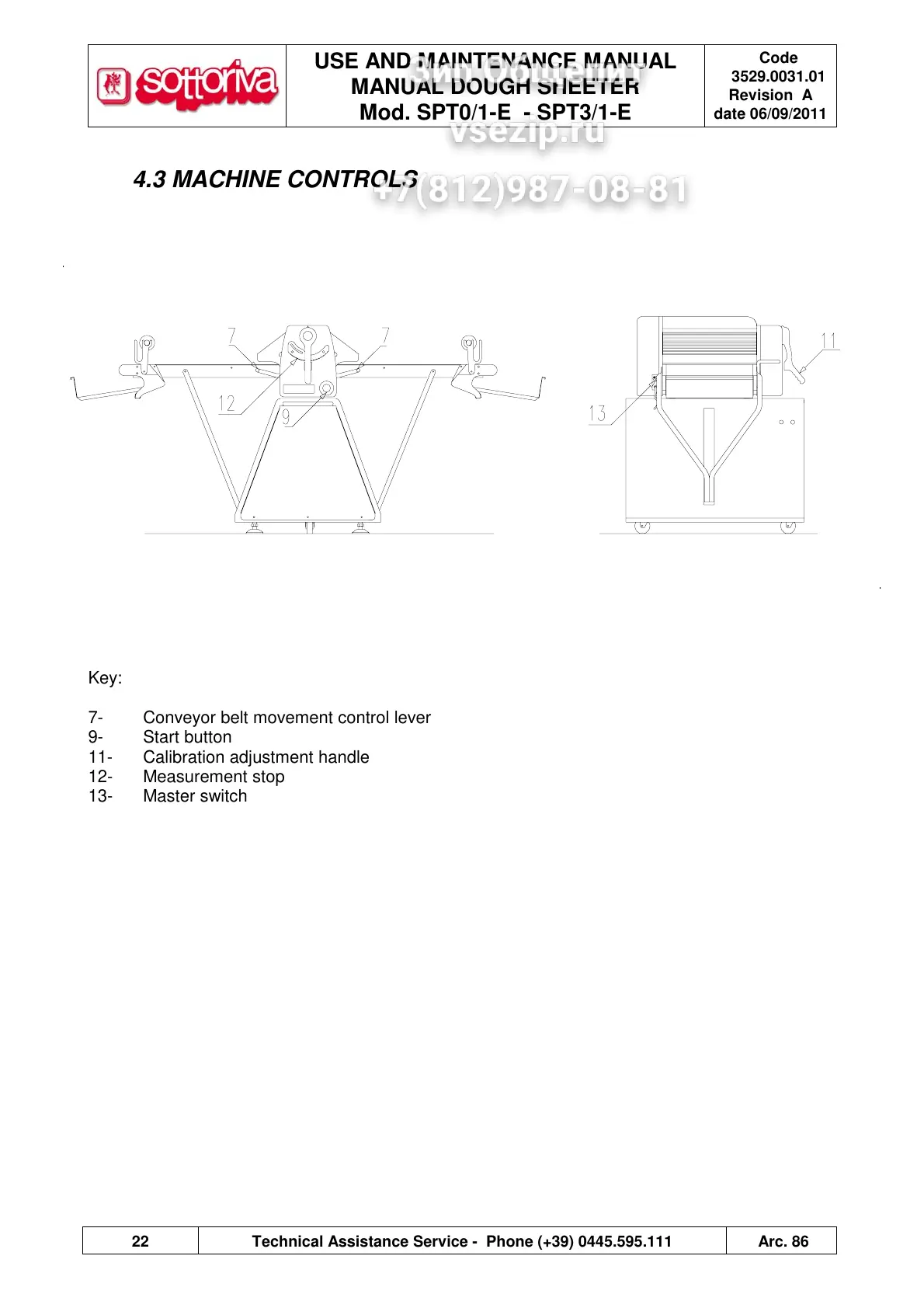

4.3 MACHINE CONTROLS
Key:
7- Conveyor belt movement control lever
9- Start button
11- Calibration adjustment handle
12- Measurement stop
13- Master switch
