Sottoriva SPT0/1-E - Plate N° 5 - Conveyor Belt Unit

USE AND MAINTENANCE MANUAL
MANUAL DOUGH SHEETER
Mod. SPT0/1-E - SPT3/1-E
Code
3529.0031.01
Revision A
date
06/09/2011
Arc. 86 Technical Assistance Service - Phone (+39) 0445.595.111 39

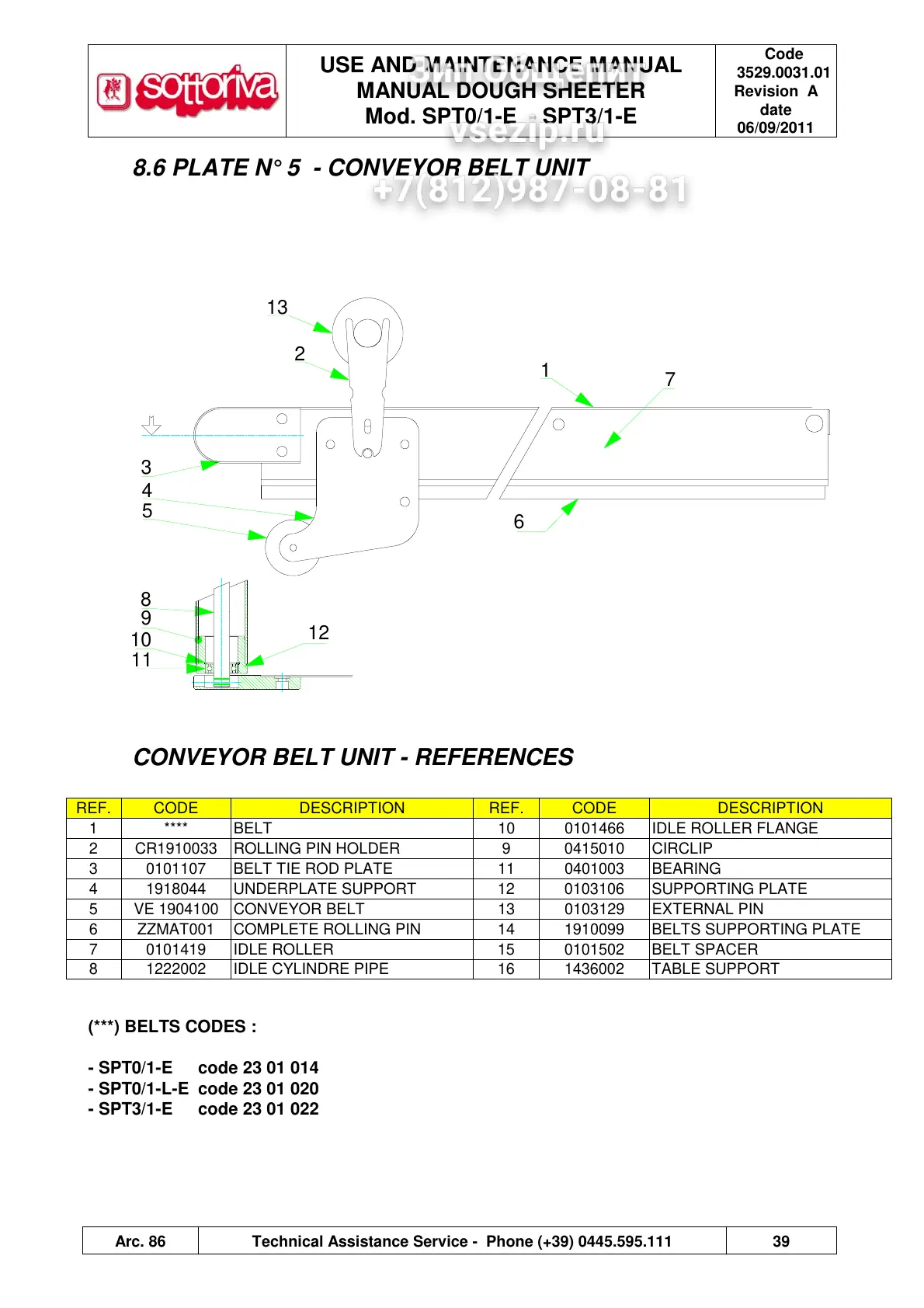

8.6 PLATE N° 5 - CONVEYOR BELT UNIT
CONVEYOR BELT UNIT - REFERENCES
REF. CODE DESCRIPTION REF. CODE DESCRIPTION
1 **** BELT 10 0101466 IDLE ROLLER FLANGE
2 CR1910033 ROLLING PIN HOLDER 9 0415010 CIRCLIP
3 0101107 BELT TIE ROD PLATE 11 0401003 BEARING
4 1918044 UNDERPLATE SUPPORT 12 0103106 SUPPORTING PLATE
5 VE 1904100 CONVEYOR BELT 13 0103129 EXTERNAL PIN
6 ZZMAT001 COMPLETE ROLLING PIN 14 1910099 BELTS SUPPORTING PLATE
7 0101419 IDLE ROLLER 15 0101502 BELT SPACER
8 1222002 IDLE CYLINDRE PIPE 16 1436002 TABLE SUPPORT
(***) BELTS CODES :
- SPT0/1-E code 23 01 014
- SPT0/1-L-E code 23 01 020
- SPT3/1-E code 23 01 022
2
4
8
11
10
9
5
3
1
6
7
12
13
