Sottoriva SPT0/1-E - Plate N° 1 - Structure and Components

USE AND MAINTENANCE MANUAL
MANUAL DOUGH SHEETER
Mod. SPT0/1-E - SPT3/1-E
Code
3529.0031.01
Revision A
date 06/09/2011
34 Technical Assistance Service - Phone (+39) 0445.595.111 Arc. 86

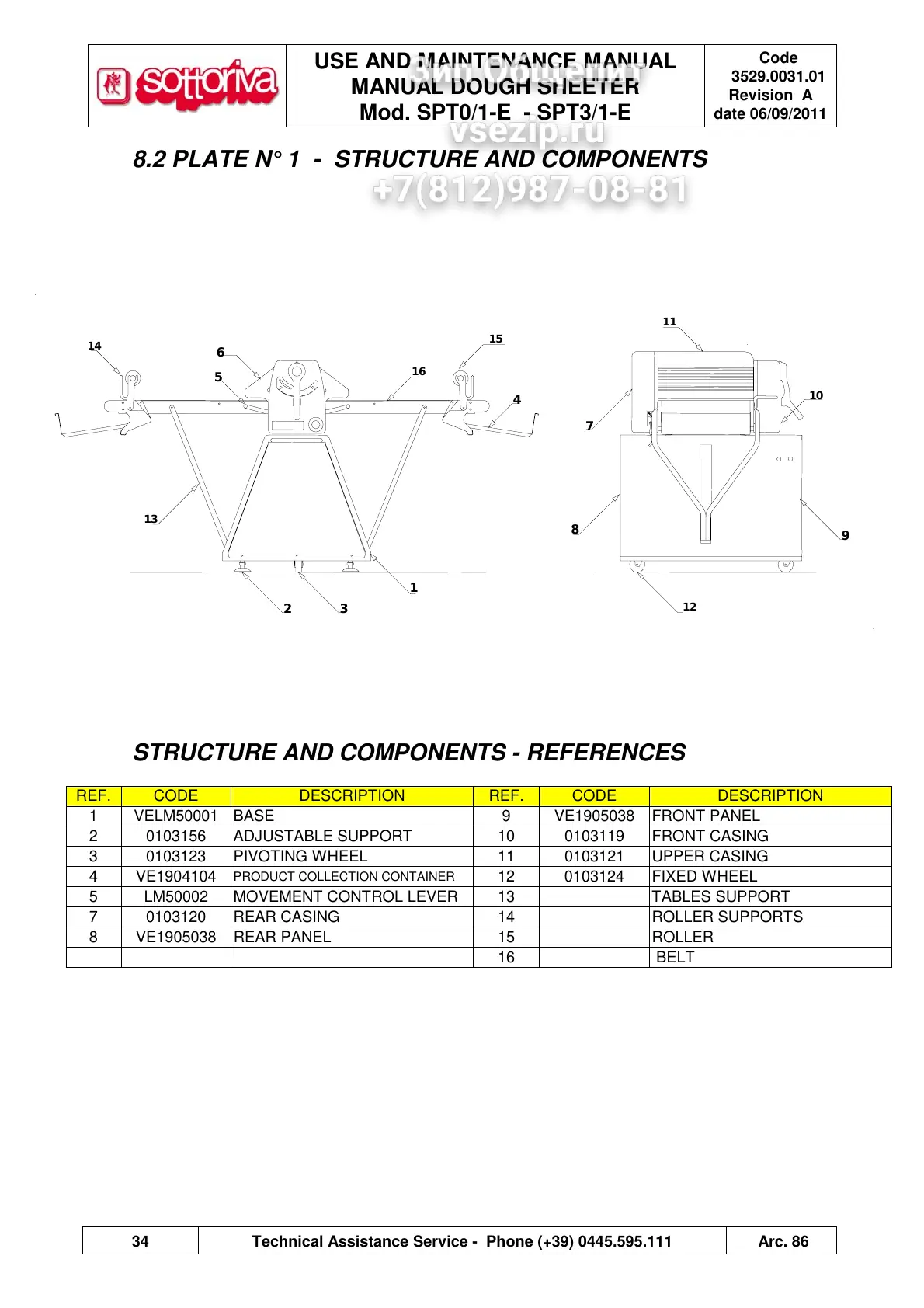

8.2 PLATE N° 1 - STRUCTURE AND COMPONENTS
STRUCTURE AND COMPONENTS - REFERENCES
REF. CODE DESCRIPTION REF. CODE DESCRIPTION
1 VELM50001 BASE 9 VE1905038 FRONT PANEL
2 0103156 ADJUSTABLE SUPPORT 10 0103119 FRONT CASING
3 0103123 PIVOTING WHEEL 11 0103121 UPPER CASING
4 VE1904104
PRODUCT COLLECTION CONTAINER
12 0103124 FIXED WHEEL
5 LM50002 MOVEMENT CONTROL LEVER 13 TABLES SUPPORT
7 0103120 REAR CASING 14 ROLLER SUPPORTS
8 VE1905038 REAR PANEL 15 ROLLER
16 BELT
14
5
2
15
6
10
3
1
16
4
11
7
12
9
8
13
