Sottoriva SPT0/1-E - Tav. N°7 - Scrapers

USE AND MAINTENANCE MANUAL
MANUAL DOUGH SHEETER
Mod. SPT0/1-E - SPT3/1-E
Code
3529.0031.01
Revision A
date 06/09/2011
40 Technical Assistance Service - Phone (+39) 0445.595.111 Arc. 86

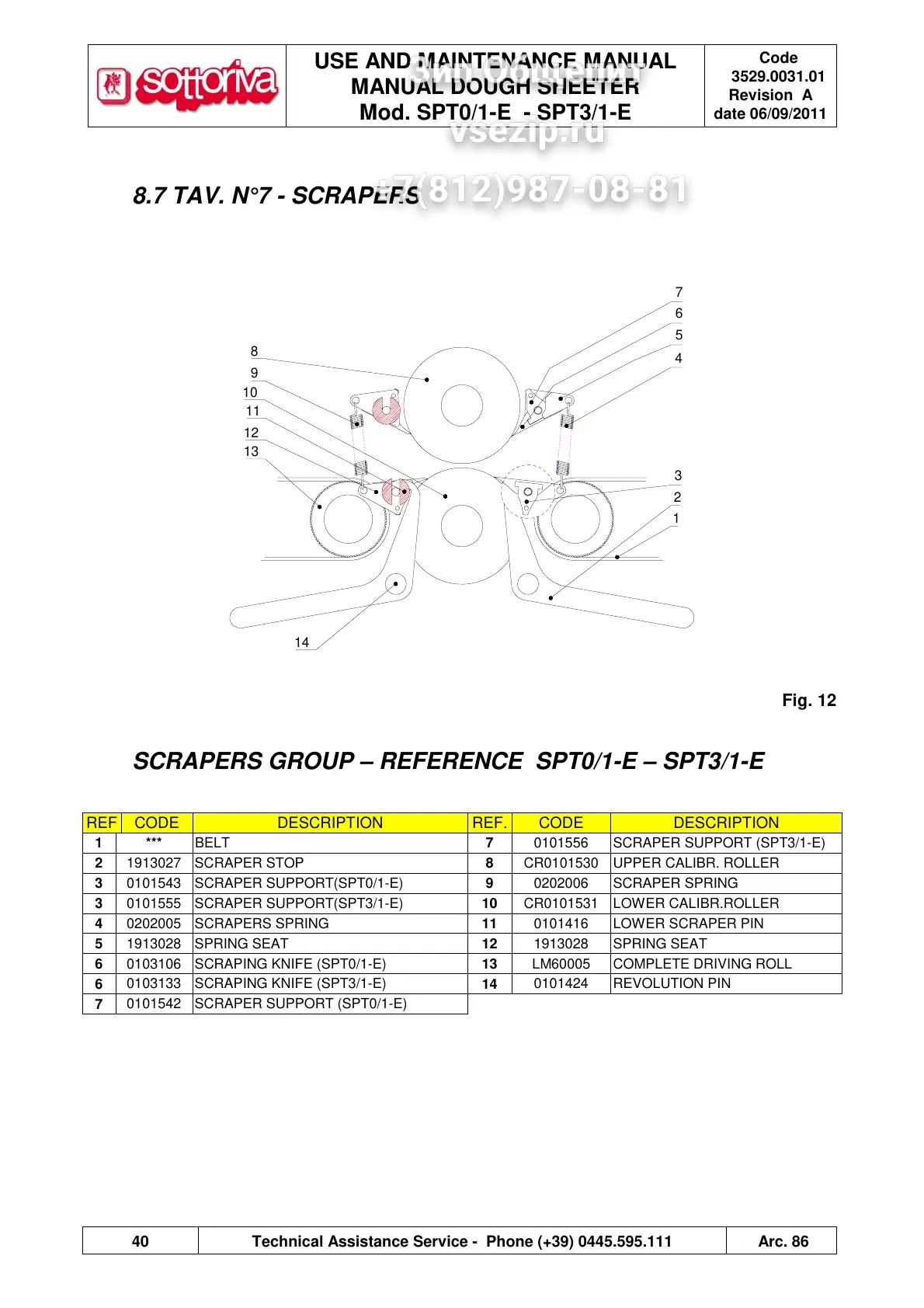

8.7 TAV. N°7 - SCRAPERS
5
4
2
12
14
1
13
6
7
11
3
9
8
10
Fig. 12
SCRAPERS GROUP – REFERENCE SPT0/1-E – SPT3/1-E
REF CODE DESCRIPTION REF. CODE DESCRIPTION
1 ***
BELT
7
0101556 SCRAPER SUPPORT (SPT3/1-E)
2
1913027 SCRAPER STOP
8
CR0101530 UPPER CALIBR. ROLLER
3
0101543 SCRAPER SUPPORT(SPT0/1-E)
9
0202006 SCRAPER SPRING
3
0101555 SCRAPER SUPPORT(SPT3/1-E)
10
CR0101531 LOWER CALIBR.ROLLER
4
0202005 SCRAPERS SPRING
11
0101416 LOWER SCRAPER PIN
5
1913028 SPRING SEAT
12
1913028 SPRING SEAT
6
0103106 SCRAPING KNIFE (SPT0/1-E)
13
LM60005 COMPLETE DRIVING ROLL
6
0103133 SCRAPING KNIFE (SPT3/1-E)
14
0101424 REVOLUTION PIN
7
0101542 SCRAPER SUPPORT (SPT0/1-E)
