Sottoriva SPT0/1-E - Plate N° 4 - Handle Unit

USE AND MAINTENANCE MANUAL
MANUAL DOUGH SHEETER
Mod. SPT0/1-E - SPT3/1-E
Code
3529.0031.01
Revision A
date 06/09/2011
38 Technical Assistance Service - Phone (+39) 0445.595.111 Arc. 86

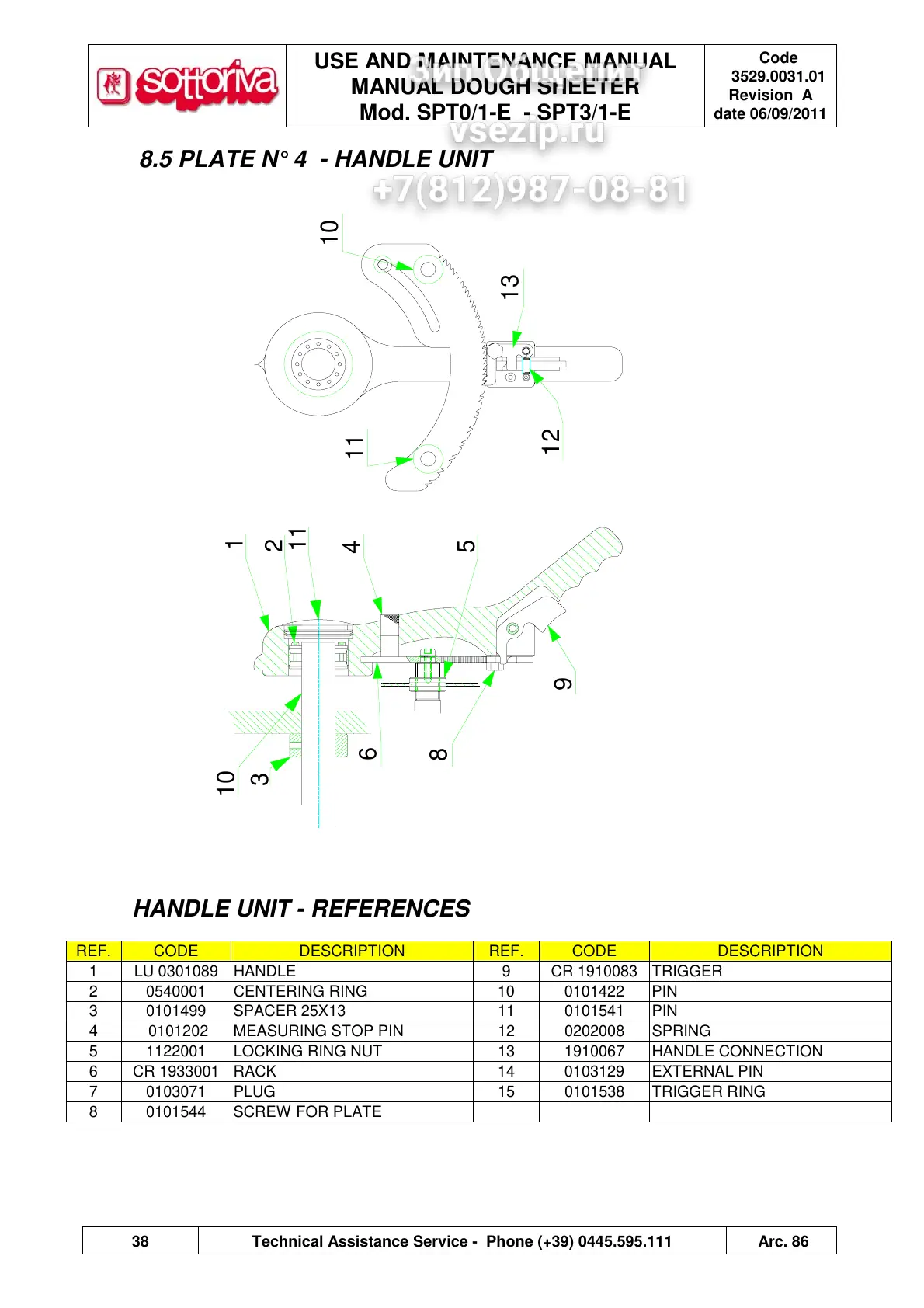

8.5 PLATE N° 4 - HANDLE UNIT
HANDLE UNIT - REFERENCES
REF. CODE DESCRIPTION REF. CODE DESCRIPTION
1 LU 0301089 HANDLE 9 CR 1910083 TRIGGER
2 0540001 CENTERING RING 10 0101422 PIN
3 0101499 SPACER 25X13 11 0101541 PIN
4 0101202 MEASURING STOP PIN 12 0202008 SPRING
5 1122001 LOCKING RING NUT 13 1910067 HANDLE CONNECTION
6 CR 1933001 RACK 14 0103129 EXTERNAL PIN
7 0103071 PLUG 15 0101538 TRIGGER RING
8 0101544 SCREW FOR PLATE
1
2
4
6
5
9
8
13
12
11
10
3
10
11
