Sottoriva SPT0/1-E - Tav. N° 7 - Basement Group

USE AND MAINTENANCE MANUAL
MANUAL DOUGH SHEETER
Mod. SPT0/1-E - SPT3/1-E
Code
3529.0031.01
Revision A
date
06/09/2011
Arc. 86 Technical Assistance Service - Phone (+39) 0445.595.111 41

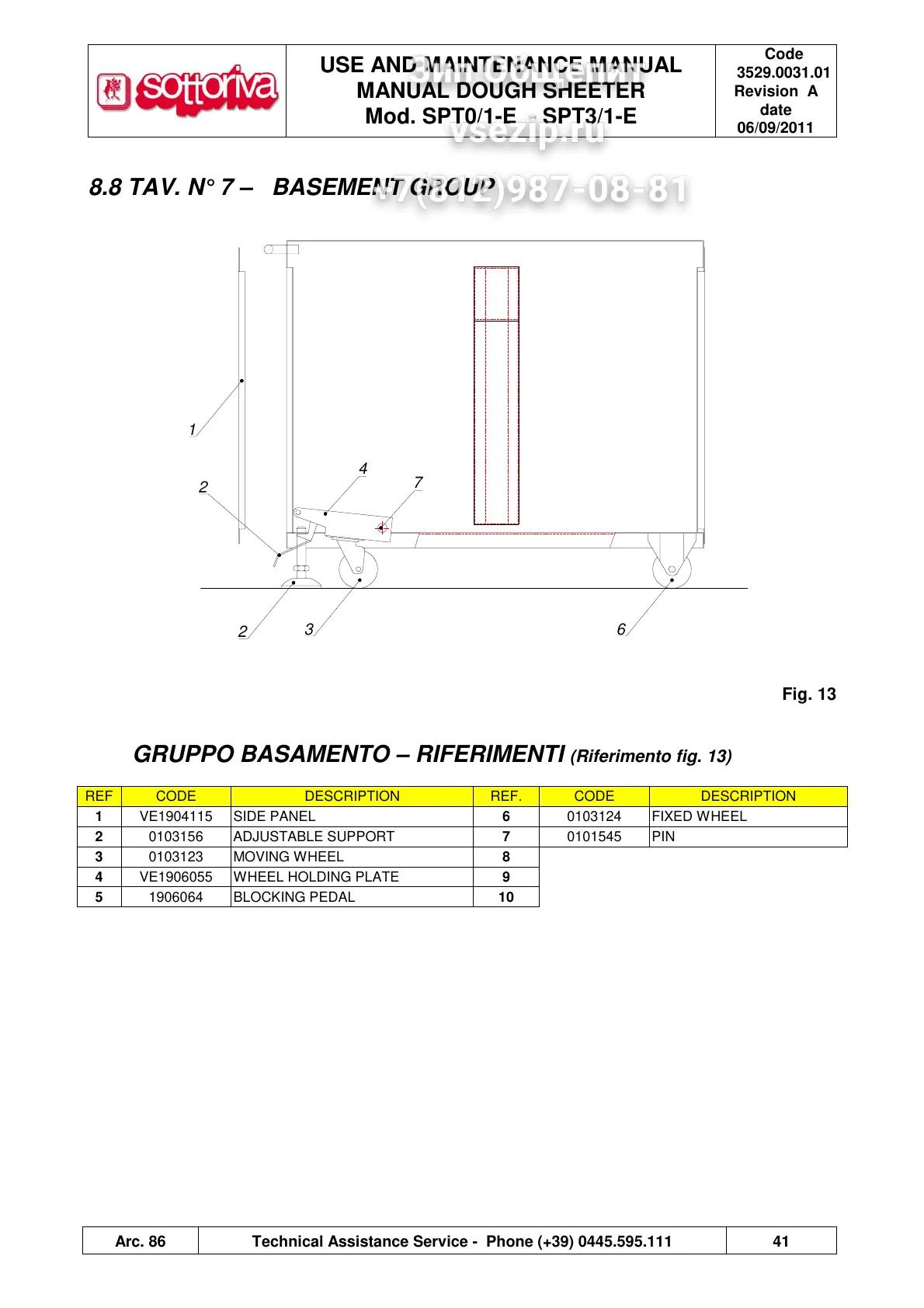

8.8 TAV. N° 7 – BASEMENT GROUP
1
2
3
7
2
4
6
Fig. 13
GRUPPO BASAMENTO – RIFERIMENTI (Riferimento fig. 13)
REF CODE DESCRIPTION REF. CODE DESCRIPTION
1
VE1904115 SIDE PANEL
6
0103124 FIXED WHEEL
2
0103156 ADJUSTABLE SUPPORT
7
0101545 PIN
3
0103123 MOVING WHEEL
8
4
VE1906055 WHEEL HOLDING PLATE
9
5
1906064 BLOCKING PEDAL
10
