So how does audio get mixed ?So how does audio get mixed ?
So how does audio get mixed ?So how does audio get mixed ?
So how does audio get mixed ?

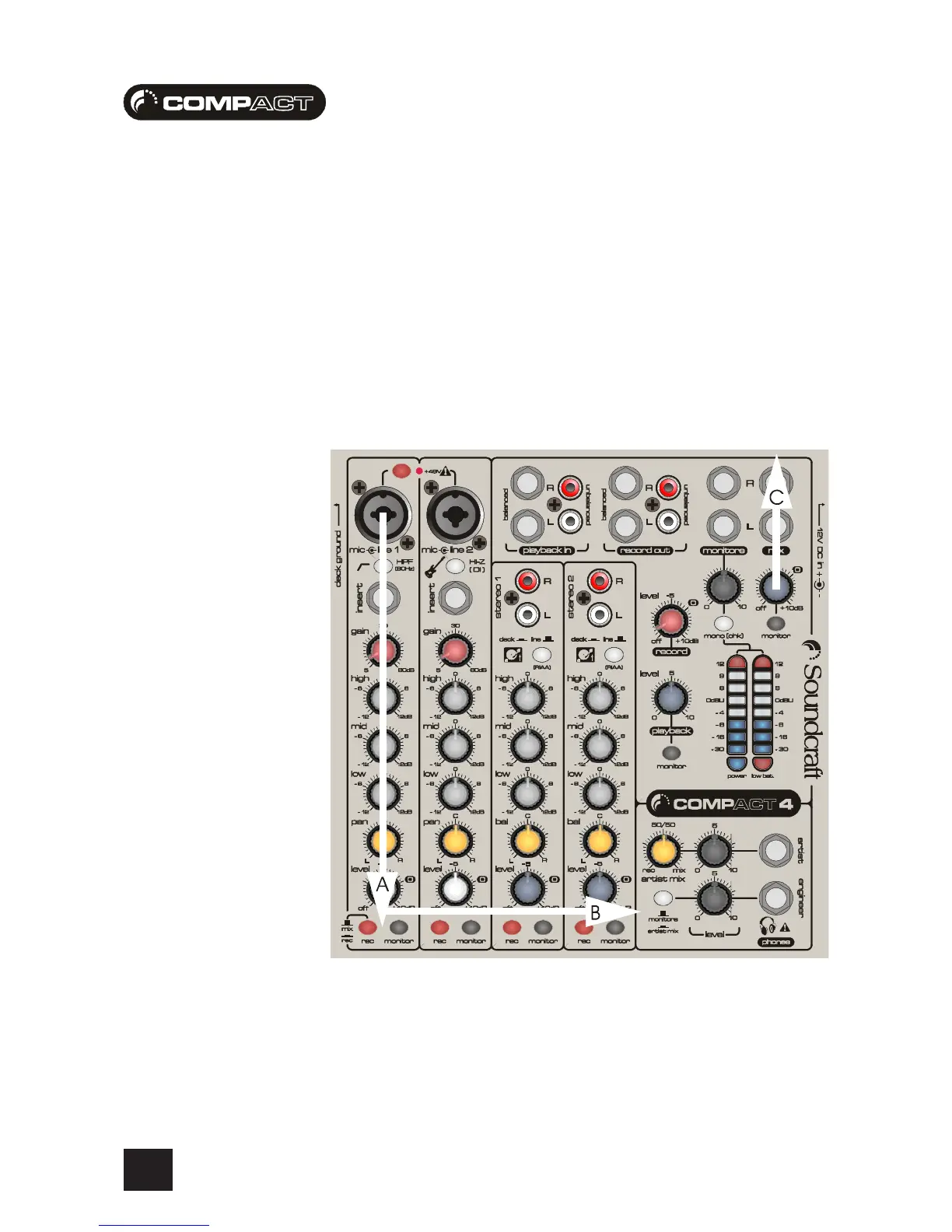

The audio path shown below covers :
A - The input channel path from the microphone input to the mix bus (where all the
signals are mixed together). Remember this is a stereo signal.
B - The mix bus from input channel level to mix output level
C - The mix output level control to the mix outputs
