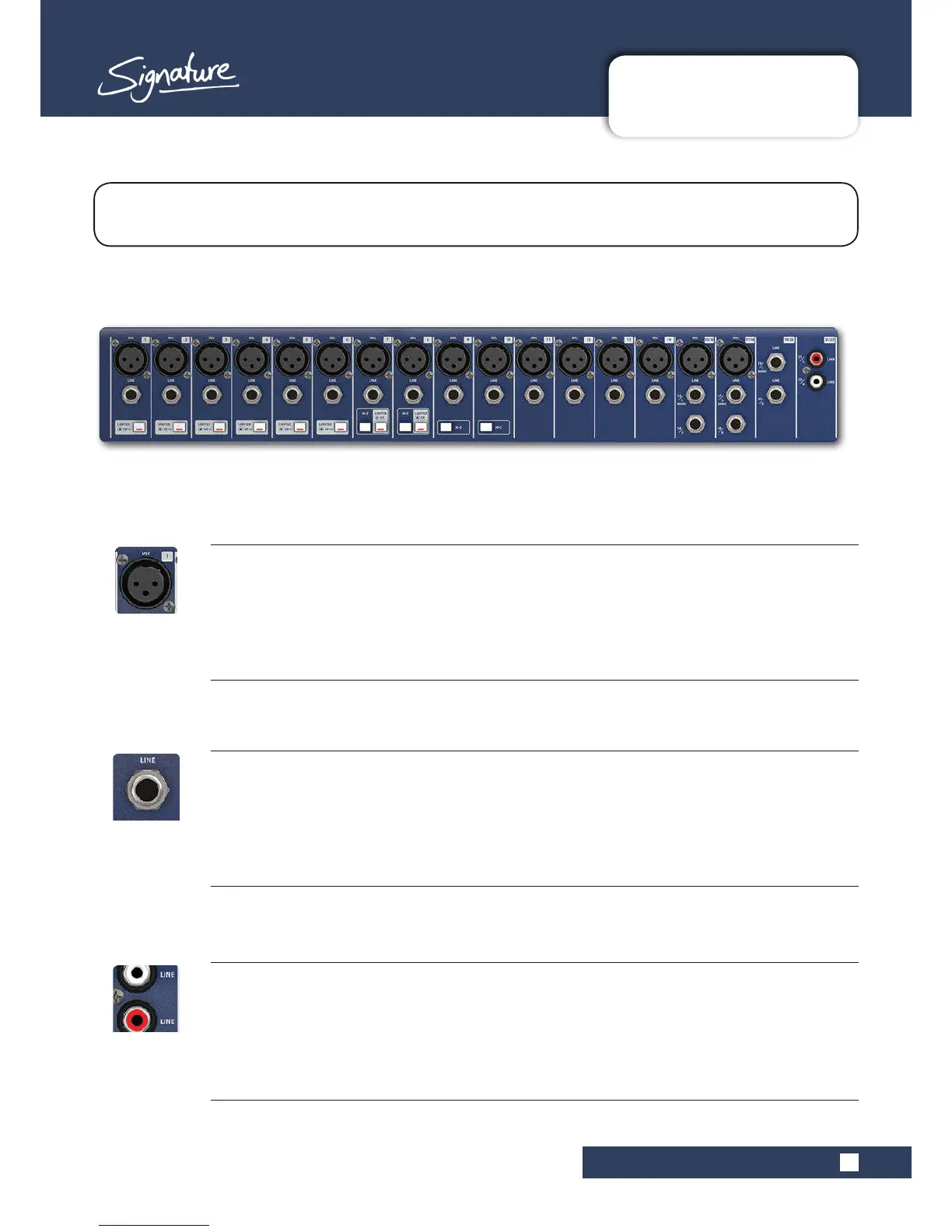

3.2: CONSOLE INPUTS
INPUTS & OUTPUTS > CONSOLE INPUTS
3.2: CONSOLE INPUTS
Mic Input - XLR
Input connection for microphones using standard XLR connection (Pin-2 hot)
When using condenser microphones, you can switch on 48V phantom power for these connections on the right
hand side of the console (the 48V button). It's best practise not to use phantom power with unbalanced or instru-
ment inputs, switching it o BEFORE unplugging and switching it on AFTER plugging in.
Line Input - Jack
Balanced line-level connection for all other inputs
A Hi-Z option is provided on selected channels, required by high output impedance sources, such as guitar
pick-ups (when connecting a guitar directly to the mixer).
Line Input - RCA
Unbalanced input for line level/consumer playback equipment and instruments
Console inputs can be used for a wide variety of sources. For best results always use the appropriate
input connection.

SoundCraft Signature 22MTK Specifications

General

Channels	22
Lexicon Effects	Yes
dbx Limiters	Yes, on input channels
Ghost Preamps	Yes
Faders	100mm
Power Supply	Internal
Type	Analog mixer
Phantom Power	Yes
Inputs - Line	22
Computer Connectivity	USB
Aux Sends	5
Inputs - Mic Preamps	16 x XLR
Inputs - Other	2 x RCA
Outputs - Main	2 x XLR, 2 x 1/4"
Outputs - Other	6 x Aux Send, 1 x Headphone
Weight	11.34 kg
USB Interface	24-in/22-out USB audio interface
