SoundCraft Signature 22MTK User Manual

GRP 1 / GRP 2 / GRP 3 / GRP 4
Group 1, 2, 3, and 4 outputs - Quarter-inch Jack
Line level output, TRS Jack. Impedance balanced.
16, 22, 22MTK User Manual

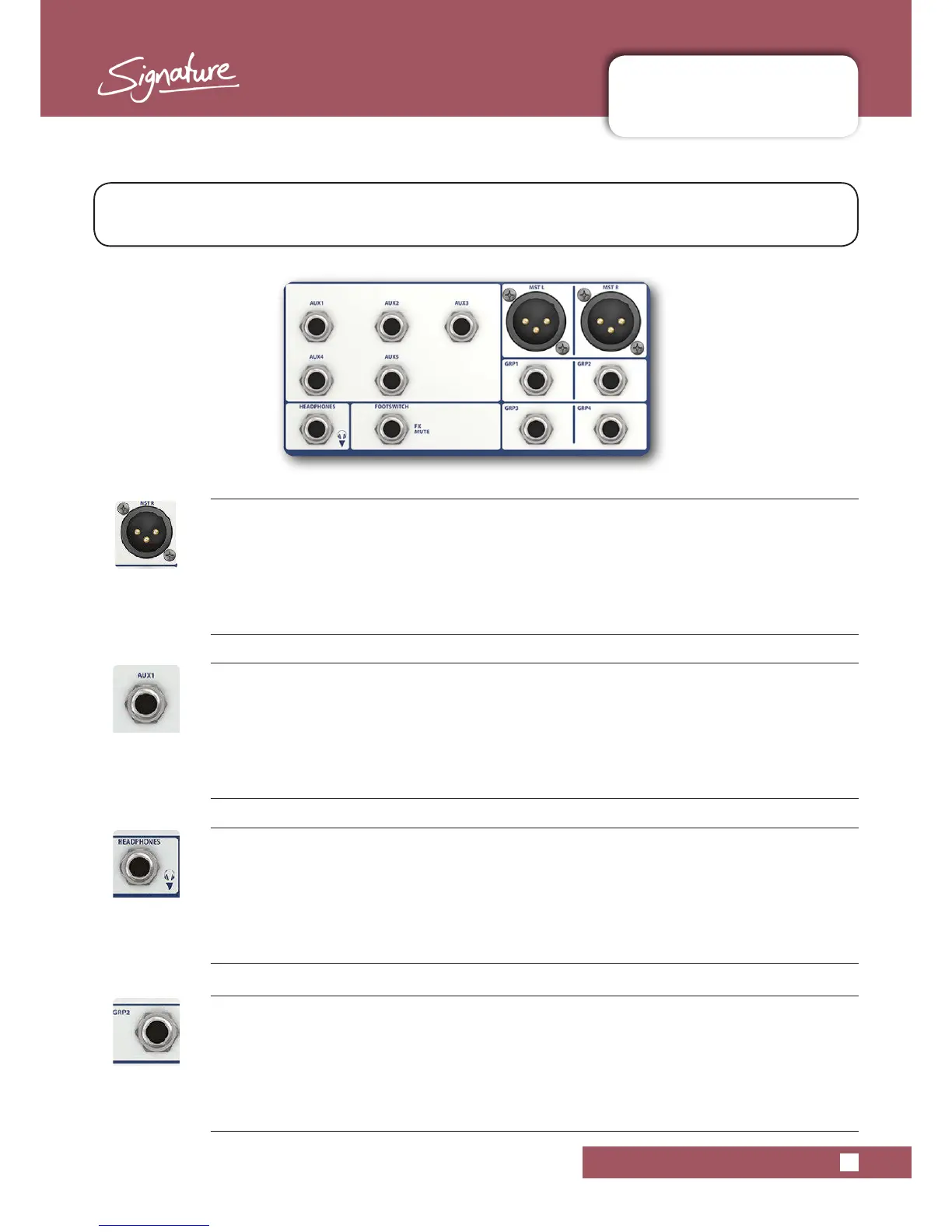

3.3: CONSOLE OUTPUTS
INPUTS & OUTPUTS > CONSOLE OUTPUTS
3.3: CONSOLE OUTPUTS
MST L / MST R
Master Left and Right outputs, XLR connectors
These are impedance-balanced line level outputs (pin 2 signal). The XLR outputs are labelled 'MST L' and MST R',
which refers to Master Left and right outputs of the main stereo output. These should be connected to the input
of your amplifier, PA system, recorder, or similar.
AUX 1 / AUX 2 / AUX 3
Auxiliary output connectors - quarter-inch Jack
Line level output, TRS Jack. Impedance balanced.
HEADPHONES
Stereo headphone output - quarter-inch TRS Jack
The headphone signal is always the Master Stereo Output unless a Solo (PFL or AFL) is activated. In that case, the
headphone output is switched to the Solo Bus.
The console outputs offer a range of connection options depending on the application. Always
consider carefully the best output and routing strategy for your particular application.

SoundCraft Signature 22MTK Specifications

General

Channels	22
Lexicon Effects	Yes
dbx Limiters	Yes, on input channels
Ghost Preamps	Yes
Faders	100mm
Power Supply	Internal
Type	Analog mixer
Phantom Power	Yes
Inputs - Line	22
Computer Connectivity	USB
Aux Sends	5
Inputs - Mic Preamps	16 x XLR
Inputs - Other	2 x RCA
Outputs - Main	2 x XLR, 2 x 1/4"
Outputs - Other	6 x Aux Send, 1 x Headphone
Weight	11.34 kg
USB Interface	24-in/22-out USB audio interface
