16, 22, 22MTK User Manual
4.5: GROUP MASTER
CONSOLE ROUTING > GROUP MASTER

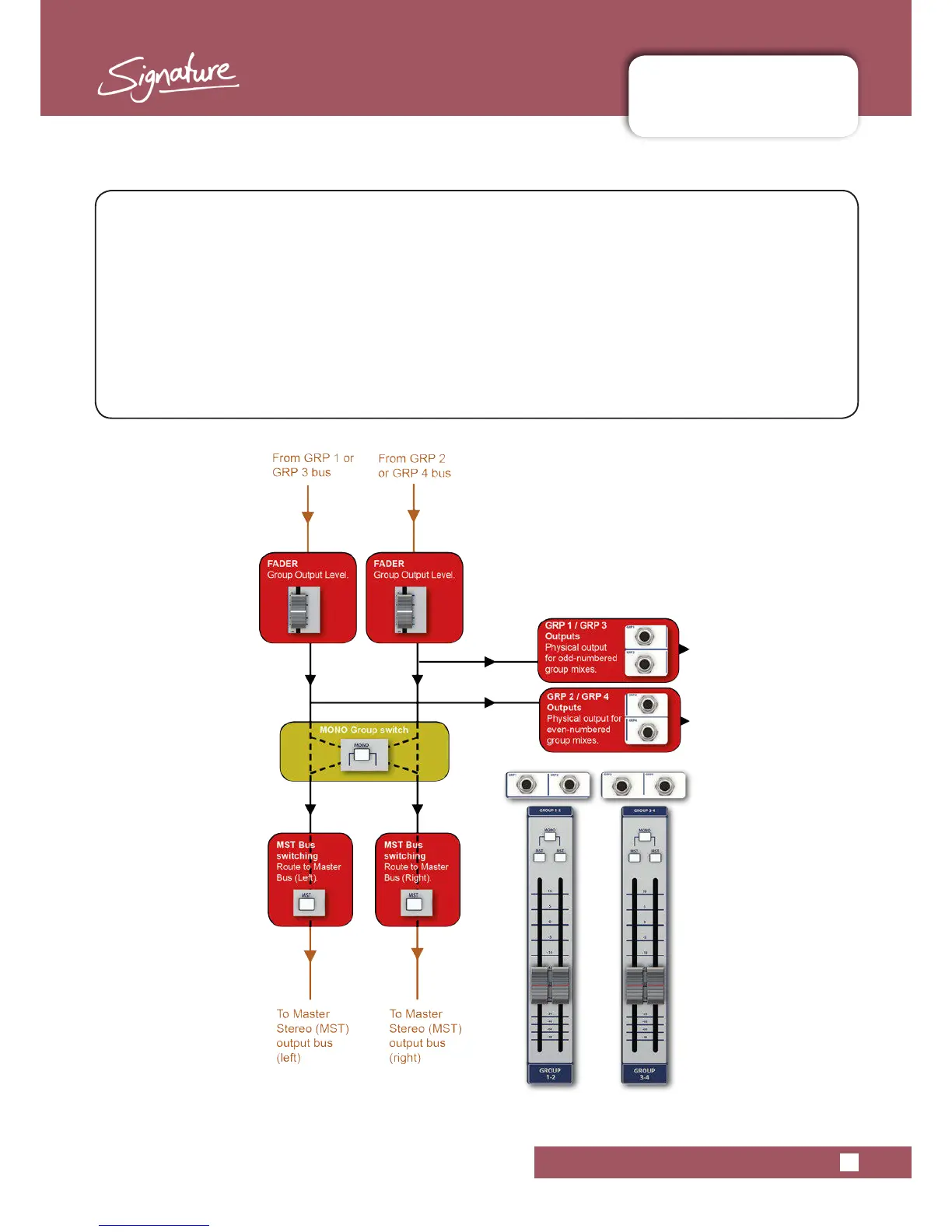

4.5: GROUP MASTER ROUTING
The Group Master Outputs are derived from the post fade, post pan sum of input channels routed to
the corresponding Group busses (1-2 and 3-4 switches).
The Group Masters can contribute to the Master Left/Right Bus.
A useful example of this in practise might be where a group of related input channels (drum mics,
backing singers, and so on) are mixed relative to each other, then routed to GRP 1-2 (but not to
MST). If the Group Masters are then in turn routed to the Master Left/Right output you can adjust the
level of the whole group within the main mix by using the Group 1 and 2 faders.

SoundCraft Signature 22MTK Specifications

General

Channels	22
Lexicon Effects	Yes
dbx Limiters	Yes, on input channels
Ghost Preamps	Yes
Faders	100mm
Power Supply	Internal
Type	Analog mixer
Phantom Power	Yes
Inputs - Line	22
Computer Connectivity	USB
Aux Sends	5
Inputs - Mic Preamps	16 x XLR
Inputs - Other	2 x RCA
Outputs - Main	2 x XLR, 2 x 1/4"
Outputs - Other	6 x Aux Send, 1 x Headphone
Weight	11.34 kg
USB Interface	24-in/22-out USB audio interface
