8.0: LEXICON FX
LEXICON FX
8:0 LEXICON FX
The Signature 16 console has one internal FX processor, and the Signature 22 and 22MTK consoles
have two (FX 1, FX 2) - with dedicated internal send and return routing. There are 22 different FX
algorithms available, each with two adjustable parameters mapped to the PARAM 1 and PARAM 2
controls.

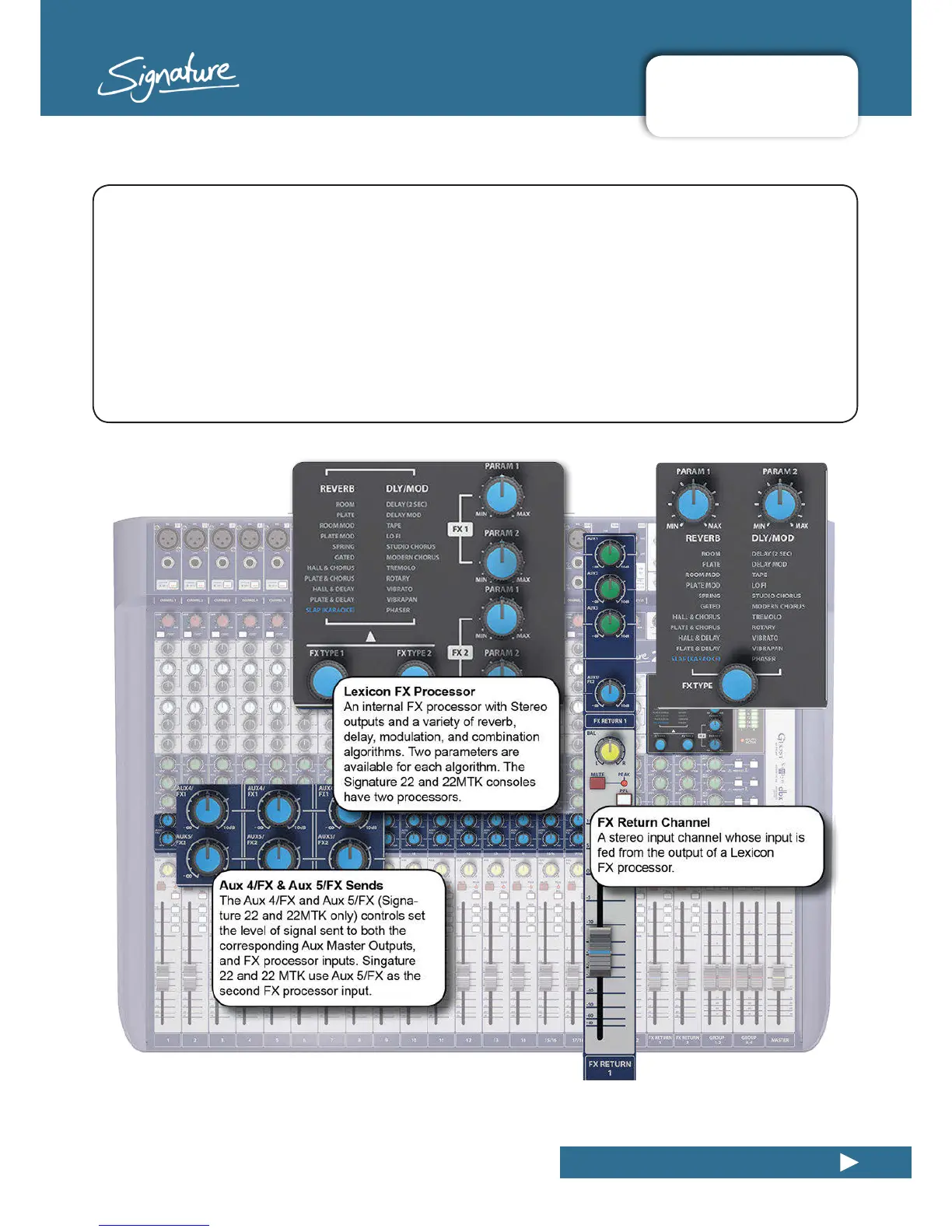

For FX 1, Aux 4/FX Sends control input channel contributions to both the FX processor and the Aux 4
output. For FX 2 (Signature 22 and 22MTK only), Aux 5/FX Sends control input channel contributions
to both the FX 2 processor and the Aux 5 output.
An FX Return channel is a hard-wired stereo return channel for the output of the FX processor.
Signature 22 and 22 MTK consoles have two FX Return channels - one for each processor.

SoundCraft Signature 22MTK Specifications

General

Channels	22
Lexicon Effects	Yes
dbx Limiters	Yes, on input channels
Ghost Preamps	Yes
Faders	100mm
Power Supply	Internal
Type	Analog mixer
Phantom Power	Yes
Inputs - Line	22
Computer Connectivity	USB
Aux Sends	5
Inputs - Mic Preamps	16 x XLR
Inputs - Other	2 x RCA
Outputs - Main	2 x XLR, 2 x 1/4"
Outputs - Other	6 x Aux Send, 1 x Headphone
Weight	11.34 kg
USB Interface	24-in/22-out USB audio interface
