Power
A standard IEC60320 C14 male plug for use with a C13 female plug
Rated at 110 - 240V, 50Hz-60Hz. The Power connector is located on the underside of the Signature console.
16, 22, 22MTK User Manual

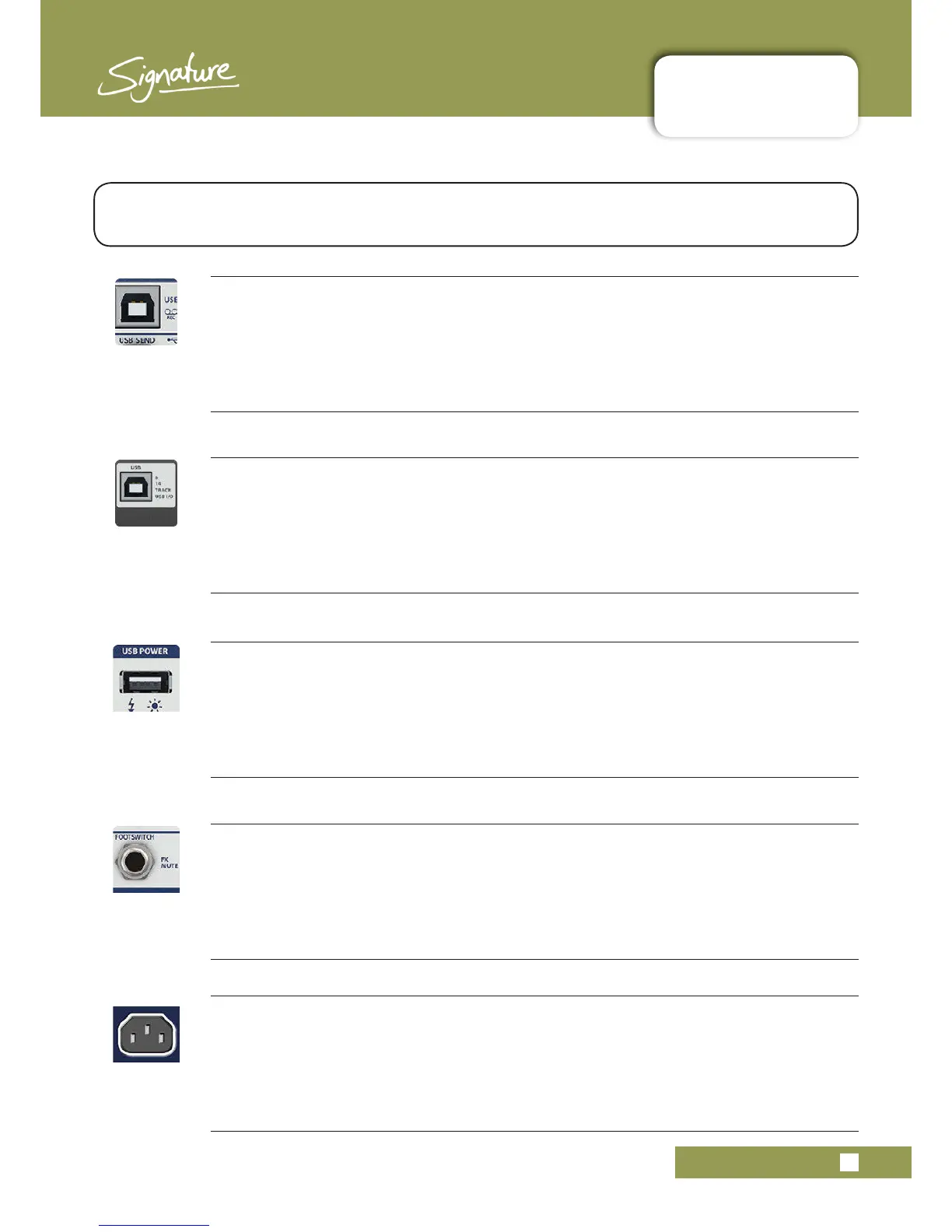

3.4: OTHER I/O
INPUTS & OUTPUTS > OTHER I/O
3.4: OTHER I/O
USB - Signature 22MTK (24 Track I/O)
USB data connection for audio input and output
The Signature MTK (MultiTrack) console uses the USB port to send post gain direct outputs from all input chan-
nels and optionally return those channels to the same input channel. This is, in eect, a USB insert or tape return
path for all input channels. USB output channels 23 and 24 are used for the Master Stereo (MST) output. For
more detail, please see section 7.
USB - Signature 16 and 22
USB data connection for audio input and output
USB input (USB channels 1 and 2) are summed with the RCA input signal on the highest-numbered stereo input
channel. The USB output is taken either from the Master Stereo output (MST) or the Aux 1-2 output (according to
selector switch next to USB connector). For more detail on this feature, please see section 7.
USB POWER
For attaching powered/chargeable USB peripherals
Examples include a USB-powered LED lamp, or a mobile phone. Not for data. This connection supplies USB 2.0
compliant 500mA. Devices that draw more than this amount should not be connected.
FOOTSWITCH
Connect a TRS foot switch for FX Mute functionality
Various foot switches are available, depending on the specific functionality you require. Connecting Tip and Ring
('Make') will mute the internal FX.
The console outputs offer a range of connection options depending on the application. Always
consider carefully the best output and routing strategy for your particular application.
