4.2: STEREO INPUT
CONSOLE ROUTING > STEREO INPUT

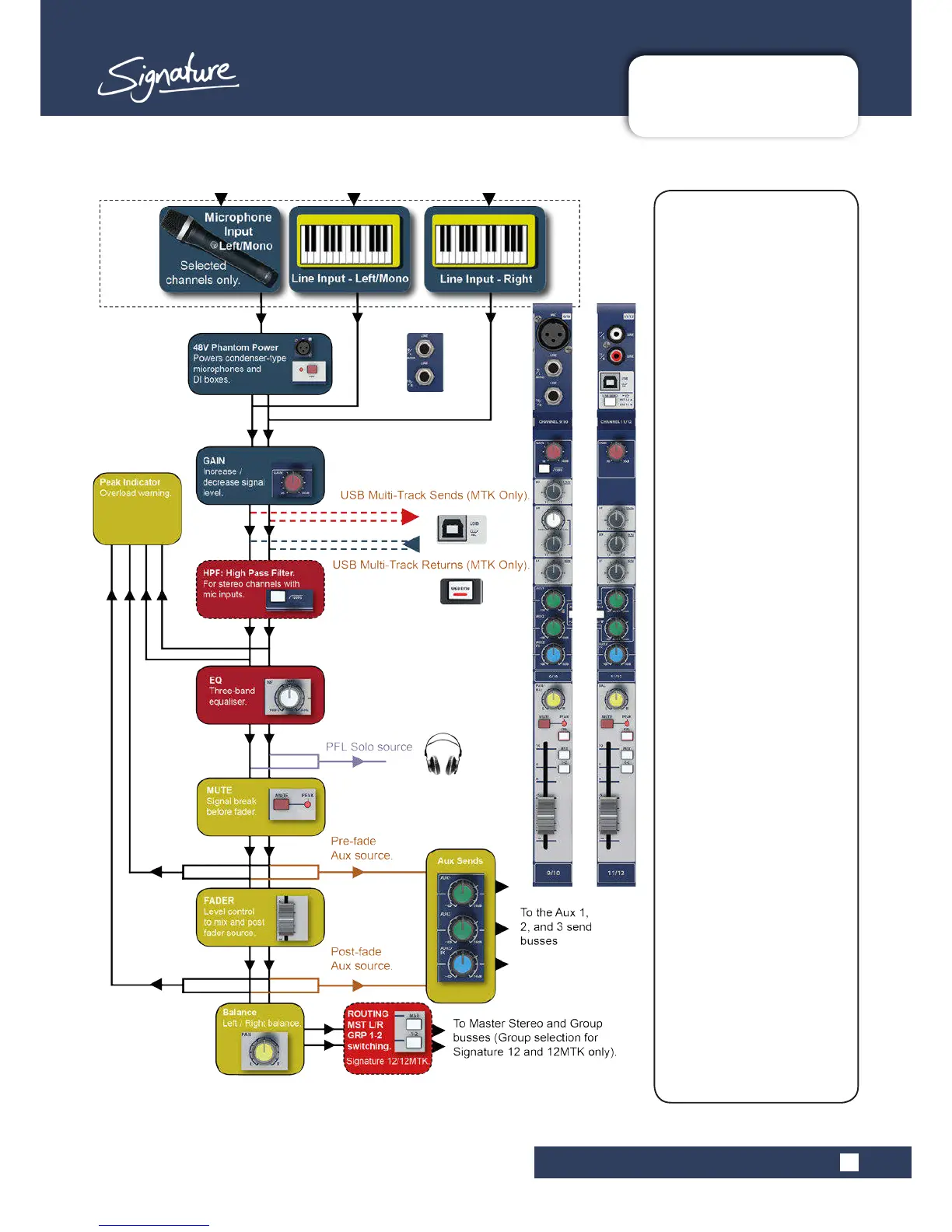

4.2: STEREO INPUT ROUTING
There are two types of
Stereo input channel.
The lower-numbered
stereo input channels
have microphone
inputs and Jack inputs
and can be used as
mono input channels
(odd-numbered input) if
required. On Signature
22 and 22MTK Stereo
channel 19/20 doesn’t
have a mic input.
The highest-numbered
Stereo input is a sum of
the line level R inputs
and the stereo USB
input (if present). This
is the playback channel
and works with the
INTERVAL MUTE
function for convenient
2-track playback
functionality.
Stereo input channels
have the same routing
options as mono input
channels. Aux bus
contributions from
stereo channels are
made from a sum of the
left and right signals.
Group bus contribu-
tions are balanced /
panned left and right
to the corresponding
odd-numbered and
even-numbered group
respectvely. In other
words - fully left would
be fully Group 1 or
Group 3.

SoundCraft Signature 22MTK Specifications

General

Channels	22
Lexicon Effects	Yes
dbx Limiters	Yes, on input channels
Ghost Preamps	Yes
Faders	100mm
Power Supply	Internal
Type	Analog mixer
Phantom Power	Yes
Inputs - Line	22
Computer Connectivity	USB
Aux Sends	5
Inputs - Mic Preamps	16 x XLR
Inputs - Other	2 x RCA
Outputs - Main	2 x XLR, 2 x 1/4"
Outputs - Other	6 x Aux Send, 1 x Headphone
Weight	11.34 kg
USB Interface	24-in/22-out USB audio interface
