16, 22, 22MTK User Manual

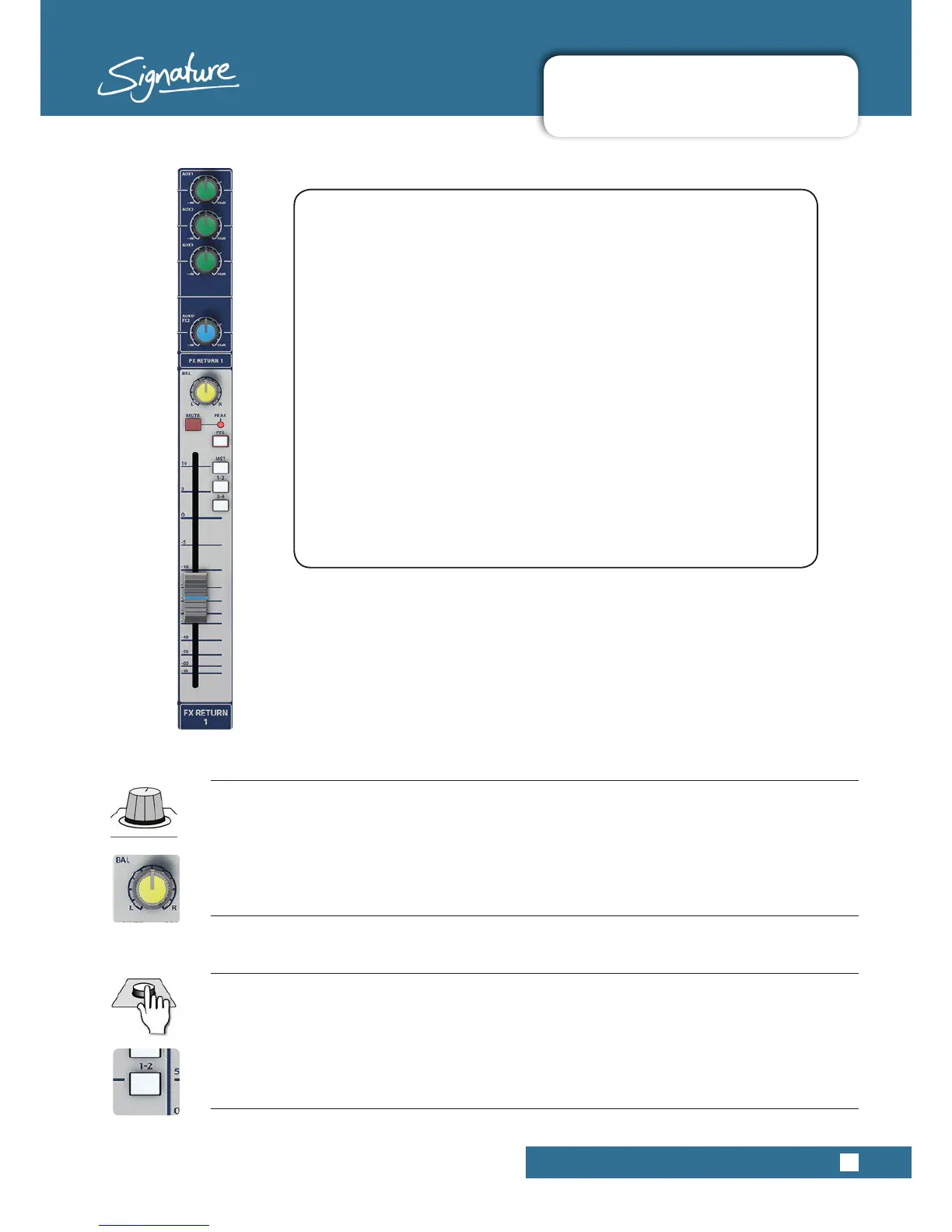

5.1.3: FX RETURN CONTROLS
CHANNEL CONTROLS > FX RETURN CONTROLS
5.1.2: FX RETURN CONTROLS
A stereo FX Return channel is fed from the output of its internal
FX processor. The Signature 16 has one FX Return channel and
one FX processor. The Signature 22 and 22MTX have two. The
FX Return channel is a cut-down version of the normal stereo
channel, without trim, EQ, or an Aux send path back to its own
processor’s send bus (FX Return 1 does not have an Aux4/FX
send).
An example in use might be running a Reverb algorithm in the
processor (FX 1 for Signature 22 and 22MTX). Each individual
channel’s Aux 4/FX control will control how much of that source is
presentinthereverberanteldgeneratedbytheprocessor;the
FX return fader will then control the level of that whole reverberant
eldinthemixesitisroutedto(MainStereoBus,Group1-2,3-4).
FX send is always post-fade so an input channel’s contribution
tothatreverberanteldwillbeproportionaltothatchannel’s
contribution to a mix.
BAL
Adjust stereo balance for this channel
Adjusts the relative levels of the left and right signals for this channel, eectively adjusting the left-right position
of the overall stereo image when routed to MST. The balance is also adjusted across group pairs when the channel
is routed to groups 1-2 or 3-4.
GRP 1-2 / 3-4
Route the channel output to Group busses
The channel's PAN/BAL or BAL control determines the proportion of the signal across group pairs.
