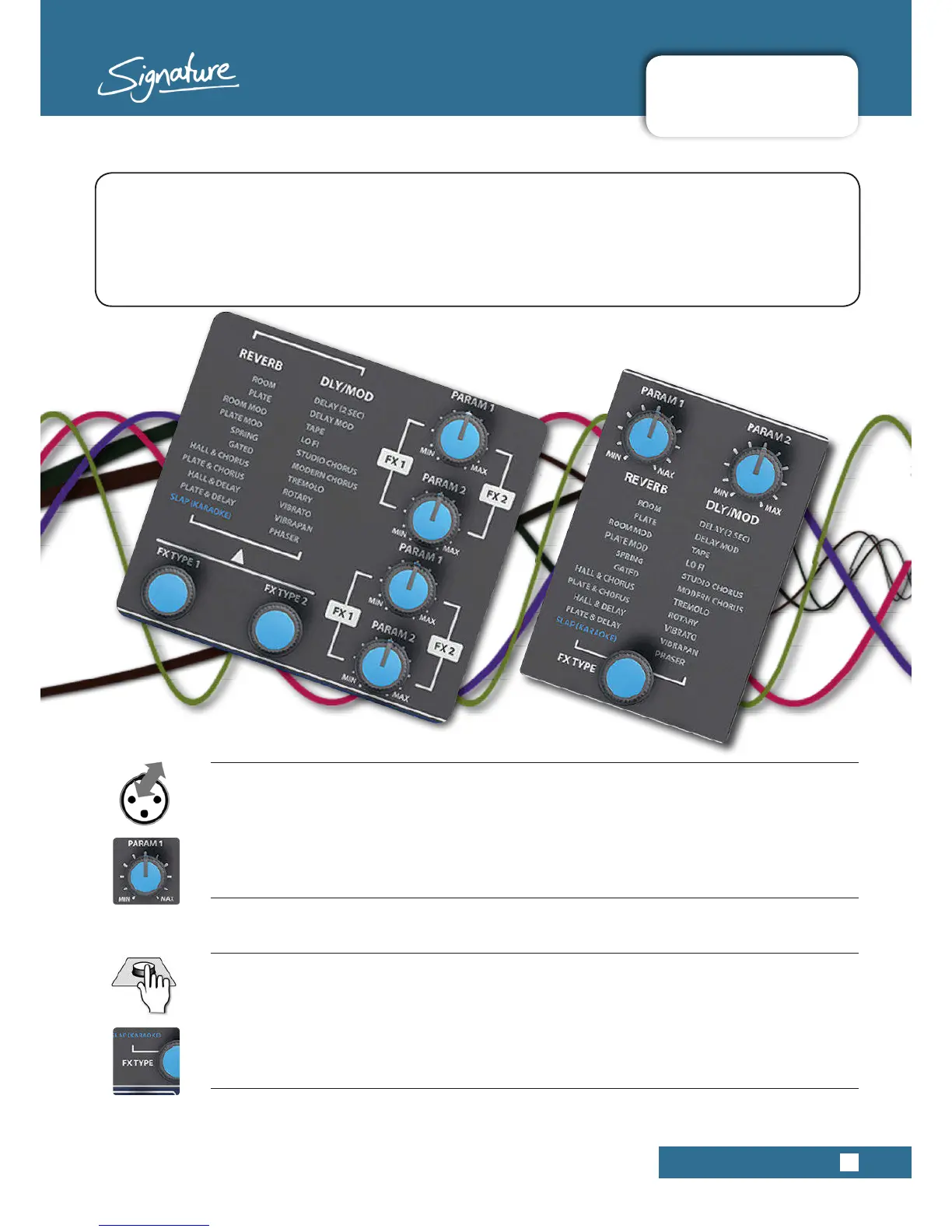

8.1 FX CONTROL
LEXICON FX > FX CONTROL
8.1: FX CONTROL
FX TYPE
Select an FX algorithm (Press to activate)
The selected algorithm will be highlighted in white and loaded upon pressing the encoder. PARAM 1 and PARAM
2 encoders will be assigned to the appropriate FX parameters. Please see section 8.2 for more detailed algorithm
descriptions.
BecauseanInternalFXprocessorhasxedrouting,operationisverysimple.
TousetheFX,simplyturnupanactiveinputchannel’sAux/FXsendcontrol;withtheFXTYPEencod-
erselectanappropriatealgorithmandpresstheencodertoactivate;pushuptheFXReturnchannel
fader. You must ensure that the FX Return output routing is correctly for the application - MST / GRP
1-2 / GRP 3-4.
PARAM 1 / PARAM 2
Adjust FX parameters mapped to these controls
Dierent FX algorithms require dierent parameters for control. When you select a new algorithm, those
parameters are assigned to the PARAM 1 and PARAM 2 controls. For a list of the parameters used for dierent
algorithms, please see section 8.2.
