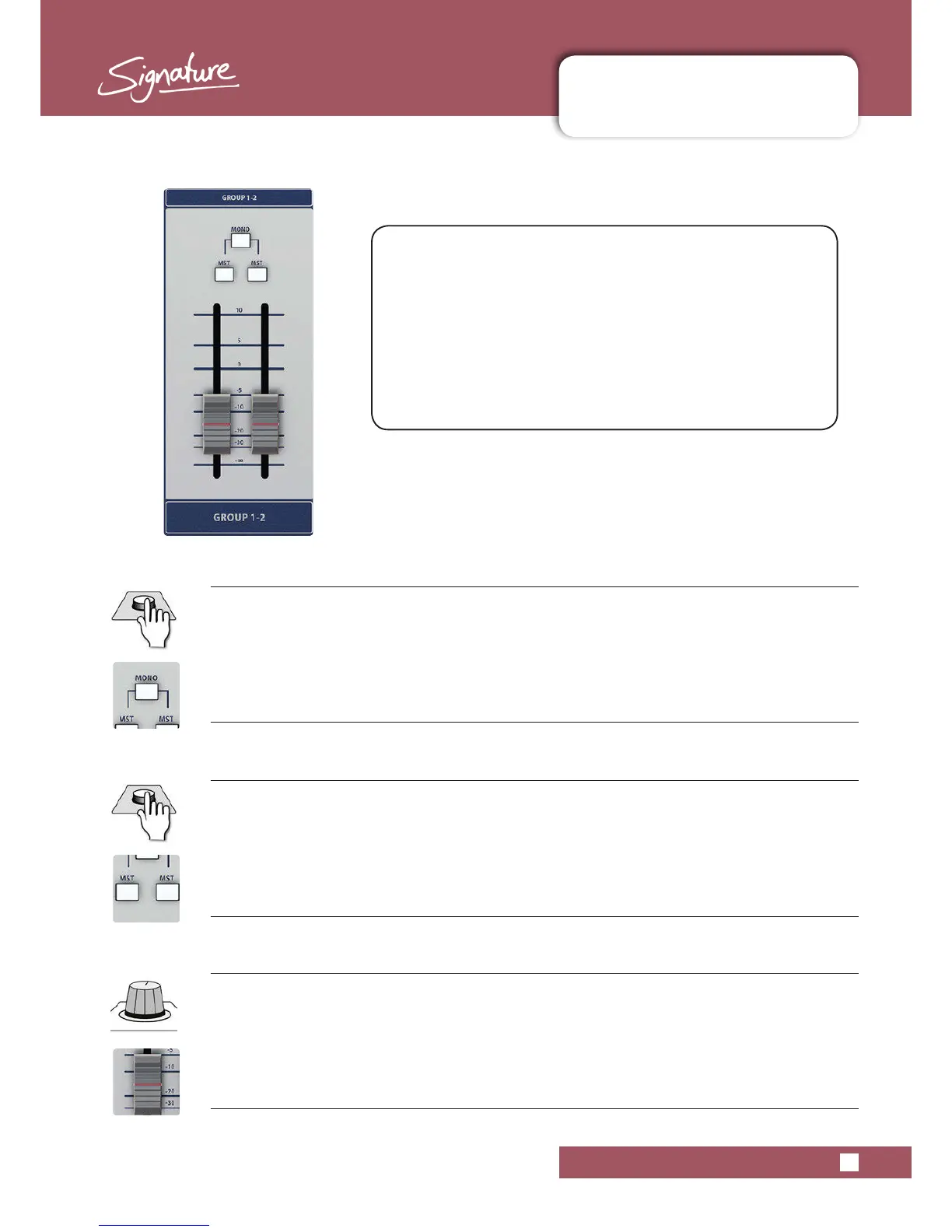

5.3: GROUP MASTER OUTPUT
CHANNEL CONTROLS > GROUP MASTER OUTPUT
5.3: GROUP MASTER OUTPUT
Group Masters control the Group output levels and
routing.
Signature 16, 22, and 22MTK consoles have four group
masters available (post-fader) - with mixes derived
from any input channel routed to GRP 1-2 or 3-4. Input
channel panning or balance positions work across
group pairs - odd-numbered groups are left (1, 3) and
even-numbered groups are right (2, 4).
MST
Route the Group output to the Master Stereo mix in addition to the physical Group Outputs
Groups 1 and 3 go to the Left and Groups 2 and 4 Go to the right unless the Group Master MONO button is
pressed.
MONO
Switch both Group-to-MST outputs to mono
Where a Group is routed to the Master left/right output, that contribution is derived from the sum of both Group
busses. The physical Group outputs remain separate.
FADER
Adjust the overall output level of the Group
Each group has its own fader for overall level control.

SoundCraft Signature 22MTK Specifications

General

Channels	22
Lexicon Effects	Yes
dbx Limiters	Yes, on input channels
Ghost Preamps	Yes
Faders	100mm
Power Supply	Internal
Type	Analog mixer
Phantom Power	Yes
Inputs - Line	22
Computer Connectivity	USB
Aux Sends	5
Inputs - Mic Preamps	16 x XLR
Inputs - Other	2 x RCA
Outputs - Main	2 x XLR, 2 x 1/4"
Outputs - Other	6 x Aux Send, 1 x Headphone
Weight	11.34 kg
USB Interface	24-in/22-out USB audio interface
