2.3: INPUT CHANNEL ROUTING
GETTING STARTED > INPUT CHANNEL ROUTING
2.3: INPUT CHANNEL ROUTING

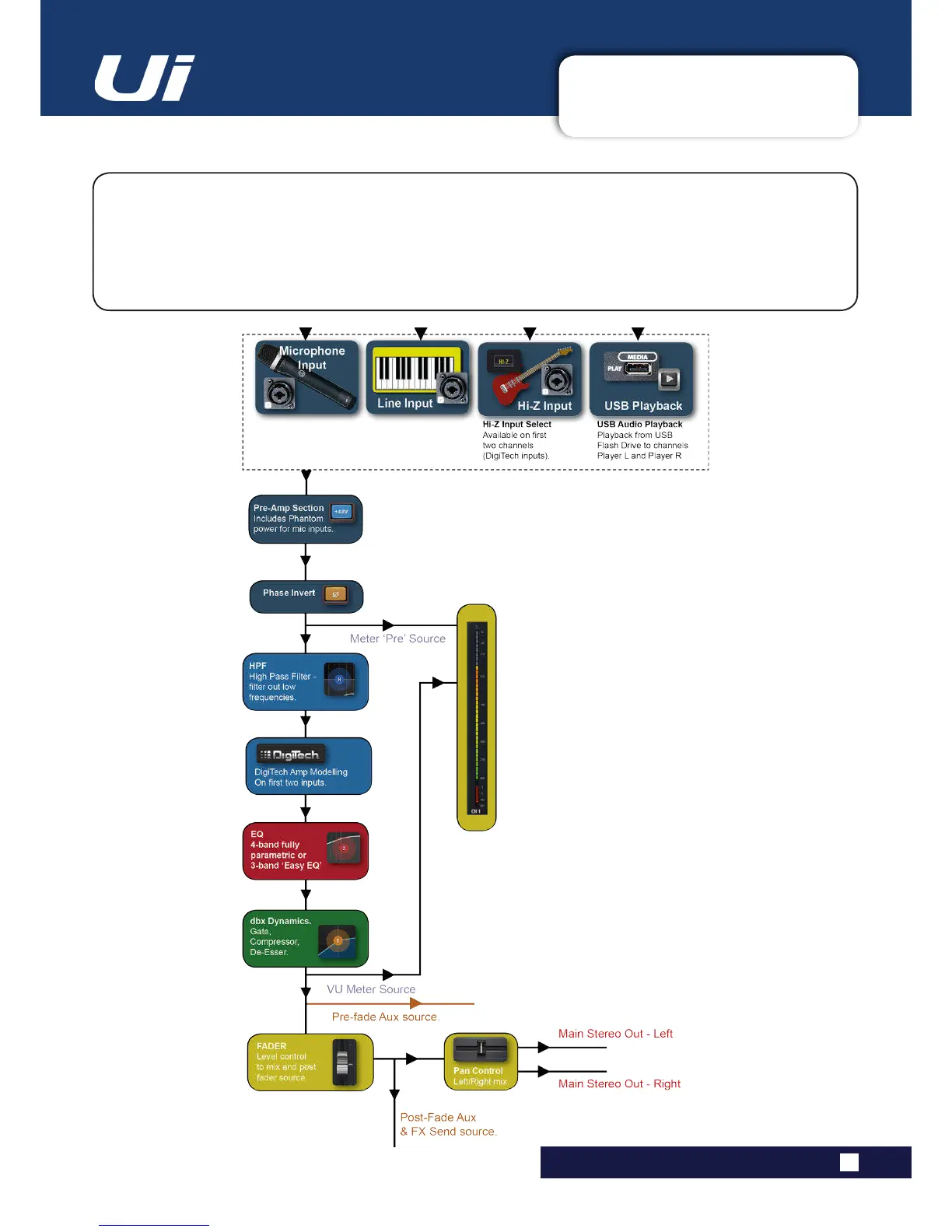

The diagram shows the audio signal path through an input channel - from physical input to bus sends
(Aux, FX, Mix, and so on).
Please note: The entire signal path (except for the hardware pre and output DACs) is clip-free with innite
headroom. It means that internal clipping is not introduced even by driving the EQ/Dyn to the max.
Sufciently reducing the level on the Master Channel strip will get rid of any clipping on the output.
