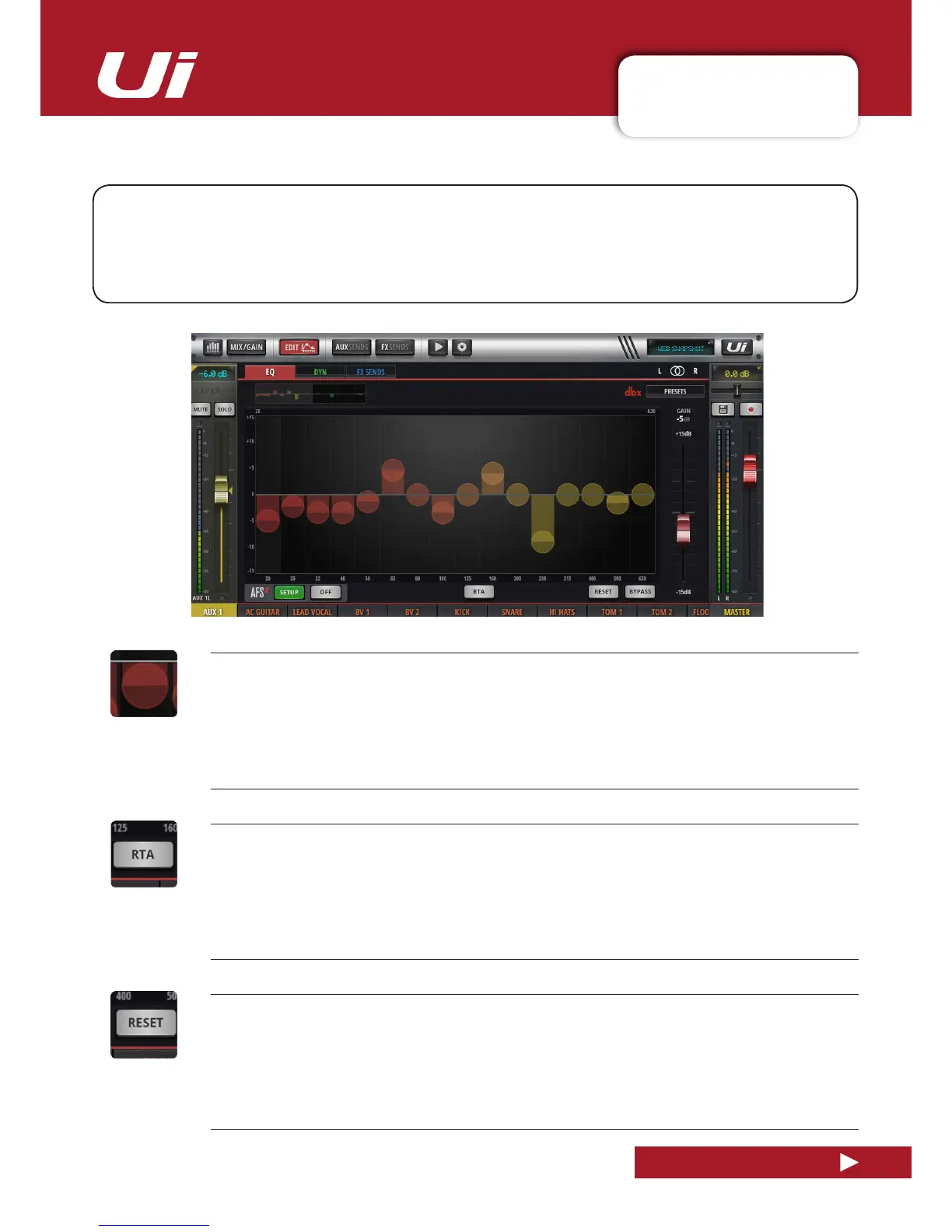

5.3: GRAPHIC EQ
CHANNEL EDIT > GRAPHIC EQ
5.3: GRAPHIC EQ
Ui Aux Send Master channels and the Stereo Master Channel incorporate Graphic EQ (GEQ) instead
of the parametric EQ of the input channels. This includes 31 xed frequency bands (selected in banks
of 16 and 15 with the mini-GEQ graphic) with adjustable boost/cut. In addition, the GEQ screen gives
access to the dbx AFS
2
(Automatic Feedback Suppression) processing. The display also incorporates
an optional Real Time Analyser (RTA), which shows a spectral view of the incoming signal.
GEQ Band ‘Ball’
Adjust the boost/cut in this audio band
Each ball can be dragged up (boost) or down (Cut), or double-tapped/clicked to reset to zero. Switch bands in
two banks of 16 and 15 by selecting the upper or lower portion of the mini GEQ graphic.
RTA
Activate the Real Time Analyser feature
The RTA display shows a real-time spectral view of incoming audio. This is sometimes useful for targeting specific
characteristics with EQ bands quickly.
RESET
Reset the GEQ to ‘at’

SoundCraft Ui16 Specifications

General

Channels	16
Mic Preamps	8
USB Playback	Yes
Built-in Wi-Fi	Yes
XLR Inputs	8
Aux Sends	4
Phantom Power	Yes
Sampling Rate	48 kHz
Bit Depth	24-bit
Ethernet Port	1
Remote Control	Remote control via HTML5-compatible browser
RCA Inputs	2
Control	Control via any device with a web browser
Wi-Fi	Built-in Wi-Fi
Microphone Preamps	8
USB Audio Interface	2-channel recording/playback
Monitor Outputs	2
Aux Outputs	4
Power Supply	Internal
USB	USB playback and recording
Dimensions	177 x 482 x 89 mm
Weight	3.9kg (8.6 lbs)
