SoundCraft Ui16 User Guide

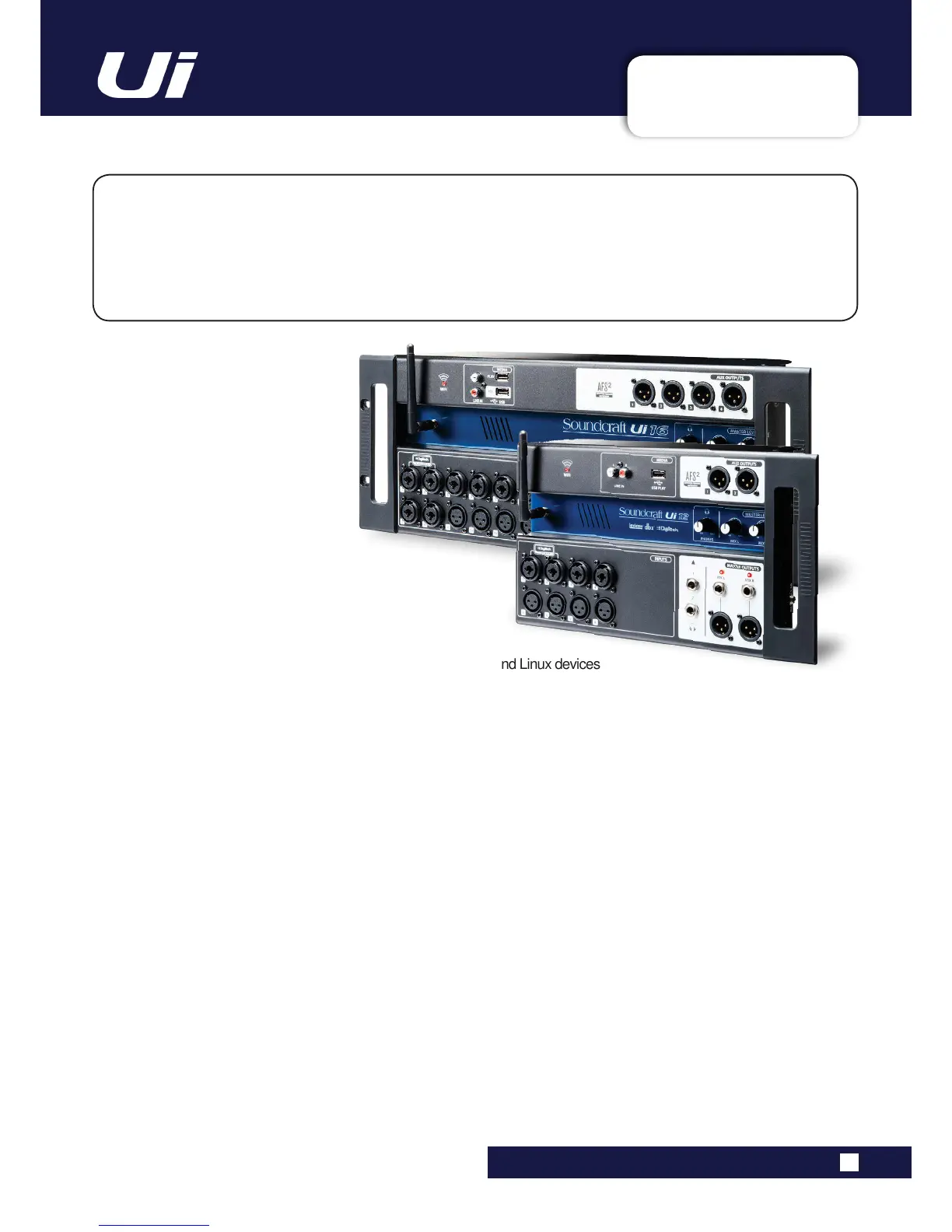

1.0: INTRODUCTION
INTRODUCTION TO Ui
1.0: INTRODUCTION TO SIGNATURE
The Ui Series mixers feature cross-platform compatibility with iOS, Android, Windows, Mac OS, and
Linux devices, and can use up to 10 control devices simultaneously. In addition, the Ui12 and Ui16
each feature built-in HARMAN signal processing from dbx, DigiTech and Lexicon, including dbx AFS
2
,
DigiTech Amp Modeling, and more. Both models feature fully recallable and remote-controlled mic
gain and phantom power, along with 4-band parametric EQ, high-pass lter, compressor, de-esser and
noise gate on input channels.
MAIN FEATURES
• Tablet/PC/Smartphone Controlled Digital Mixer
• Integrated Wi-Fi
• Cross-platform compatibility with iOS, Android, Windows, Mac OS, and Linux devices
• Use up to 10 control devices (tablets, phones, PCs) simultaneously
• Legendary Harman Signal Processing from dbx®, Digitech®, and Lexicon®
• Fully recallable and remote-controlled mic preamps
• 4-band Parametric EQ, High-Pass Filter, Compressor, De-esser and Noise Gate on input channels
• 31-band Graphic EQ, Noise Gate and Compressor on all outputs
• Real-Time Frequency Analyser (RTA) on inputs and outputs
• 3 or 4 dedicated Lexicon® FX effects processors: Reverb, Delay, Chorus, and Delay/Reverb (Ui16).
• Subgroups, Mute Groups, View Groups, and more mixer controls
• Show/Snapshot recall with channel safes and security lockout
• 2-channel USB audio playback and recording
• Floor-ready rugged chassis for live applications
Ui12, Ui16 User Manual
The Ui16 boasts eight XLR combo mic/line inputs, four XLR mic inputs, two channels of Hi- Z/instrument
inputs, as well as a stereo RCA line input. A 2-channel USB media player is included, along with four
balanced XLR Aux outputs, two quarter-inch headphone outputs with level control, plus balanced stereo
XLR and quarter-inch main outputs. Two-channel USB audio playback is compatible with MP3, WAV and
AIFF formats, and 2-channel USB Record direct-to-memory devices functionality is possible as well.
The Ui16 also has an HDMI display connection output.

SoundCraft Ui16 Specifications

General

Channels	16
Mic Preamps	8
USB Playback	Yes
Built-in Wi-Fi	Yes
XLR Inputs	8
Aux Sends	4
Phantom Power	Yes
Sampling Rate	48 kHz
Bit Depth	24-bit
Ethernet Port	1
Remote Control	Remote control via HTML5-compatible browser
RCA Inputs	2
Control	Control via any device with a web browser
Wi-Fi	Built-in Wi-Fi
Microphone Preamps	8
USB Audio Interface	2-channel recording/playback
Monitor Outputs	2
Aux Outputs	4
Power Supply	Internal
USB	USB playback and recording
Dimensions	177 x 482 x 89 mm
Weight	3.9kg (8.6 lbs)
