Soundstream VR-65B - Wiring Connections; Rear Panel Connections; Wiring Harness Functions

3

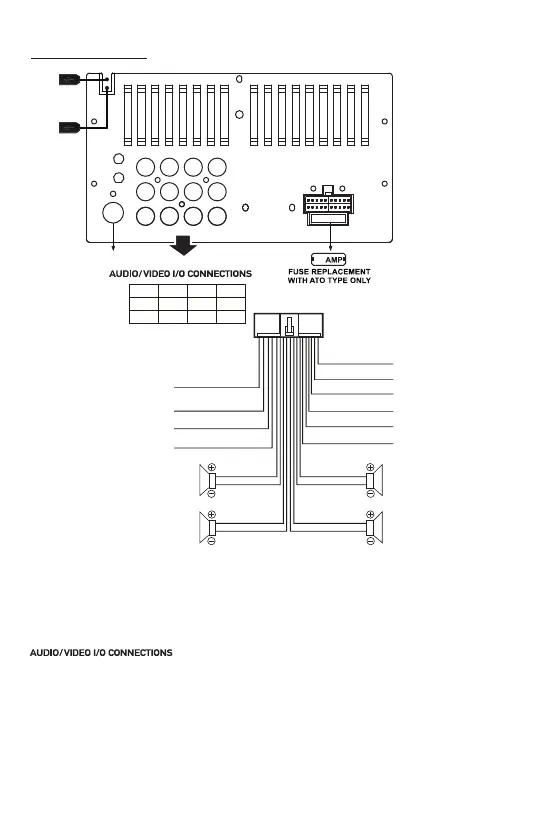

Wiring Connecons:
RED
YELLOW
BLACK
BLUE
ACC
B+
GROUND
POWER ANTENNA
FRONT LEFT
CHANNEL SPEAKER
REAR LEFT
CHANNEL SPEAKER
CAM: Rear Camera Video input Socket (Yellow)
Sub-out2: Subwoofer Output Socket 2 (Green)
Sub-out1: Subwoofer Output Socket 1 (Green)
VIN: Video input Socket (Yellow)
LIN: Left CH Audio input Socket (White)
RIN: Right CH Audio input Socket (Red)
V-OUT1: Video Output Socket 1 (Yellow)
RL: Rear Left CH RCA Output Socket (White)
RR: Rear Right CH RCA Output Socket (Red)
V-OUT2: Video Output Socket 2 (Yellow)
FL: Front Left CH RCA Output Socket (White)
FR: Front Right CH RCA Output Socket (Red)
WHITE
WHITE/BLACK
GREEN
GREEN/BLACK
SWC - GND
SWC - 1
SWC - 2
REVERSE (+)
PARKING BRAKE (B-)
ILLUMINATION (+)
FRONT RIGHT
CHANNEL SPEAKER
REAR RIGHT
CHANNEL SPEAKER
ORANGE
BROWN
BROWN / WHITE
BLACK
PINK
ORANGE / BLACK
GRAY
GRAY / BLACK
VIOLET
VIOLET/BLACK
Note: the ground connecon cable (parking brake B-) must be connected in
order for pictures to be played back to the monitor. If the cable has not been
correctly connected, warning message appears on the monitor.
10
RADIO ANTENNA JACK
10A
USB
MEDIA
(Black)
USB
CHARGER
(Red)
CAM
Sub-out2
Sub-out1
VIN
LIN
RIN
V-OUT1
RL
RR
V-OUT2
FL
FR
